Product name : 404 to 690nm Visible Laser Diodes
Description :
● Output Powers from 2.5 mW to 1600 mW
● Center Wavelengths Available from 404 nm to 690 nm

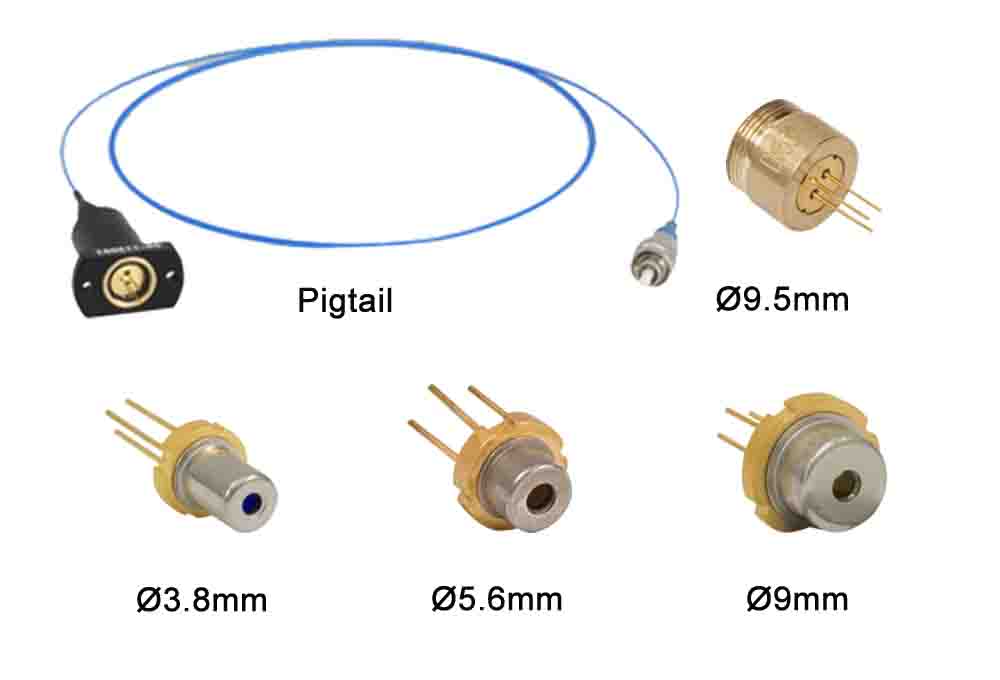

● Various Packages Available: TO Can and TO Pigtails

The specifications provided on this page are for reference only. Actual product specifications are subject to the manufacturer’s latest official information.
Specification
Model Description Wavelength Output Power Spatial Mode Package Price(USD) Quantity
0 UL404P400M VIS Laser Diode 404 nm 400 mW Multimode Ø5.6 mm -
1 ULP405-SF10 VIS Laser Diode 405 nm 10 mW Single Mode Ø5.6 mm, SM Pigtail -
2 UL405P20 VIS Laser Diode 405 nm 20 mW Single Mode Ø5.6 mm -
3 UDL5146-101S VIS Laser Diode 405 nm 40 mW Single Mode Ø5.6 mm -
4 ULP405-MF300 VIS Laser Diode 405 nm 300 mW Multimode Ø5.6 mm, MM Pigtail -
5 UL405G1 VIS Laser Diode 405 nm 1000 mW Multimode Ø9 mm -
6 ULP450-SF15 VIS Laser Diode 450 nm 15 mW Single Mode Ø9 mm, SM Pigtail -
7 UPL450B VIS Laser Diode 450 nm 80 mW Single Mode Ø3.8 mm -
8 UL450P1600MM VIS Laser Diode 450 nm 1600 mW Multimode Ø5.6 mm -
9 UL473P100 VIS Laser Diode 473 nm 100 mW Single Mode Ø5.6 mm -
10 ULP488-SF20 VIS Laser Diode 488 nm 20 mW Single Mode Ø5.6 mm, SM Pigtail -
11 UL488P60 VIS Laser Diode 488 nm 60 mW Single Mode Ø5.6 mm -
12 ULP520-SF15 VIS Laser Diode 520 nm 15 mW Single Mode Ø9 mm, SM Pigtail -
13 UL520P50 VIS Laser Diode 520 nm 45 mW Single Mode Ø5.6 mm -
14 UPL520 VIS Laser Diode 520 nm 50 mW Single Mode Ø3.8 mm -
15 ULP520-MF100 VIS Laser Diode 520 nm 100 mW Multimode Ø5.6 mm, MM Pigtail -
16 UDJ532-10 DPSS Lasers 532 nm 10 mW Single Mode Ø9.5 mm (non-standard) -
17 UDJ532-40 DPSS Lasers 532 nm 40 mW Single Mode Ø9.5 mm (non-standard) -
18 ULP633-SF50 VIS Laser Diode 633 nm 50 mW Single Mode Ø5.6 mm, SM Pigtail -
19 UHL63163DG VIS Laser Diode 633 nm 100 mW Single Mode Ø5.6 mm -
20 ULPS-635-FC VIS Laser Diode 635 nm 2.5 mW Single Mode Ø9.5 mm, SM Pigtail -
21 ULPS-PM635-FC VIS Laser Diode 635 nm 2.5 mW Single Mode Ø9.5 mm, PM Pigtail -
22 UL635P5 VIS Laser Diode 635 nm 5 mW Single Mode Ø5.6 mm -
23 UHL6312G VIS Laser Diode 635 nm 5 mW Single Mode Ø9 mm -
24 ULPM-635-SMA VIS Laser Diode 635 nm 8 mW Multimode Ø9 mm, MM Pigtail -
25 ULP635-SF8 VIS Laser Diode 635 nm 8 mW Single Mode Ø5.6 mm, SM Pigtail -
26 UHL6320G VIS Laser Diode 635 nm 10 mW Single Mode Ø9 mm -
27 UHL6322G VIS Laser Diode 635 nm 15 mW Single Mode Ø9 mm -
28 UL637P5 VIS Laser Diode 637 nm 5 mW Single Mode Ø5.6 mm -
29 ULP637-SF50 VIS Laser Diode 637 nm 50 mW Single Mode Ø5.6 mm, SM Pigtail -
30 ULP637-SF70 VIS Laser Diode 637 nm 70 mW Single Mode Ø5.6 mm, SM Pigtail -
31 UHL63142DG VIS Laser Diode 637 nm 100 mW Single Mode Ø5.6 mm -
32 UHL63133DG VIS Laser Diode 637 nm 170 mW Single Mode Ø5.6 mm -
33 UHL6388MG VIS Laser Diode 637 nm 250 mW Multimode Ø5.6 mm -
34 UL638P040 VIS Laser Diode 638 nm 40 mW Single Mode Ø5.6 mm -
35 UL638P150 VIS Laser Diode 638 nm 150 mW Single Mode Ø3.8 mm -
36 UL638P200 VIS Laser Diode 638 nm 200 mW Single Mode Ø5.6 mm -
37 UL638P700M VIS Laser Diode 638 nm 700 mW Multimode Ø5.6 mm -
38 UHL6358MG VIS Laser Diode 639 nm 10 mW Single Mode Ø5.6 mm -
39 UHL6323MG VIS Laser Diode 639 nm 30 mW Single Mode Ø5.6 mm -
40 UHL6362MG VIS Laser Diode 640 nm 40 mW Single Mode Ø5.6 mm -
41 ULP642-SF20 VIS Laser Diode 642 nm 20 mW Single Mode Ø5.6 mm, SM Pigtail -
42 ULP642-PF20 VIS Laser Diode 642 nm 20 mW Single Mode Ø5.6 mm, PM Pigtail -
43 UHL6364DG VIS Laser Diode 642 nm 60 mW Single Mode Ø5.6 mm -
44 UHL6366DG VIS Laser Diode 642 nm 80 mW Single Mode Ø5.6 mm -
45 UHL6385DG VIS Laser Diode 642 nm 150 mW Single Mode Ø5.6 mm -
46 UL650P007 VIS Laser Diode 650 nm 7 mW Single Mode Ø5.6 mm -
47 ULPS-660-FC VIS Laser Diode 658 nm 7.5 mW Single Mode Ø5.6 mm, SM Pigtail -
48 ULP660-SF20 VIS Laser Diode 658 nm 20 mW Single Mode Ø5.6 mm, SM Pigtail -
49 ULPM-660-SMA VIS Laser Diode 658 nm 22.5 mW Multimode Ø5.6 mm, MM Pigtail -
50 UHL6501MG VIS Laser Diode 658 nm 30 mW Single Mode Ø5.6 mm -
51 UL658P040 VIS Laser Diode 658 nm 40 mW Single Mode Ø5.6 mm -
52 ULP660-SF40 VIS Laser Diode 658 nm 40 mW Single Mode Ø5.6 mm, SM Pigtail -
53 ULP660-SF60 VIS Laser Diode 658 nm 60 mW Single Mode Ø5.6 mm, SM Pigtail -
54 UHL6544FM VIS Laser Diode 660 nm 50 mW Single Mode Ø5.6 mm -
55 ULP660-SF50 VIS Laser Diode 660 nm 50 mW Single Mode Ø5.6 mm, SM Pigtail -
56 UHL6545MG VIS Laser Diode 660 nm 120 mW Single Mode Ø5.6 mm -
57 UL660P120 VIS Laser Diode 660 nm 120 mW Single Mode Ø5.6 mm -
58 ULPS-675-FC VIS Laser Diode 670 nm 2.5 mW Single Mode Ø9 mm, SM Pigtail -
59 UHL6748MG VIS Laser Diode 670 nm 10 mW Single Mode Ø5.6 mm -
60 UHL6714G VIS Laser Diode 670 nm 10 mW Single Mode Ø9 mm -
61 UHL6756MG VIS Laser Diode 670 nm 15 mW Single Mode Ø5.6 mm -
62 USLD1332V VIS Laser Diode 670 nm 500 mW Multimode Ø9 mm -
63 ULP685-SF15 VIS Laser Diode 685 nm 15 mW Single Mode Ø5.6 mm, SM Pigtail -
64 UHL6750MG VIS Laser Diode 685 nm 50 mW Single Mode Ø5.6 mm -
65 UHL6738MG VIS Laser Diode 690 nm 30 mW Single Mode Ø5.6 mm -
