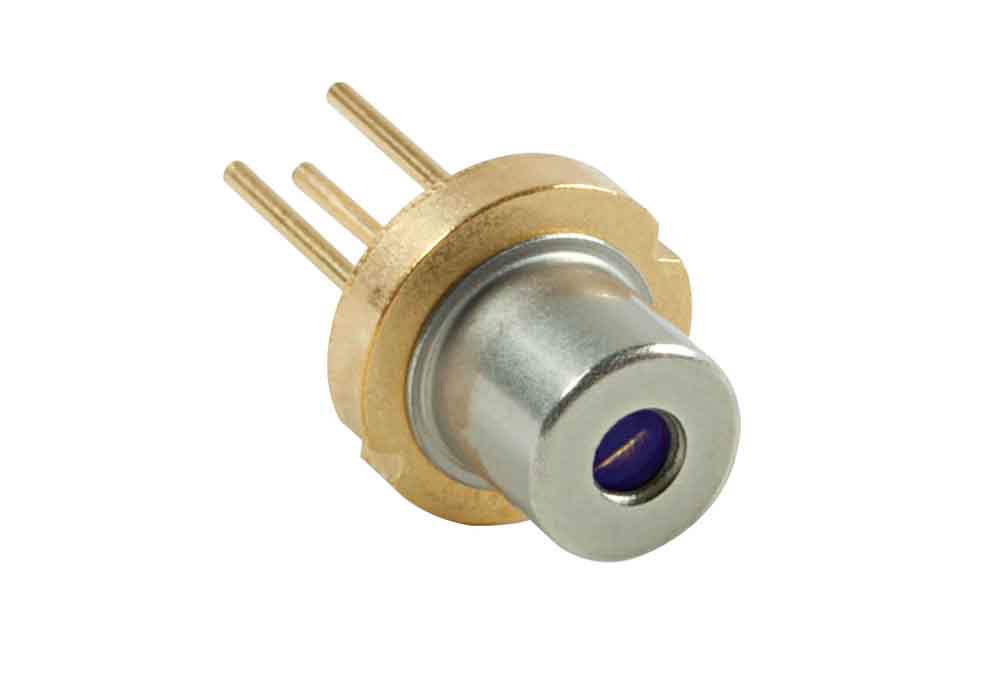

ULP660-SF20 VIS Laser Diode

ULP660-SF20

Model：ULP660-SF20
Description：

Price(USD)：$0

Specification Content

Model No	ULP660-SF20
Wavelength	658 nm
Output Power	20 mW
Operating Current	80 mA
Operating Voltage	2.6 V
Beam Divergence - Parallel	-
Beam Divergence - Perpendicular	-
Spatial Mode	Single Mode
Package	Ø5.6 mm, SM Pigtail
PIN Code	A

The specifications provided on this page are for reference only. Actual product specifications are subject to the manufacturer’s latest official information.
