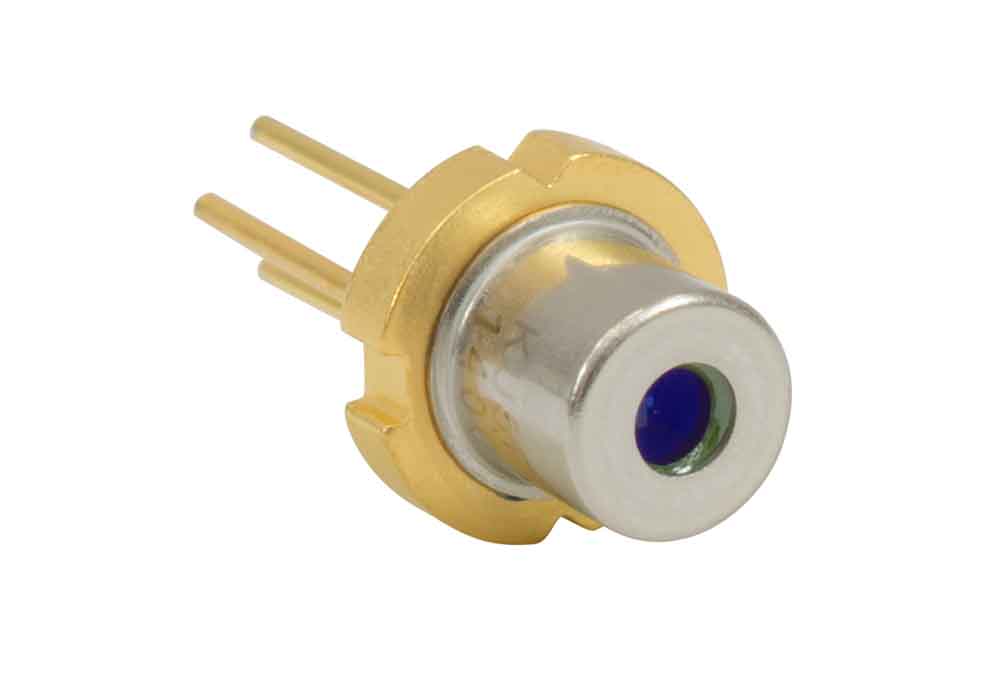

UL635P5 VIS Laser Diode

UL635P5

Model：UL635P5
Description：

Price(USD)：$0

Specification Content

Model No	UL635P5
Wavelength	635 nm
Output Power	5 mW
Operating Current	30 mA
Operating Voltage	<2.7 V
Beam Divergence - Parallel	8°
Beam Divergence - Perpendicular	32°
Spatial Mode	Single Mode
Package	Ø5.6 mm
PIN Code	A

The specifications provided on this page are for reference only. Actual product specifications are subject to the manufacturer’s latest official information.
