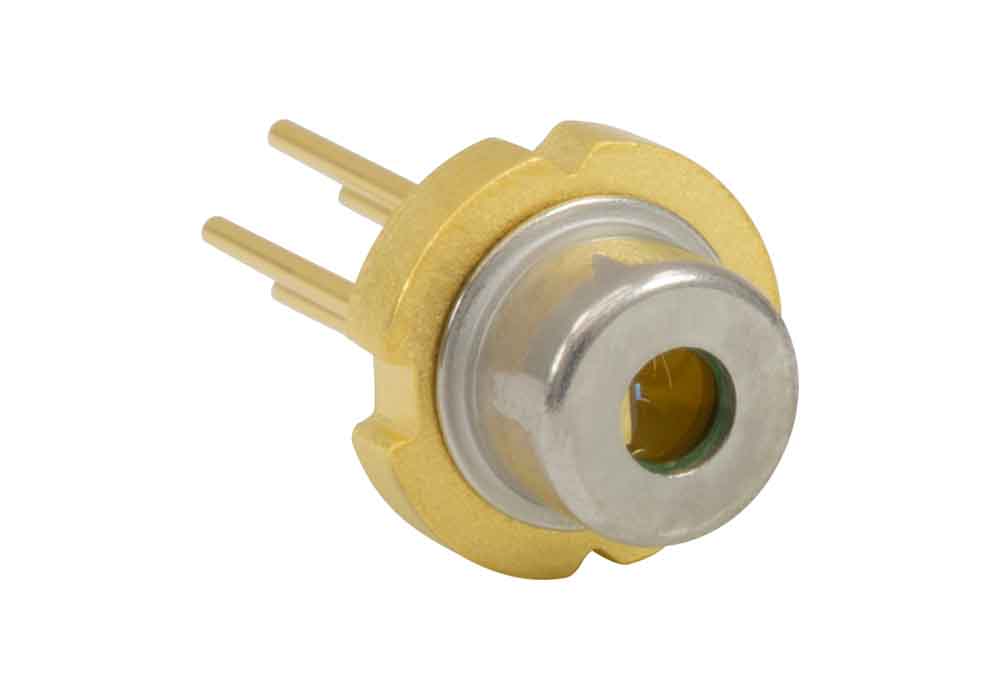

UL488P60 VIS Laser Diode

UL488P60

Model：UL488P60
Description：

Price(USD)：$0

Specification Content

Model No	UL488P60
Wavelength	488 nm
Output Power	60 mW
Operating Current	75 mA
Operating Voltage	6.8 V
Beam Divergence - Parallel	7
Beam Divergence - Perpendicular	23
Spatial Mode	Single Mode
Package	Ø5.6 mm
PIN Code	B

The specifications provided on this page are for reference only. Actual product specifications are subject to the manufacturer’s latest official information.
