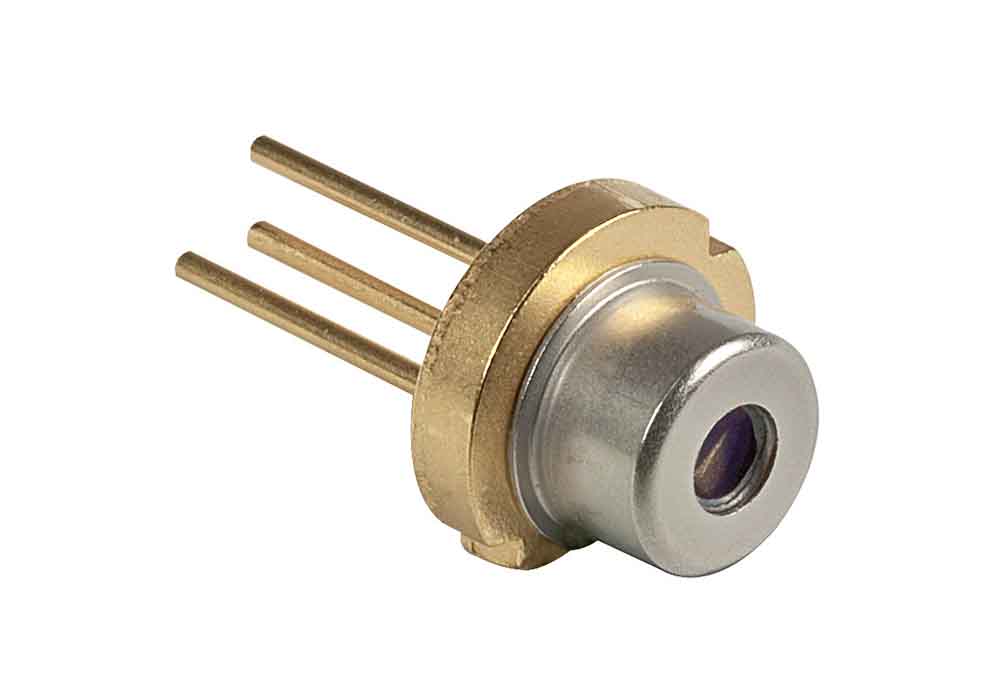

UHL6545MG VIS Laser Diode

UHL6545MG

Model：UHL6545MG
Description：

Price(USD)：$0

Specification Content

Model No	UHL6545MG
Wavelength	660 nm
Output Power	120 mW
Operating Current	170 mA
Operating Voltage	2.45 V
Beam Divergence - Parallel	10°
Beam Divergence - Perpendicular	17°
Spatial Mode	Single Mode
Package	Ø5.6 mm
PIN Code	H

The specifications provided on this page are for reference only. Actual product specifications are subject to the manufacturer’s latest official information.
