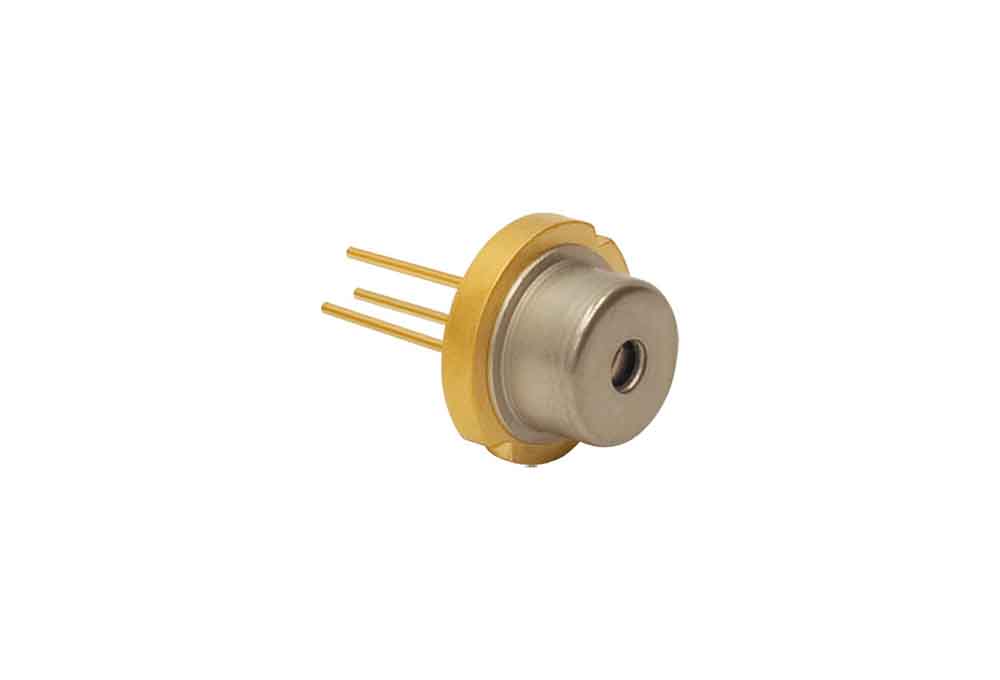

UHL6366DG VIS Laser Diode

UHL6366DG

Model：UHL6366DG
Description：

Price(USD)：$0

Specification Content

Model No	UHL6366DG
Wavelength	642 nm
Output Power	80 mW
Operating Current	155 mA
Operating Voltage	2.5 V
Beam Divergence - Parallel	10°
Beam Divergence - Perpendicular	21°
Spatial Mode	Single Mode
Package	Ø5.6 mm
PIN Code	A

The specifications provided on this page are for reference only. Actual product specifications are subject to the manufacturer’s latest official information.
