UL404P400M VIS Laser Diode

UL404P400M

Model：UL404P400M
Description：

Price(USD)：$0

Specification Content

Model No	UL404P400M
Wavelength	404 nm
Output Power	400 mW
Operating Current	370 mA
Operating Voltage	4.9 V
Beam Divergence - Parallel	13° (1/e2)
Beam Divergence - Perpendicular	42° (1/e2)
Spatial Mode	Multimode

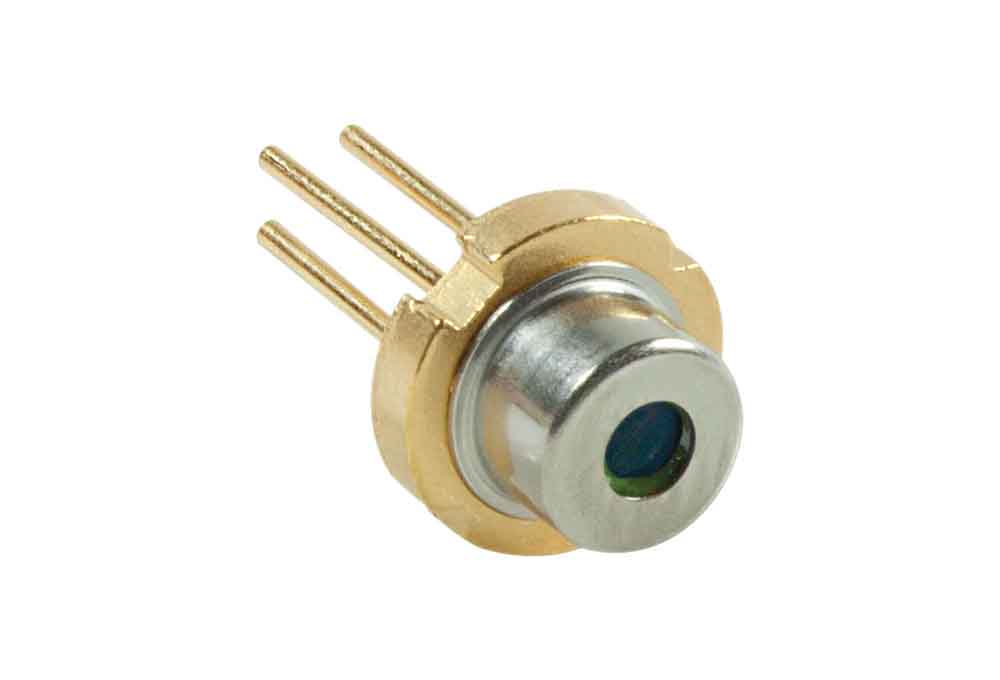

Package	Ø5.6 mm
PIN Code	G

The specifications provided on this page are for reference only. Actual product specifications are subject to the manufacturer’s latest official information.
