M0828-MPW3 6 Megapixel Ultra Low Distortion Lens

產品型號：M0828-MPW3
產品說明：

價格(NTD)：$0

產品說明

Model		M0828-MPW3
Focal Length		8mm
Max. Aperture Ratio		1:2.8
Max. Image Format		8.8mm x 6.6mm (Φ11mm)
Operation Range	Iris	F2.8 - F16.0
Operation Range	Focus	0.1m - Inf.
Control	Iris	Manual
Control	Focus	Manual
Object Dimension at M.O.D	2/3 Type	122.2 x 90.8 mm
	1/1.8 Type	98.2 x 75.8 mm
	1/2.5 Type	65.6 x 49.0 mm
Angle of View	D	2/3 Type	68.5°	1/1.8 Type	57.7°	1/2.5 Type	47.2°
	H		57°		47.3°		38.5°
	V		44.2°		37.5°		29.4°
Operating Temperature		-10° C ~ +50° C
Effective Lens Aperture	Front	Φ21.2mm
Effective Lens Aperture	Rear	Φ21.2mm
Distortion		2/3 Type	-1.8%(y=5.5)	1/1.8 Type	-1.68%(y=4.5)	1/2.5 Type	-1.28%(y=3.55)
Back Focal Length		9.2mm
Flange Back Length		17.526mm
Mount		C-Mount
Filter Size		M32 P=0.5mm
Weight		58g
Dimensions		Φ32mm x 35.5mm

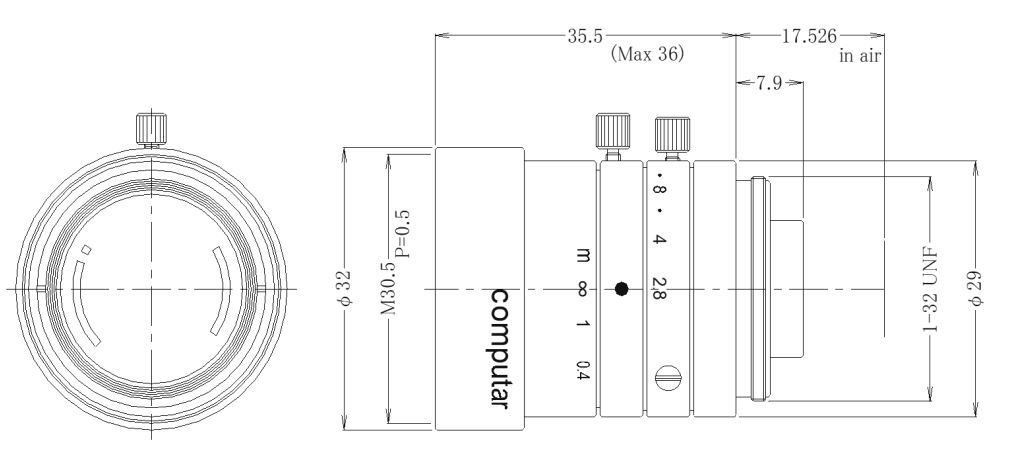

Dimensions
