Our Broadband Light Sources
For many applications that use spectroscopy or hyperspectral imaging, for example, the spectrum of white light sources is not sufficient. We rely on the latest broadband LEDs and laser-driven plasma light sources.

產品規格

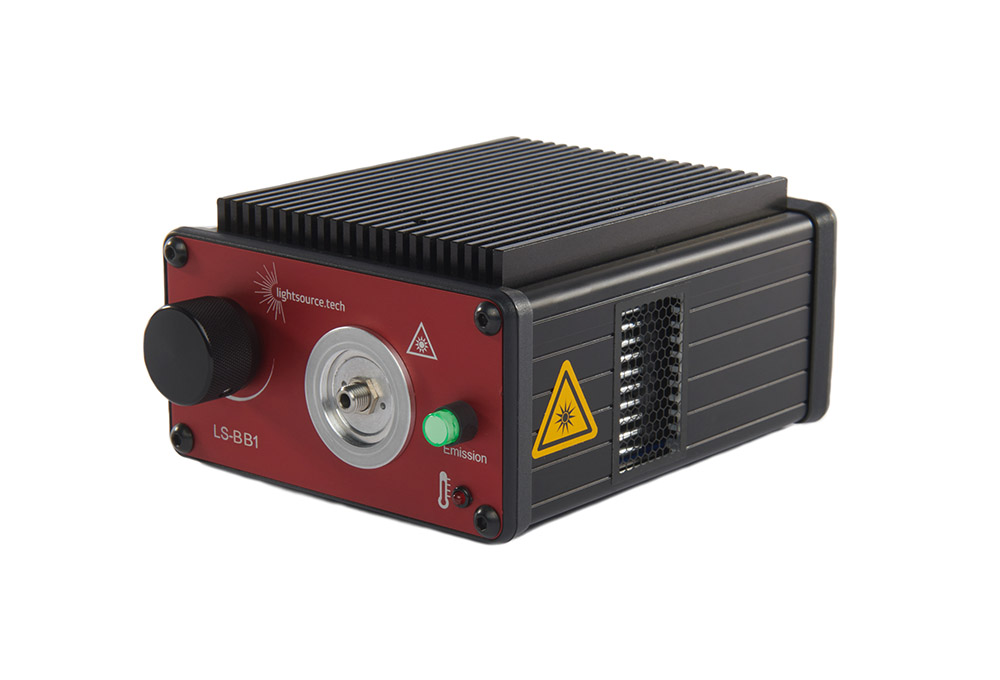

LS-BB1 Broadband LED Light Source   Fiber Coupler for laser pumped plasma light source XWS-30

  • Wavelength range from VIS to NIR
  • Alternative to halogen light sources
  • For spectroscopic applications

With our LS-BB1 we have developed a fiber-coupled broadband LED light source. Its wavelength range of 420 bis 900 nm allows a wide variety of spectroscopic applications. By covering a broad spectrum from VIS to NIR, this is a powerful alternative to halogen light sources. The high luminance of the single LED chip and efficient coupling into multimode fibers of up to 1 mm give rise to flexibility and a bright point light source.

The LS-BB1 is light and compact, making it simple to integrate into experiment set-ups. Its lifetime of over 10,000 hours is due to the well-thought-out thermic design of the broadband LED light source.


  • Point Light Source with extremely high brightness
  • Spectrum 450 – 700 nm
  • Strobe and trigger mode

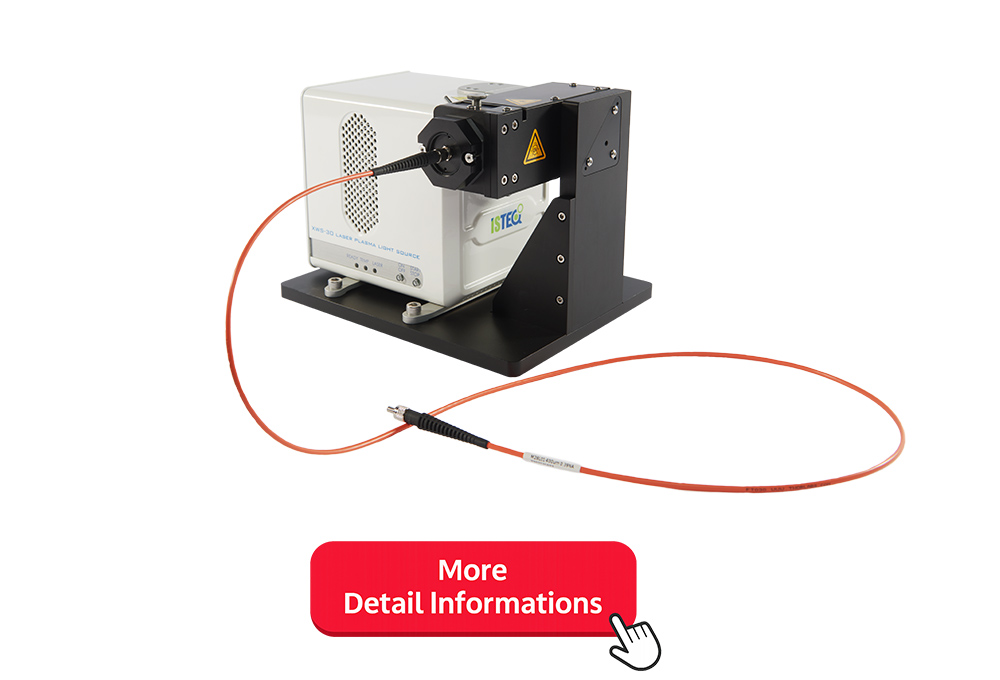

Fiber coupler for the laser-pumped light source XWS-30 from ISTEQ

Free beam becomes broadband point light: The XWS-30 and the fiber coupler

Thanks to its extremely high luminance and very large wavelength range from 190 nm to 2200 nm, the laser-pumped XWS-30 from ISTEG is a powerful free beam light source.
To bring you the many advantages of the XWS-30 in the form of a point light source, we have developed a fiber coupler that couples the free beam of the XWS-30 efficiently into a multimode fiber.

The high reflectance of the off-axis ellipsoidal mirror allows almost loss-free transmission of the plasma and offers you the complete spectrum of the XWS-30 from DUV to NIR.
