Tunable Light Sources

• Wavelength range 190 nm – 5,5 µm
• Plug and play optical gratings
• Use any fiber coupled light source

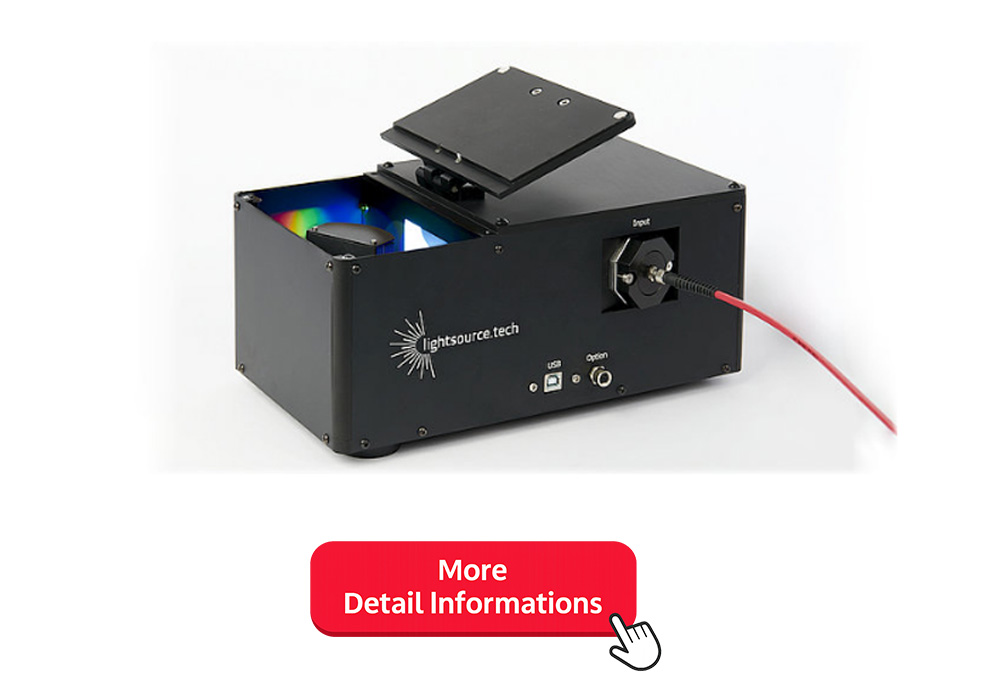

The Monochromator-F: High throughput from UV to MIR

Flexible fiber-to-fiber monochromator

With our Monochromator-F we have developed a versatile device that offers you clean spectral isolation in a wavelength range from 190 nm to 5.5 µm.

The high-quality fiber-to-fiber coupling of the monochromator allows flexible integration into all systems, while the design of the optical gratings and their mounts enable easy and fast change.

• Wavelength range from 340 nm to 2,0 µm
• Cost effective solution for medium power applications
• Ideal for spectroscopy and sensor testing

A compact tunable light source with medium output power

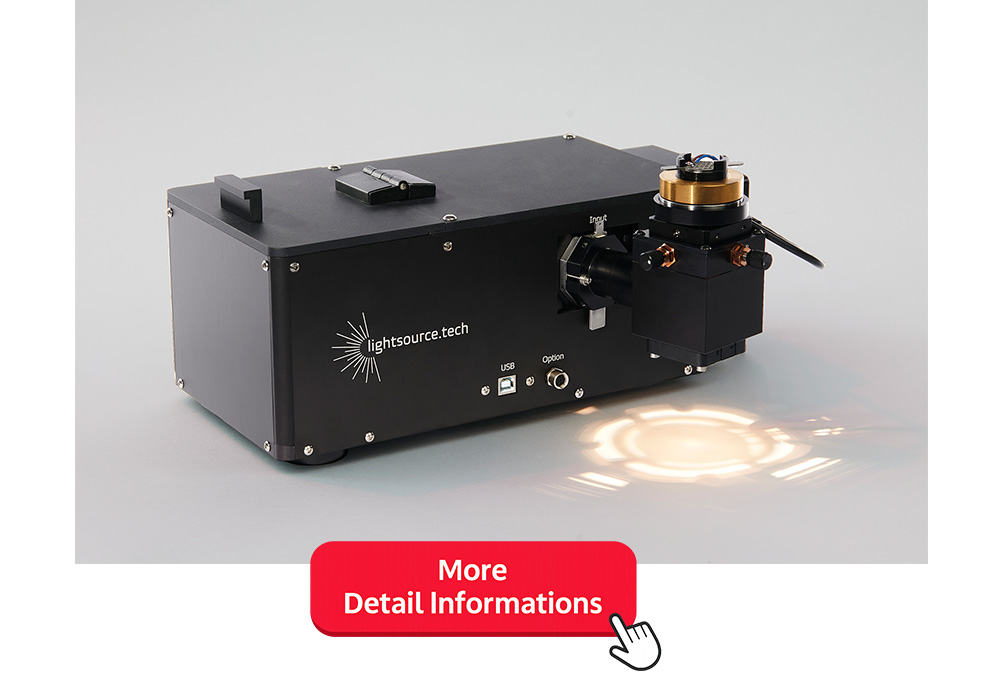

The Monochromator-F with integrated halogen lamp

Halogen lamps seem obsolete at first glance. However, they are still an excellent choice for many technical applications that require a continuous spectrum in the visual and near-infrared wavelength range.

We have combined our proven Monochromator-F with a halogen lamp to realize a compact tunable light source for the wavelength range 340 – 2000nm, the Monochromator-H. The very smooth and consistent spectrum of a halogen lamp makes it the ideal solution when monochromatic light with a freely selectable wavelength in the UV, VIS and NIR is needed.

• All wavelengths from DUV to NIR
• Developed for the laser-pumped XWS-30 light source from ISTEQ
• Plasma as entrance slit

A monochromator for the laser-pumped light source XWS-30 from ISTEQ

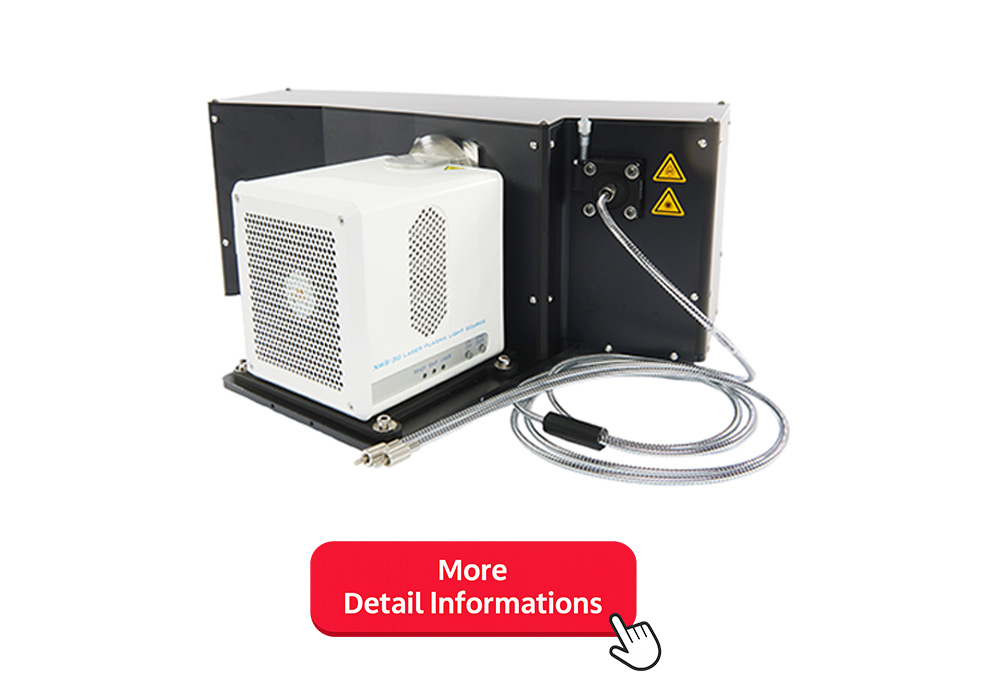

The Hyperchromator and the XWS-30: A high-performance team

In order to achieve the best results, a monochromator requires a powerful light source that covers a large spectrum. The laser-pumped XWS-30 light source from the ISTEQ company in Eindhoven (Netherlands) fulfils these demands with extremely high luminance and a wavelength range from 190 bis 2200 nm, making it also the most suitable choice for generating monochromatic light in the DUV and UV range.

We have jointly developed the Hyperchromator together with our partner Mountain Photonics (Landsberg am Lech, Germany) especially for the XWS-30. In doing so have created a tunable light source that uses the high luminance and the large wavelength range of the laser-pumped light source optimally for the isolation of narrow bandwidth. The motorized dual grating changer of the Hyperchromator and control via a USB interface make work with the Hyperchromator simple and uncomplicated.

The Hyperchromator is exclusively distributed by Mountain Photonics and their worldwide partner network. We at lightsource.tech will be happy to answer your technical questions and forward your inquiry. Or you may consider contacting Mountain Photonics directly.
