Unice M3514-MP2 2/3" Megapixel Lens

產品型號：M3514-MP
產品說明：

價格(NTD)：$0

產品說明

Model		M3514-MP
Focal Length		35mm
Max. Aperture Ratio		1:1.4
Max. Image Format		8.8mm x 6.6mm (Φ11mm)
Operation Range	Iris	F1.4 - F16C
Operation Range	Focus	0.3m - Inf.
Control	Iris	Manual
Control	Focus	Manual
Object Dimension at M.O.D		8.1(H)cm x 6(V)cm 2/3"
Operating Temperature		-10° C ~ +50° C
Angle of View	D	2/3"	17.3°	1/2"	12.6°
	H		13.9°		10.1°
	V		10.4°		7.6°
Distortion		2/3"	-0.8% (y=5.5)	1/2"	-0.4% (y=4.0)
Back Focal Length		17.1mm (WD=400mm)
Flange Back Length		17.526mm
Mount		C-Mount
Filter Size		M30.5 P=0.5mm
Weight		87g
Dimensions		Φ33.5mm x 38.2mm

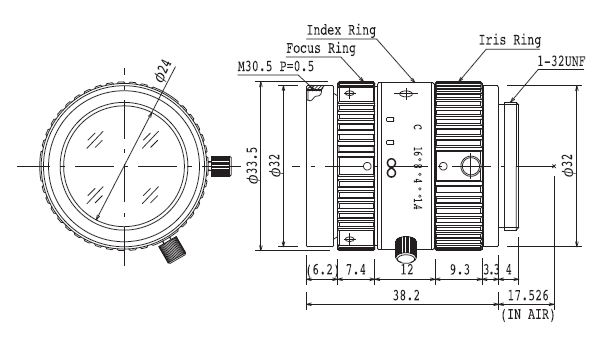

Dimensions
