Unice MLH-10X Macro Zoom Lens

產品型號：MLH-10X
產品說明：

● Wide zoom range for general inspection, documentation, and visual aid applications

價格(NTD)：$0

產品說明

Model		MLH-10X
Optical Magnification		0.084X - 0.84X
Max. Magnification		0.084mm - 0.84mm
Max. Aperture Ratio		1:5.6
Max. Image Format		6.4mm x 4.8mm (Φ8mm)
Operation Range	Iris	F5.6 - F32C
Operation Range	Focus	0.15m - 0.45m
Control	Iris	Manual
	Focus	Manual
	Zoom	Manual
Angle of View	D	1/2"	21.6° - 4.5°	1/3"	17.0° - 3.3°	2/3"	13.0° - 2.5°
	H		18.0° - 3.6°		13.8° - 2.7°		10.6° - 2.0°
	V		13.8° - 2.7°		10.6° - 2.0°		8.0° - 1.5°
Operating Temperature		-10° C ~ +50° C
Distortion		1/2"	+0.9% at 0.084X(y=4.0)
Distortion		1/2"	+1.6% at 0.84X(y=4.0)
Back Focal Length		23.29mm
Flange Back Length		17.526mm
Mount		C-Mount
Filter Size		M46 P=0.75mm
Weight		260g
Dimensions		Φ48mm x 98.5mm

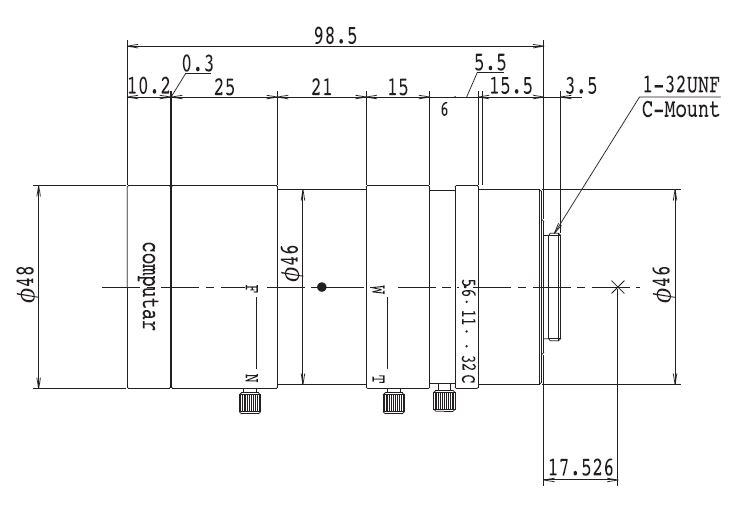

Dimensions
