1. 材料微加工
2. 眼科
3. 半導體和電子
4. 顯示器製造
5. 電池製造
1. 極其堅固和穩定
2. 可調重複率、脈衝持續時間、功率
3. 高脈衝能量和乾淨的脈衝形狀
4. 被動風冷
5. 免維護和交鑰匙
| Specifications |
Model |
| |
Indylit 10 |
Indylit 10 SH |

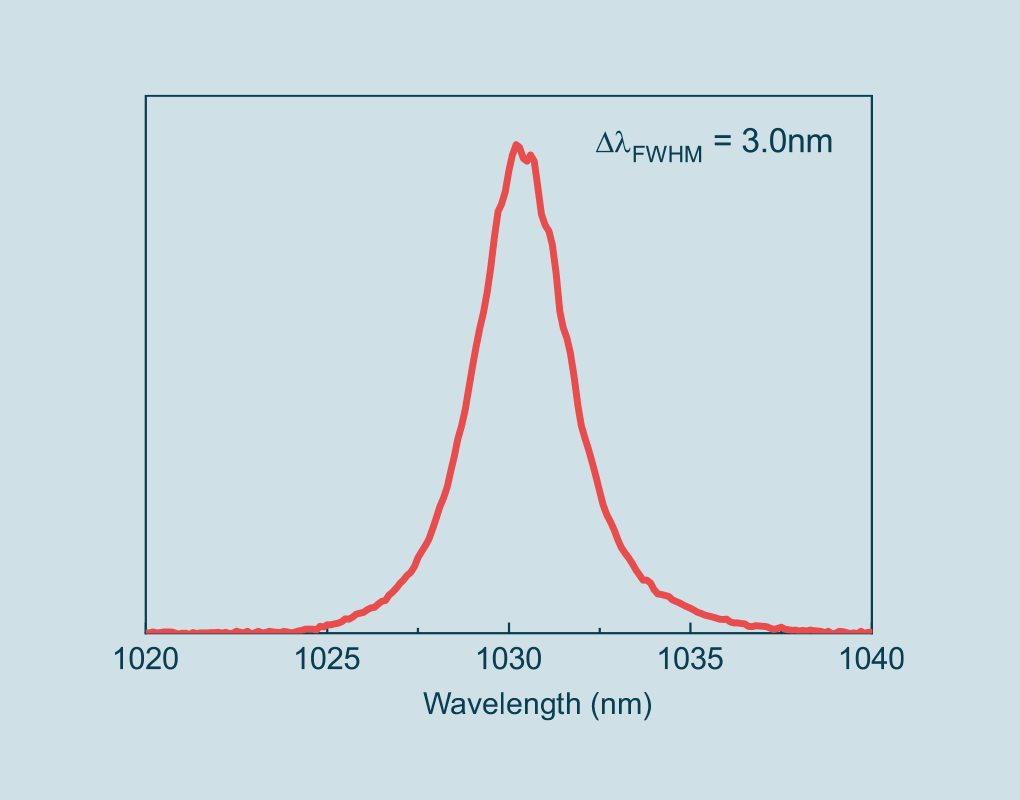

| Central wavelength |
1030 ± 2 nm |
515 ± 1 nm |

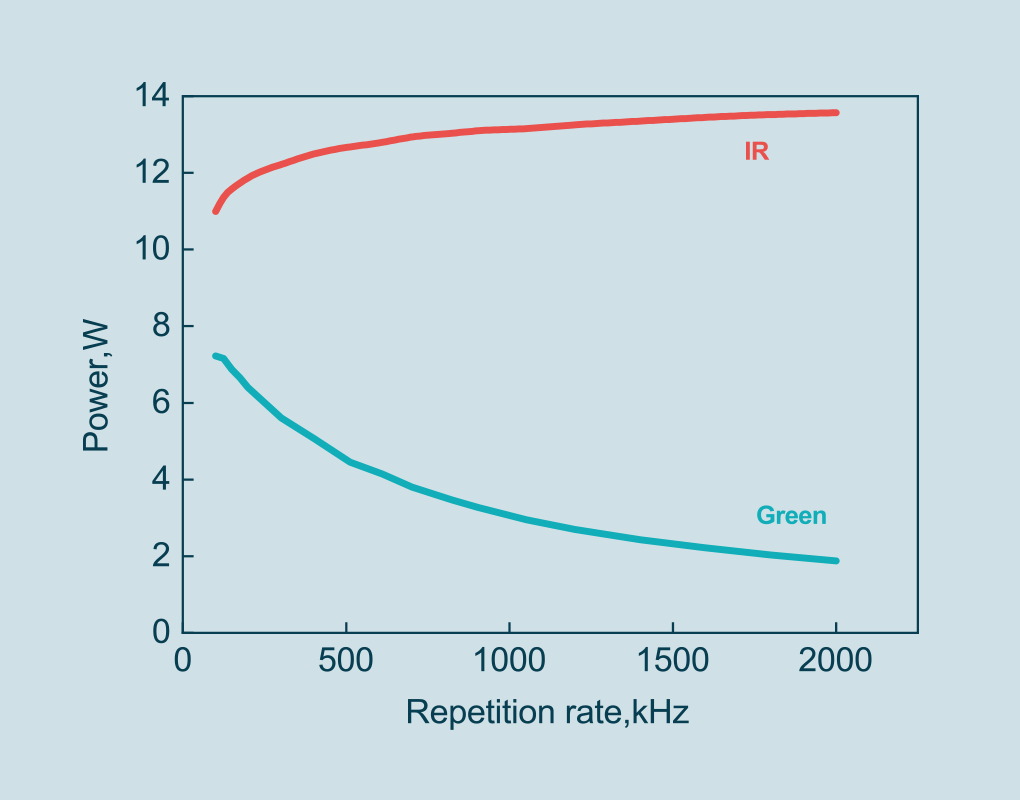

| Average power ¹⁾ |
> 10 W @ 1000 kHz |
> 5 W @ 200 kHz |

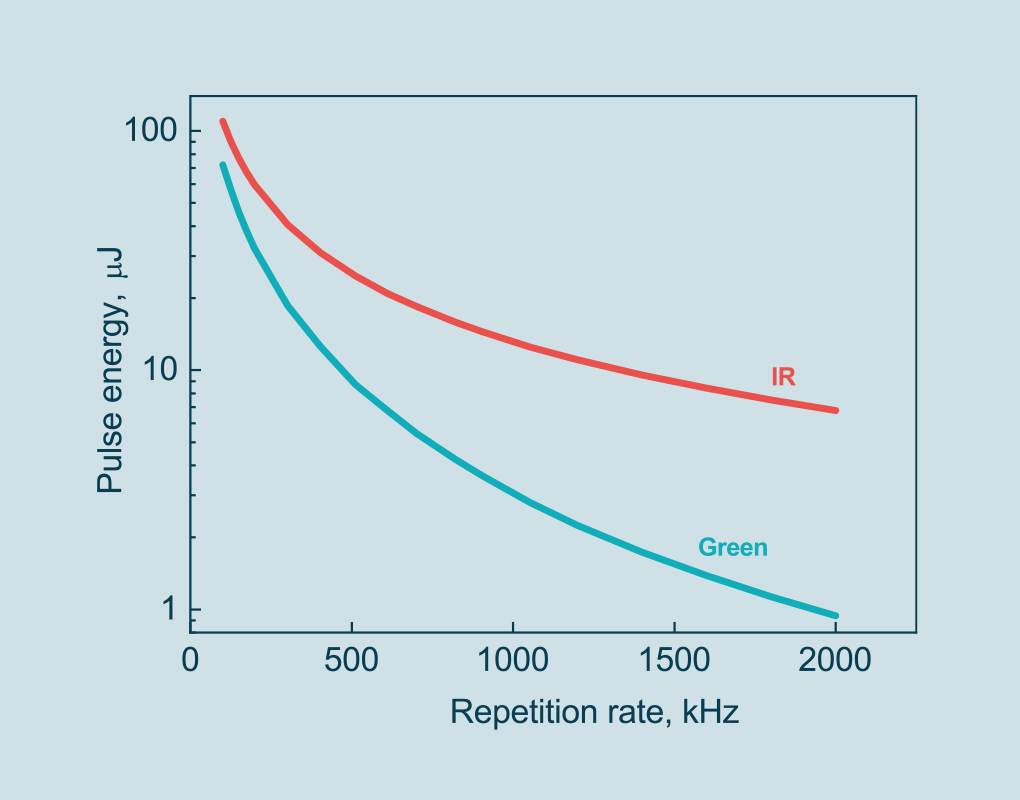

| Max. pulse energy ¹⁾ |
> 100 μJ @ 80 kHz |
> 60 μJ @ 80 kHz |
| > 10 μJ @ 1 MHz |
> 3 μJ @ 1 MHz |

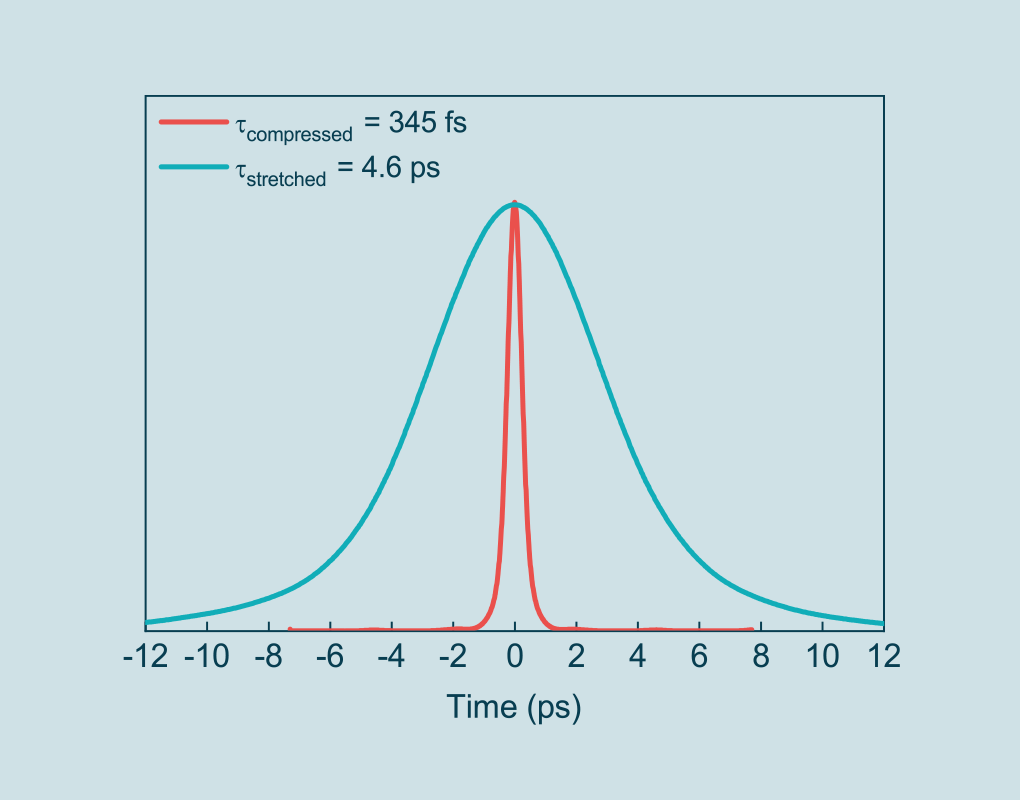

| Pulse duration |
< 450 fs |
| Pulse duration with external compression module ²⁾ |
< 60 fs |
| Pulse duration tunability |
450 fs - 2 ps |
N/A |
| Internal pulse repetition rate |
80 kHz – 1 MHz, |
| down to 20 kHz in burst mode |
| Pulse picker |
integrated |
| Triggering mode |
Pulse picker control via TTL gate |
| Burst length |
1...16 pulses |
| Max. energy in burst |
> 400 μJ |
> 200 μJ |
| Polarization |
linear, vertical > 1000 : 1 extinction |
linear, horizontal > 200 : 1 extinction |
| Power attenuation ³⁾ |
100 - 0.1 % |
| Beam quality |
M² < 1.2 |
| Beam circularity ⁴⁾ |
> 0.87 |
> 0.85 |
| Beam diameter (at 1/e² level) |
2 ± 0.2 mm |
1.7 ± 0.2 mm |
| Beam divergence (full angle) |
< 1 mrad |
| Beam pointing (pk-to-pk) ⁵⁾ |
± 50 μrad |
| Beam pointing vs temp. (pk-to-pk) |
< 20 μrad/°C |
| Pulse Energy Stability (RMS) ⁶⁾ |
< 1.0 % |
< 2.0 % |

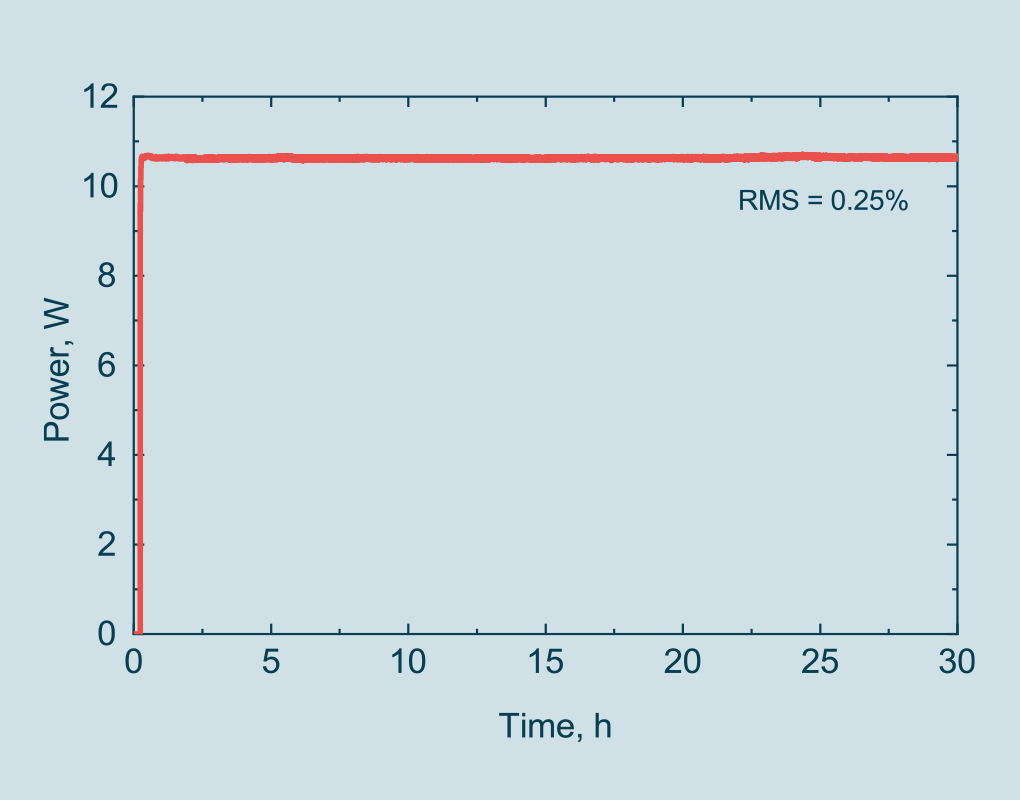

| Power Stability (RMS) ⁷⁾ |
< 1.0 % |
< 2.0 % |
| Warm-up time (cold start) |
< 30 min |
< 30 min |
| Warm-up time (warm start) |
< 90 s |
< 90 s |
| Laser control interface |
CAN, USB |
| Operating voltage |
100...240 V AC, 47...63 Hz |
| Average power consumption (after warm-up) |
< 300 W |
| Operating temperature |
15 – 35 °C |
| Humidity |
non condensing |
| Transportation/storage temperature |
- 20 °C – +70 °C |
| Dimensions: |
|
| Laser head (LxWxH) |
522 x 233 x 179 mm |
| Control unit (LxWxH) |
449 x 370 x 140 mm |
| Umbilical length |
3 ± 0.3 m |
| Colling: |
|
| Laser head |
air (passive) |
| Control unit |
forced air (fans) |
 |
 |

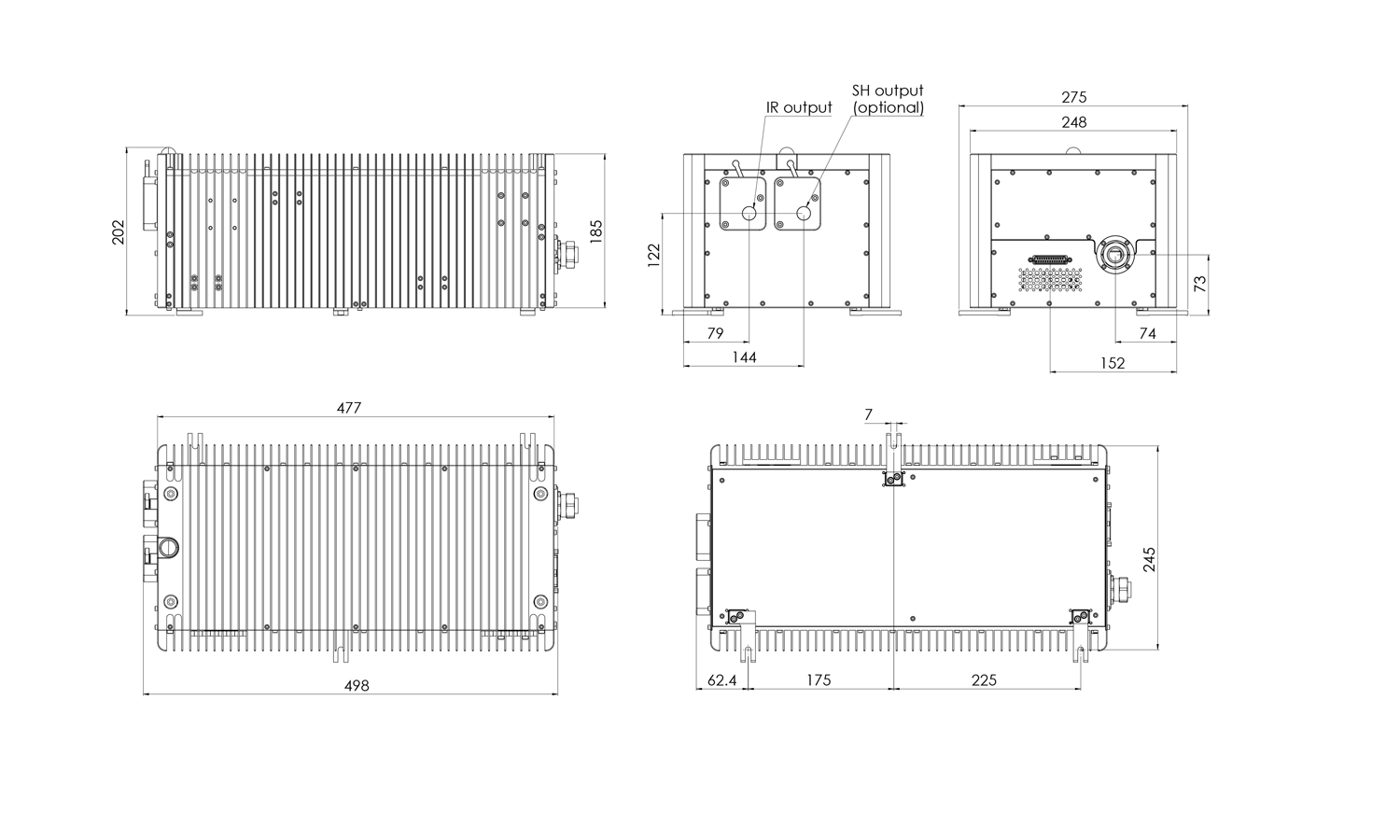

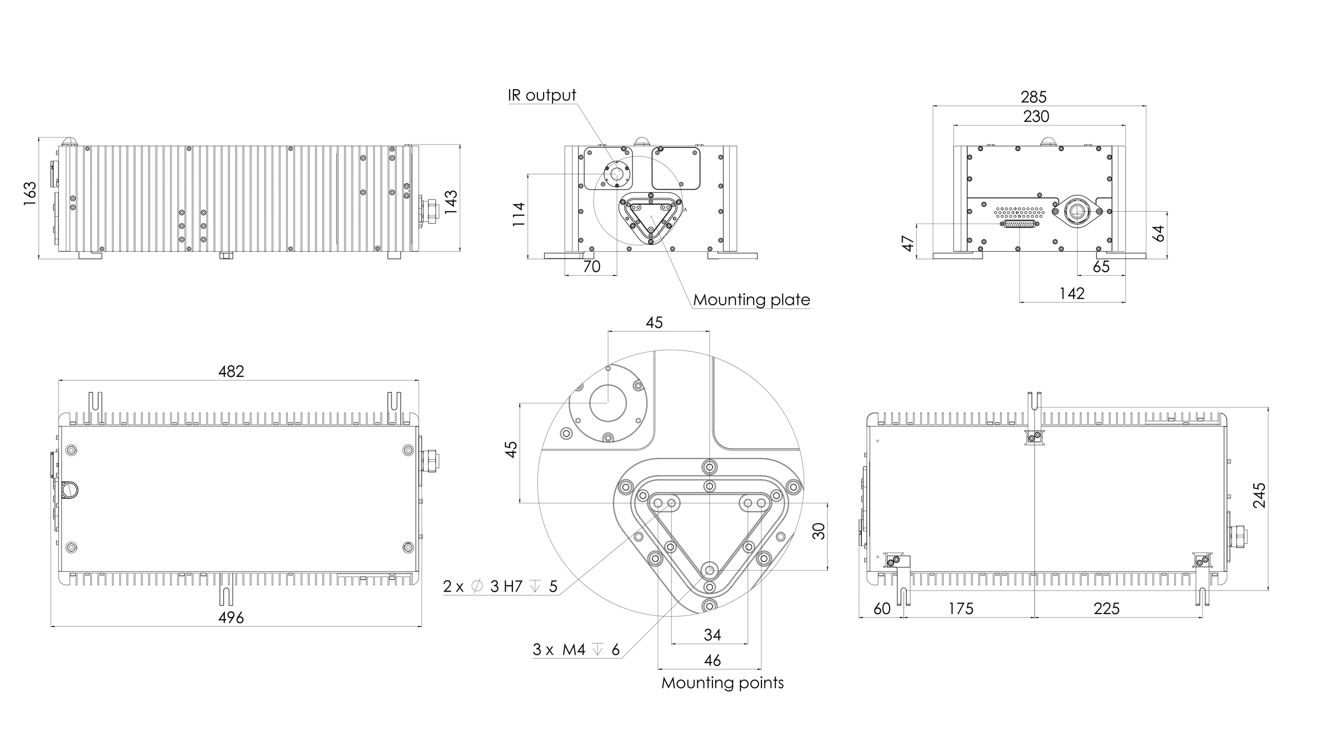

| Indylit 10 laser head dimensions (in mm) |

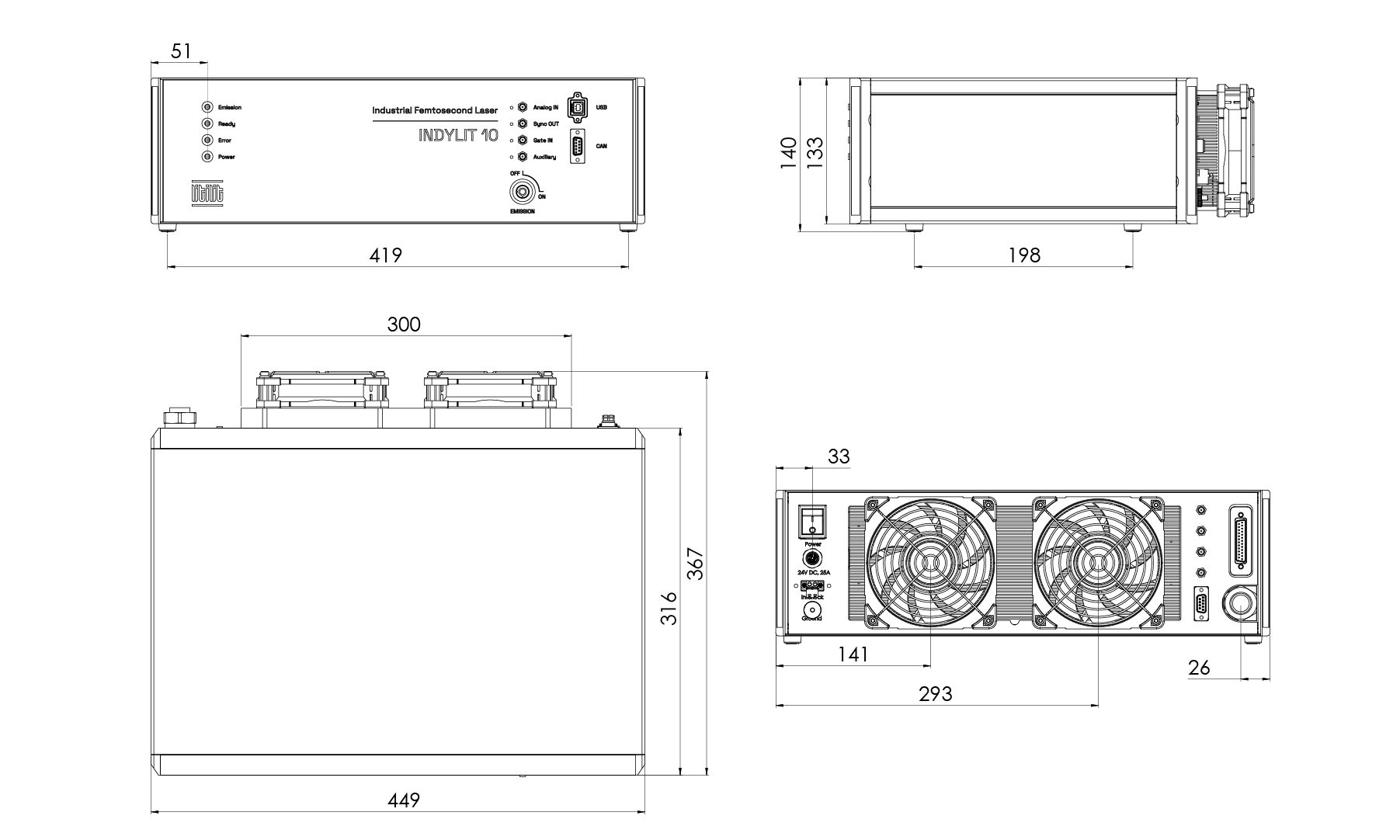

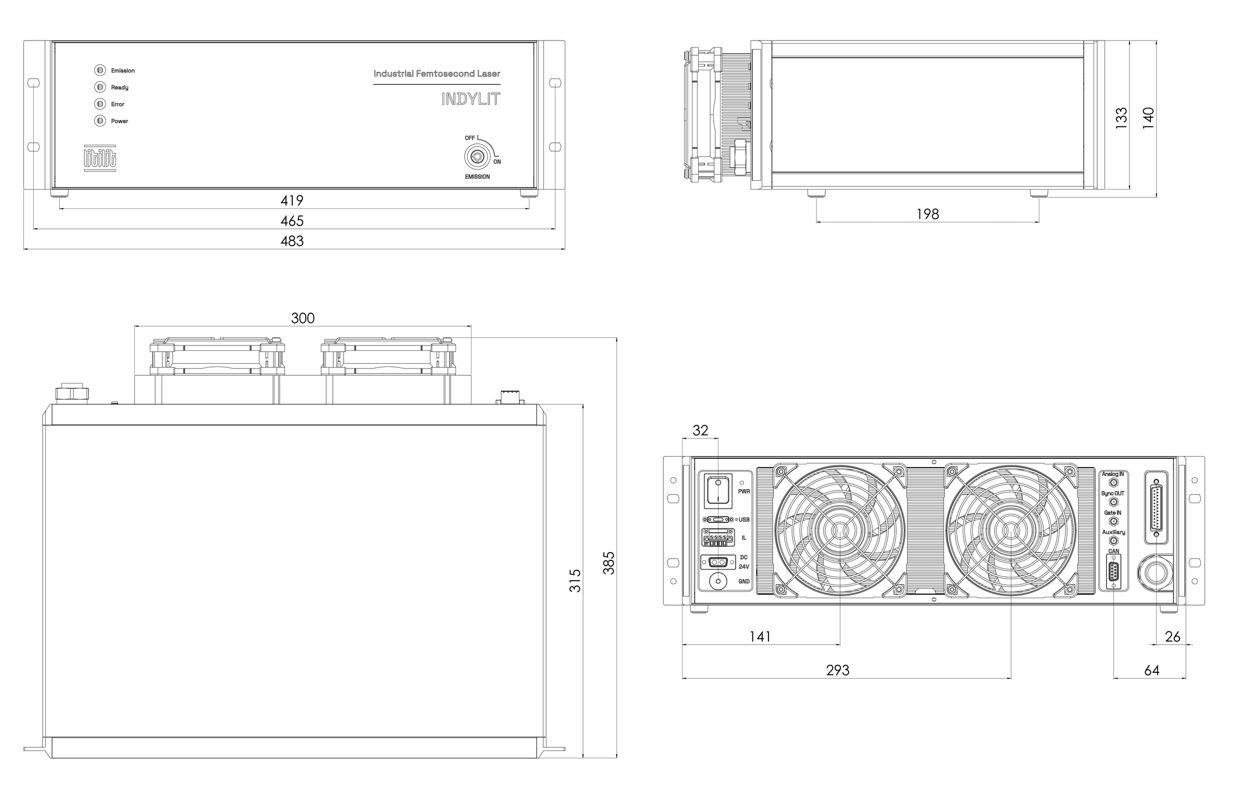

Indylit 10 laser control unit dimensions (in mm) |
