| Pick-up element |
1/2inch Interline transfer CCD image sensor |
| Number of total pixels |
811(H) x 508(V) EIA
795(H) x 596(V) CCIR |
| Number of effective pixels |
768(H) x 494(V) EIA
752(H) x 582(V) CCIR |
| Unit cell size |
8.4μm(H) x 9.8μm(V) EIA
8.6μm(H) x 8.3μm(V) CCIR |
| Scanning system |
2:1 interlace |
| Synchronizing system |
Internal |
| Video output |
Composite Video, 1Vp-p, 75ohm Unbalanced |
| Resolution (Horizontal) |
570TV lines (center) |
| Minimum illumination |
0.03 lx. F1.4 (AGC Low)
0.003 lx. F1.4 (AGC High) |
| Gamma correction |
γ≒0.45(ON), 1.0(OFF) |
| AGC |
Hi:5~32dB, Lo:5~12dB, OFF:fix10dB |
| S/N Ratio |
50dB (AGC OFF, γ=1) |
| AE mode |
Electronic iris: 1/60(EIA), 1/50(CCIR)~1/100000sec.
Flicker-less: shutter speed 1/100(EIA), 1/120(CCIR)
OFF: 1/60(EIA), 1/50(CCIR) |
| Back light compensation |
ON/OFF selectable |
| Lens mount |
CS-mount |
| Installation screw |
U 1/4inch (D=5mm) (Top/Bottom) |
| Connection terminal |
Video out(RCA), Power, Auto iris |
| Power supply |
DC +10.8~13.2V (12V±10%) |
| Current |
Max. 135mA |
| Operating temperature |
-10℃ ~ +40℃ |
| Storage temperature |
-30℃ ~ +70℃ |
| Dimensions |
35.5(W)×36(H)×58(L)mm |
| Weight |
Approx. 90g |
| Accessories |
DC-plug(WPDC12), Iris-plug(AIC) |

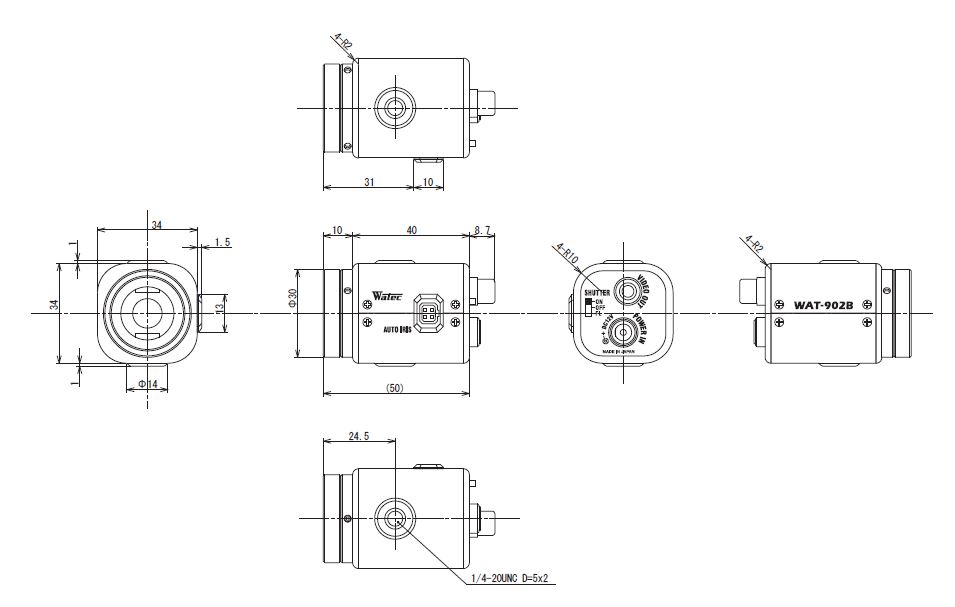

| Dimensions |
 |
