| TV system |
NTSC / PAL |
| Sensor |
1/3” SONY CCD |
| Total pixels |
1024(H) x 508(V) NTSC
1024(H) x 596(V) PAL |
| Unit cell size |
5.0μm x 7.4μm |
| Horizontal resolution |
650TVL |
| Min. illumination |
0.03 lx F1.0 |
| Sync. |
Internal |
| S/N retio |
more than 52dB (AGC OFF) |
| Lens mount |
CS mount |
| Electronic Shutter |
Auto 1/50(60) ~ 1/100000 sec |
| Manual shutter |
1/50(60), FL 1/120(100), 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000, 1/100000 |
| AGC |
OFF/1.0, 0.75, 0.5, 0.25 |
| Fix gain |
0/6/12/18/24/30/36/42dB |
| Gamma |
Gamma0.45 |
| White balance |
ATW/Push/User1, 2 /Anti coloring |
| Back light |
ON / OFF |
| Mirror effect |
OFF / ON |
| OSD function |
OSD cable |
| Defect pixels compensation |
Max. 64 points |
| Video output |
1.0 Vp-p 75 BNC |
| Power input |
DC12V ±10% |
| Storage temperature |
-30 ~ 60˚C |
| Working temperature |
-31 ~ 45˚C |
| Weight |
Camera body 90g, OSD cable 30g |

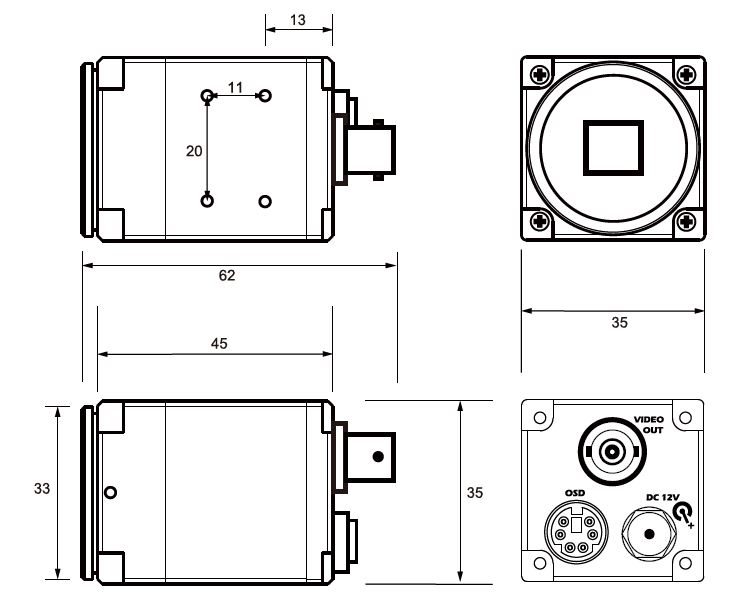

| Dimensions (mm) |
 |
