| Optical Data (1) |
CW Output Power |
2~5000mW (Output power must be specified on order) |
| Center wavelength |
635nm |
| Spectral width(FWHM) |
±10nm |
| Wavelength shift with temperature |
≤3nm |
| Output power instability (25℃) |
±3% (2 hours) |
| Power Range |
10~100% |
| Fiber Data |
Core diameter |
4/9/105μm |
| Numeric aperture |
0.22 |
| Fiber length |
2m |
| Fiber termination |
SMA905 |
| Electrical Data |
Power supply |
100~240V / 200~240V (50-60Hz) |
| Power consumption at nom. Power, approx. |
<1200W |
| Drive mode |
Constant current |
| Emission mode |
CW or Modulated 1 Hz in 20kHz |
| Control mode |
Touch screen, RS232, I/O |
| Modulation frequency |
1~20k Hz |
| Modulation Pulse Width |
16μs~950ms(Pulse) / 16μs~999ms (Single Pulse) |
| Modulation Rise/Fall Time (Min. Value) |
≤10μs |
| Operation temperature (2) |
20~30℃ |
| Current |
<0.8A |
| Mechanical Parameters |

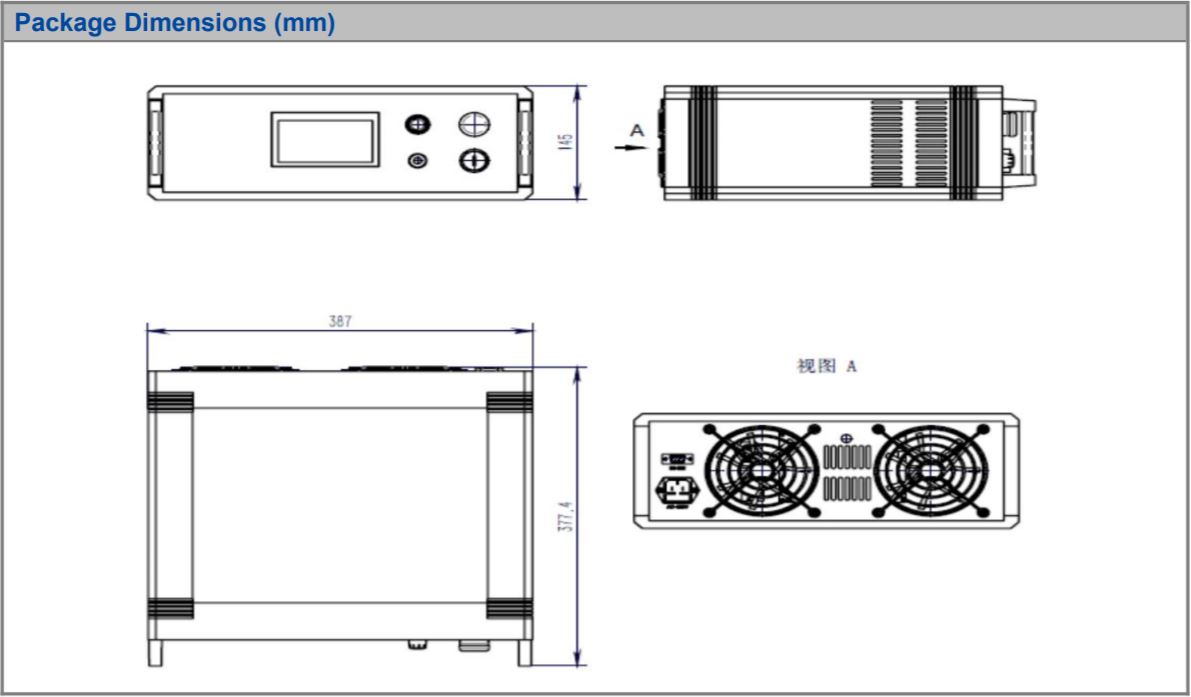

Dimensions (L×W×H) |
387× 377.4× 145mm / 305× 295× 135mm |
| Weight |
<15Kg / <8Kg |
| Others |
Refrigerating method |
Air cooling |
| Storage temperature (3) |
5~50℃ |
| Temperature Ambient in Operation |
15~30℃ |
| Cooling requirement |
Internal fan, At least 10 cm space outside fan |
| Relative Humidity |
5~80% |
| Protection rating |
IP54 |
| Safety class |
4(EN 60825-01) |
| Operating Notes |
● Avoid eye and skin exposure to direct radiation during operation.
● Make sure the fiber output end is properly cleaned before operation of laser. Follow safety protocols to avoid injury when handling and cutting the fiber.
● Use constant current power supply to avoid surge current during operation.
● Laser diode must be used according to the specifications.
● Operation temperature ranges from 15℃ to 35℃.
● Storage temperature ranges from -20℃ to +70℃. |
| Remark |
(1) Consult Unice for other available options.
(2) Operating temperature defined by the package case. Acceptable operating range is 20℃~30℃, but performance may vary.
(3) A non-condensing environment is required for operation and storage. |
 |
