MGL-S-543

產品型號：MGL-S-543
產品說明：

價格(NTD)：$0

產品說明

Model	MGL-S-543-A (Harsh condition)	MGL-S-543-B (Normal condition)
Central wavelength (nm)	543±1
Operating mode	CW
Output power (mW)	>1,5,10,20,…,50 Output power must be specified when you submit inquiry.	>50, …, 100 Output power must be specified when you submit inquiry.
Power stability (rms, over 4 hours)	<1%, <2%, <3% Power stability must be specified when you submit inquiry.	<2%, <3%, <5% Power stability must be specified when you submit inquiry.
Transverse mode	TEM⁰⁰
M² factor	<1.2
Beam diameter at the aperture( 1/e² ,mm)	0.7±0.05
Beam divergence, full angle (mrad)	<1.5
Polarization ratio	>100:1 Horizontal ±5 degree (Vertical Optional)
Pointing stability after warm-up (mrad)	<0.05
Pointing stability Over Temp. (µrad/°C)	<8
Warm-up time (minutes)	<5
Beam height from base plate (mm)	19
Power Consumption (W)	<30
Shock Tolerance (6ms)	7g laterally,15g vertically
IP Rating	IP67	IP65
Power supply (90-264VAC)	PSU-H-FDA	PSU-A-D PSU-A-F PSU-III-OEM-97 (5VDC)
Operating temperature (℃)	0-60	10-35
Max. Heat Dissipation of Head (W)	10W@50℃	4W@25℃
Modulation	TTL on/off, 1Hz-1KHz, 1KHz-10KHz, 10KHz-30KHz; and Analog modulation option
Expected lifetime (hours)	10000
Warranty	1 year
Dimension of Laser Heads (mm)

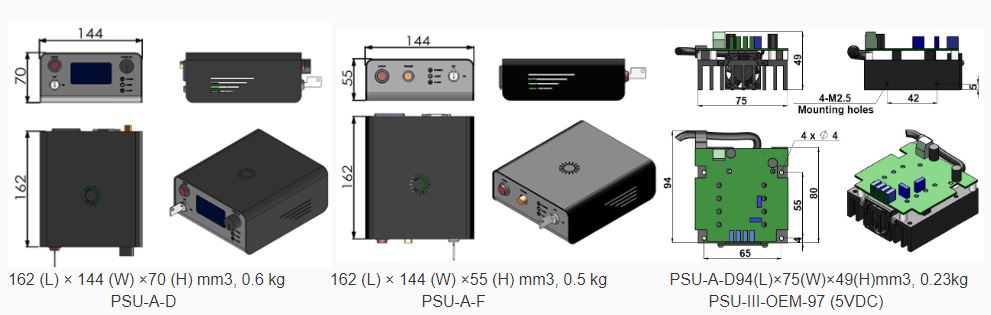

Dimension of Power Supply (mm)
Example: MGL – S – 543 – B – 100 – 2 473nm wavelength, Normal condition, 100mw output power and 2% power stability
