| Model No |
NF03-658E-25 |

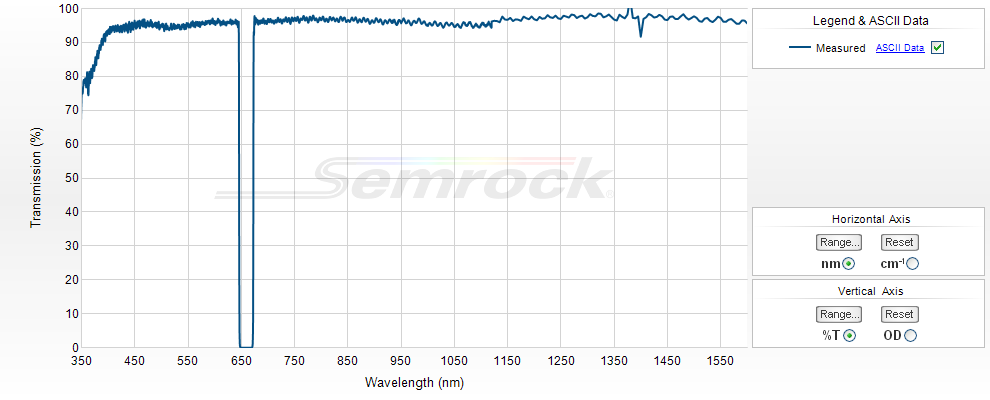

| Wavelength |
658.0 nm |
| Passband Range |
350.0 – 1600.0 nm |
| Typical 50% Notch Bandwidth |
27 nm |
| Laser-line Blocking |
OD > 6 |
| Diameter (Mounted) |
25 mm |
| Thickness (Mounted) |
3.5 mm |
| Substrate Thickness (Unmounted) |
2.0 mm |
| Substrate Type |
Fused Silica |
| Diameter Tolerance (Mounted) |
+ 0.0 / – 0.1 mm |
| Thickness Tolerance (Mounted) |
± 0.1 mm |
| Clear Aperture |
≥ 22 mm |
| Scratch-Dig |
60-40 |
| Substrate Thickness (Unmounted) |
2.0 mm |
| Substrate Thickness Tolerance (Unmounted) |
± 0.1 mm |
