1. 無耗材
2. 對外部干擾的魯棒性
3. 超高質量脈沖和頻譜
4. 高度可定制的輸出參數
5. 超寬頻譜可壓縮至 30 fs
Specifications |
Model |
|
Neolit |
Neolit AMP |
Neolit BB |
Central wavelength |
1020 – 1070 nm |
1040 nm |
Pulse duration (directly from the fiber) ¹, ² |
1 – 5 ps |
5 – 10 ps |
7 ps |
Spectral bandwidth (FWHM) |
4 – 12 nm |
8 – 12 nm |
20 – 70 nm |
Average power |
1 – 5 mW |
20 – 50 mW |
20 – 50 mW |
Pulse repetition rate (factory fixed) |
15 – 40 MHz |
Polarization |
linear, > 100:1 extinction |
Optical output |
FC/APC connector |
RF signal interface |
SMA |
Available control interfaces |
USB, CAN |
Powering requirements |
12 ± 2 V, max. 3 A |
Operating temperature |
15 - 45 °C |
Mechanical dimensions |
194 x 135 x 40 mm |
|

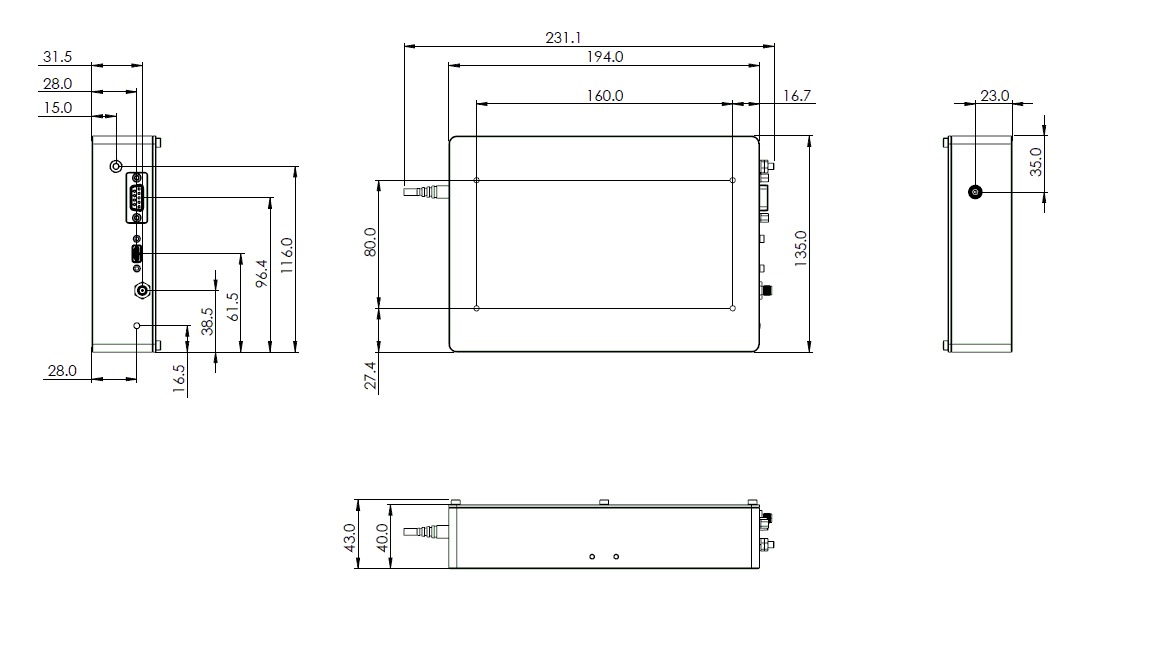

Neolit femtosecond seeder dimensions (in mm) |
