1. 多光子顯微鏡
2. 光聚合
3. 眼科
4. OPO泵送
1. 非常短而乾淨的脈衝
2. 堅固穩定
3. 靈活的重複率
4. 免維護和交鑰匙
5. 集成色散預補償
| Specifications |
Model |
Model |
| |
Biolit 2 |
Biolit 2 SH 1) |

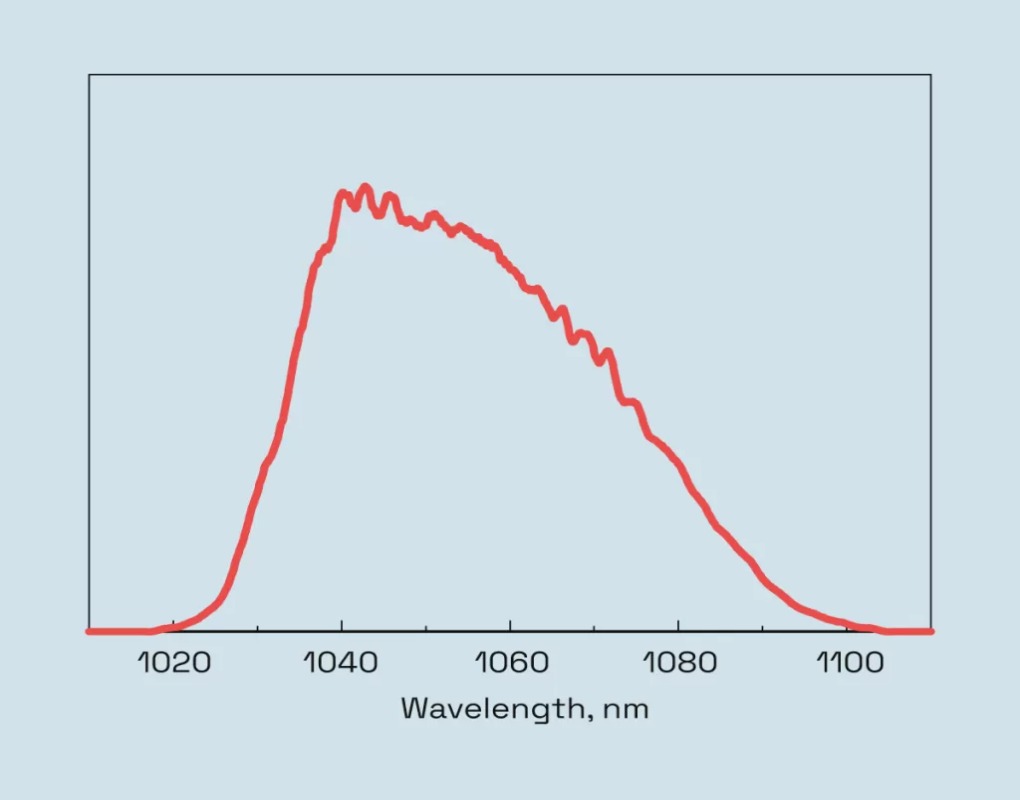

| Central wavelength |
1050 ± 5 nm |
515 ± 5 nm |
| Average power |
> 2 W |
> 400 mW |

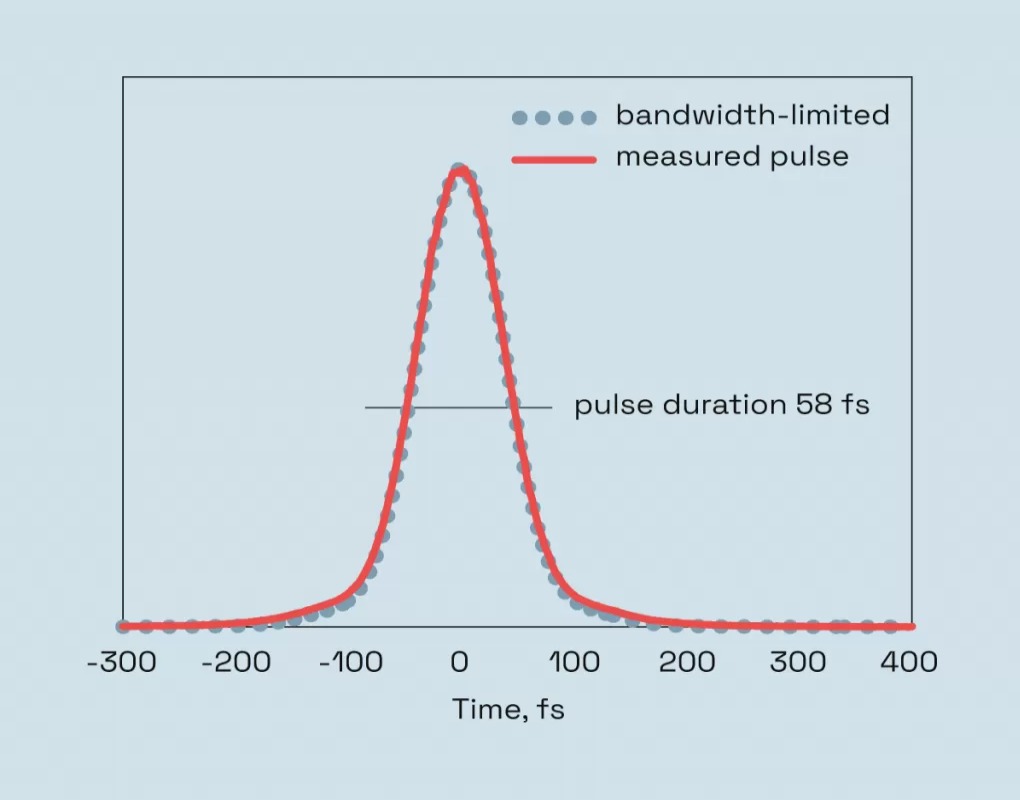

| Pulse duration |
< 70 fs (60 fs typ.) |
| Pulse duration stability 2) |
< +/- 5 fs |
| Pulse strehl ratio |
> 0.9 |
| Tunable dispersion pre-compensation 3) |
-10 000 fs² ... +500 fs² |
N/A |
| Pulse repetition rate 4) |
15, 20, 30 or 40 MHz |
15 or 20 MHz |
| Tuneable pulse repetition rate (optional) 5) |
1-40 MHz |
| Analog power control |
1 - 100 % |
| Analog power control bandwidth |
>10 kHz - standard |
| >300 kHz - optional |
| Peak power |
> 1 MW @ 20 MHz |
> 200 kW @ 20 MHz |

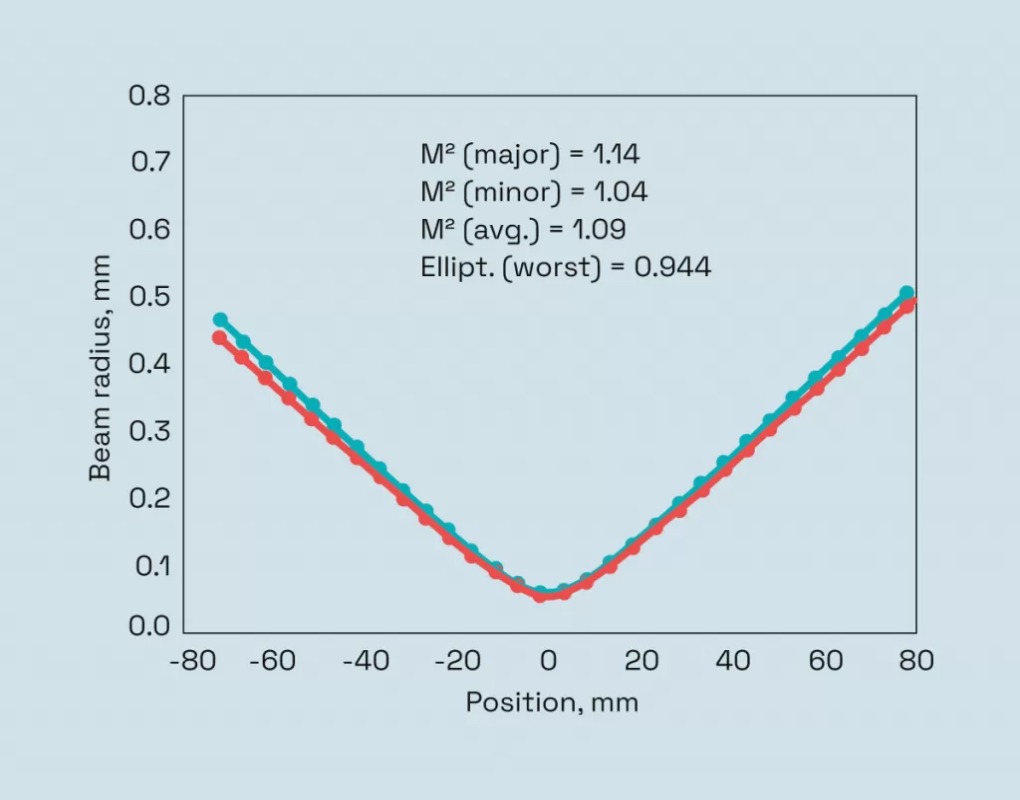

| Beam quality |
M² < 1.2 |
| Beam circularity 6) |
> 0.9 |
| Beam diameter (at 1/e² level) |
1.5 ± 0.3 mm |
1.2 ± 0.3 mm |
| Beam pointing (pk-to-pk) 2) |
< 50 μrad |
| Beam pointing vs temp. (pk-to-pk) |
< 25 μrad/°C |
| Pulse Energy Stability (RMS) |
< 1 % |
< 2 % |

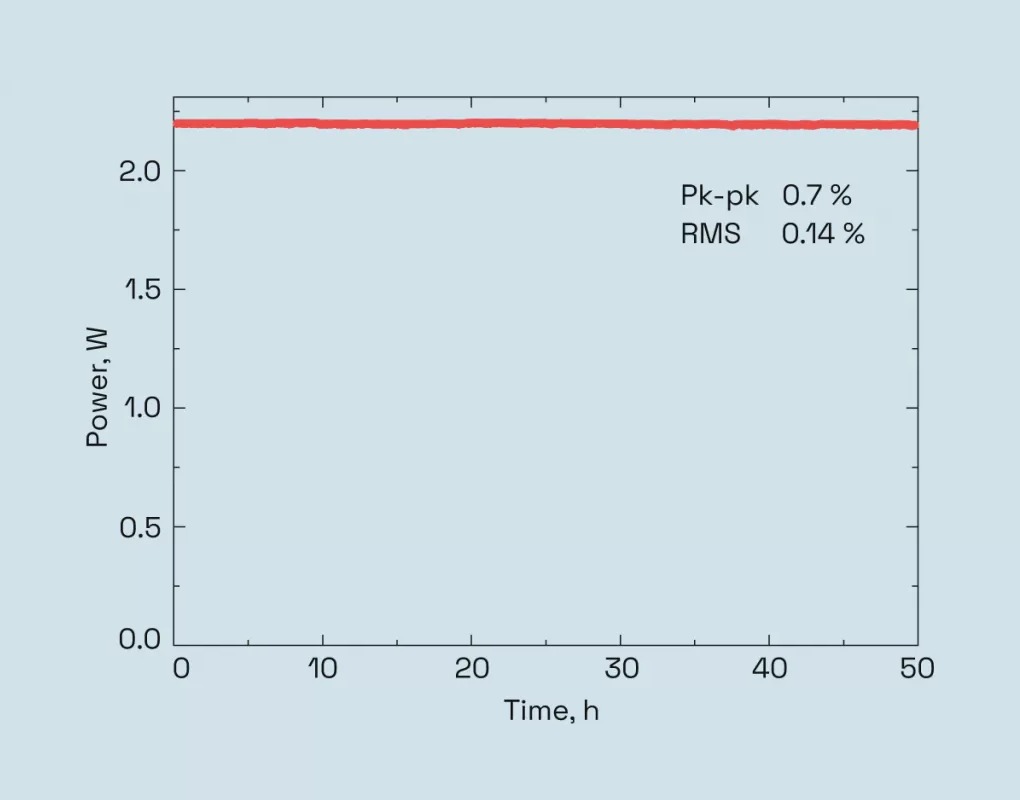

| Power Stability (RMS) 2) |
< 1 % |
< 2 % |
| Warm-up time (cold start) |
< 10 min |
| Available control interfaces |
CAN, USB |
| Operating voltage |
100 ... 240 V AC, 47 ... 63 Hz |
| Operating temperature |
15 – 35 °C |
| Humidity |
non condensing |
| Transportation/storage temperature |
- 20 °C – +70 °C |
| Dimensions: |
|
|

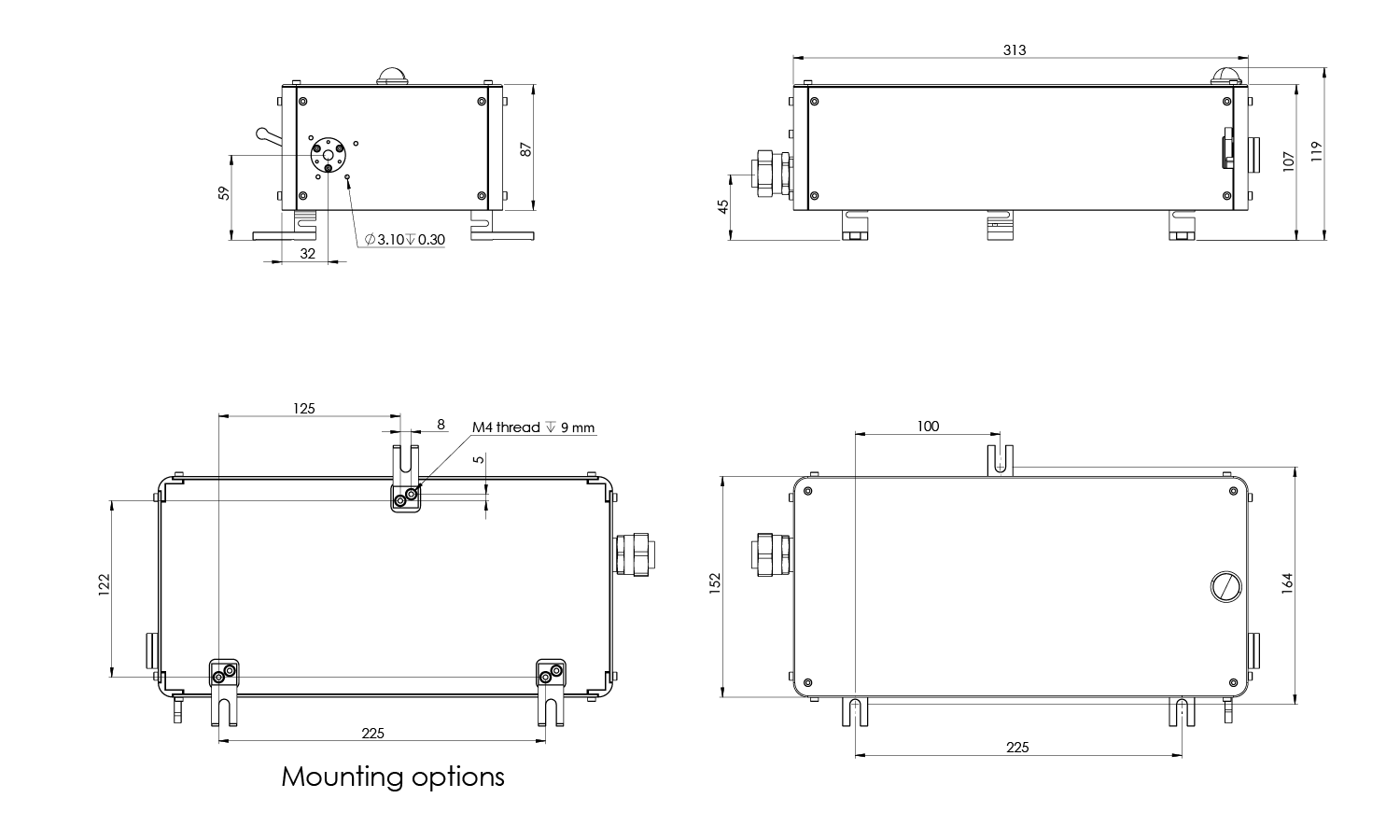

| Laser head (LxWxH) |
334 x 217 x 139 mm |
334 x 211 x 165 mm |

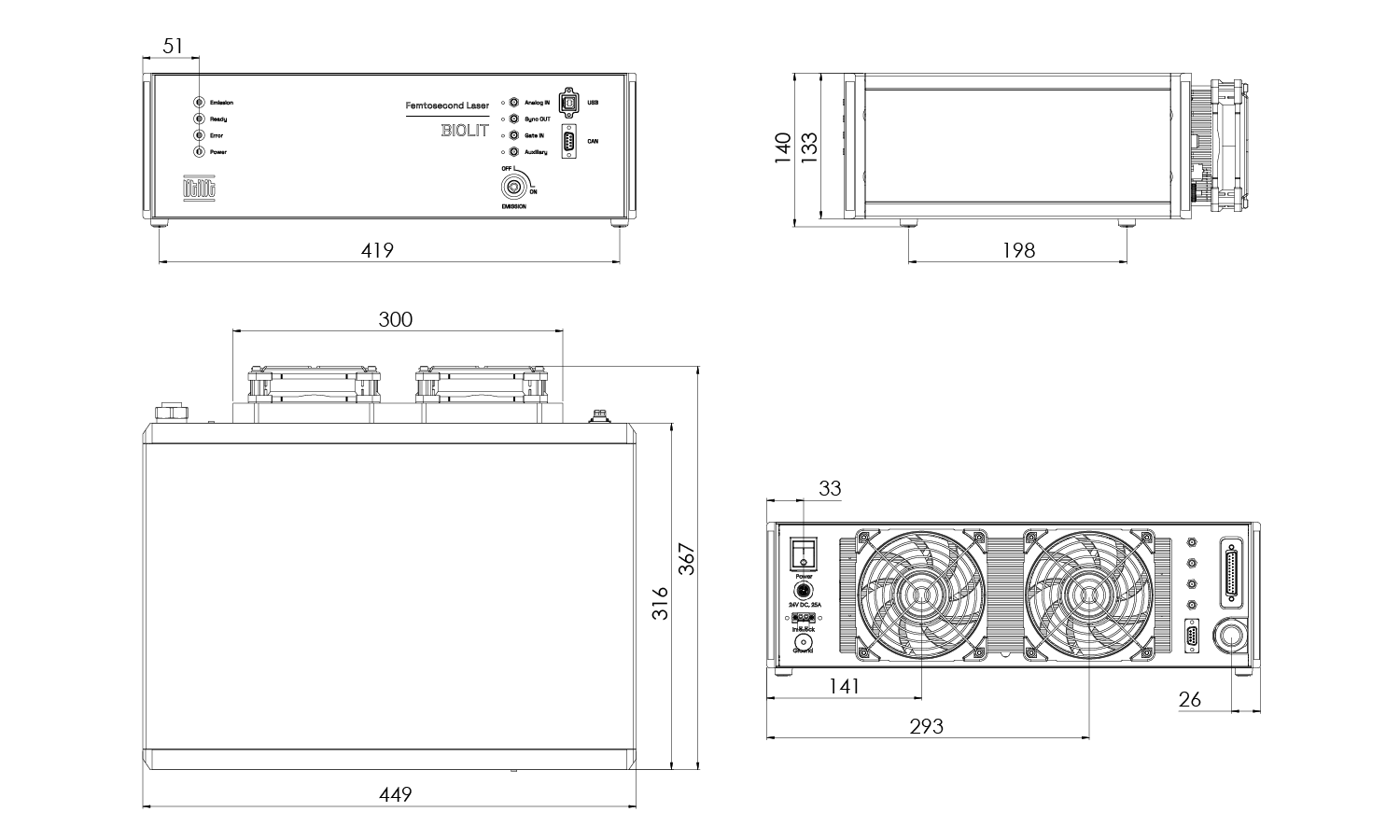

| Control unit (WxDxH) |
449 x 370 x 140 mm |
449 x 370 x 140 mm |
| Umbilical length |
3 ± 0.3 m |
| Colling: |
|
| Laser head |
air (passive) |
| Control unit |
forced air (fans) |
