OSA-SMSR Analyzers

產品型號：OSA-SMSR Analyzers
產品說明：

GouMax’s SMSR Analyzer is advanced OSA modules with SMSR function (also called OSA-SMA module or SMSR OSA module). It not only works as an OSA module, but also as SMSR analyzer to provide a cost-effective solution to characterizing DFB lasers and transmitters. The OSA-family product is designed and produced using GouMax’s proprietary micro-optics and tunable technology. It measures optical spectrum of optical signals injected into the OSA device over the defined operating wavelength range. From the measured spectrum and using advanced algorithm, SMSR, wavelengths of main and side modes, and power of main mode are calculated. The reported SMSR is normalized to spectral resolution 0.02~0.10 nm of Yokogawa Optical Spectrum Analyzer AD6370D (SMSR mode: SMSR1). GouMax OSA-family products with SMSR functions support any single wavelength band from 1250 to 1650 nm, such as O-band, E-band, S-band, C-band, L-band, U-band and any other customer specified wavelength range. System control and communication is provided though the RS232/UART interface, which allows users to collect data and spectrum for further analysis with ease.

價格(NTD)：$0

產品說明產品特色

GouMax single-band SMSR analyzer modules support O-, E-, S-, C-, L- and U-band operation.

Parameter	Unit	Specification
Operating wavelength range	nm	1260 ~ 1350 (O-band)
Input power range	dBm	-45 ~ 15
Max input power	dBm	30
Equivalent Measurement Bandwidth	nm	0.05/0.1/0.2
Wavelength accuracy	pm	±50
Wavelength repeatability	pm	± 10
Absolute power accuracy	dB	± 0.8
Relative power accuracy	dB	± 1.0
Power repeatability	dB	± 0.15
PDL	dB	0.3
Noise floor	dBm	-55
SMSR measurement range	dB	50
SMSR accuracy	dB	± 1.0
Optical return loss	dB	> 40
Response time	s	< 1
Power consumption	W	< 2.0
Electrical interface		USB/RS232

The SMSR Analyzer module can be used as a standalone device. GouMax provides control software and GUI for data analysis.

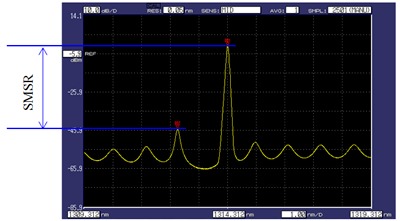

SMSR is defined as the peak power difference between main mode and the highest side mode, as shown in Figure below. When measuring SMSR, the care has been taken. First of all, SMSR is defined as the peak power difference, rather than the total power difference. Secondly, the peak power is measured by an optical spectrum analyzer with pre-set RBW (resolution bandwidth). Typically, the RBW is set at 50 pm.
