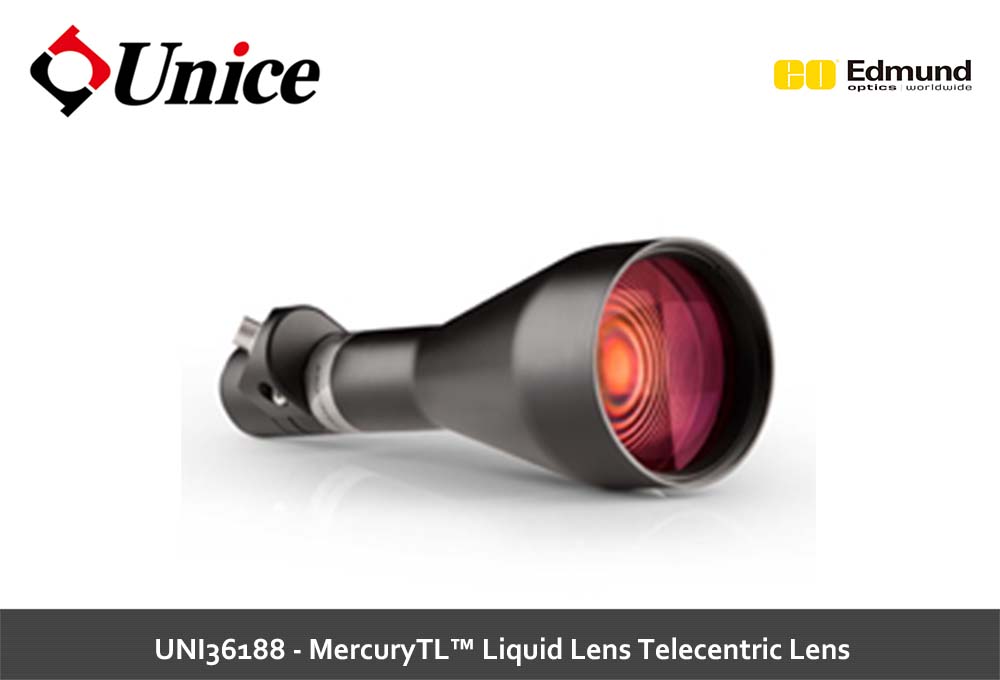

| Model No |
UNI36188 |
| Primary Magnification |
0.15X |
| Max. Sensor Format |
1/2" |
| FOV@Max Sensor Format, HxV(mm) |
41.2 x 30.9 |
| Aperture (f/#) |
f/10 |
| Working Distance (mm) |
169 - 265 |
| FOV, 1/2\" Sensor |
41.2mm |
| FOV, 1/3\" Sensor |
30.9mm |
| Filter Thread |
M62 x 0.75 |
| Length excluding Threads (mm) |
186.7 |
| Mount |
C-Mount |
| Note |
Specs are at middle WD. Field of Views are specified at the mid-curvature range of the liquid lens. Field of View Range and Working Distance Range are specified over the applicable minimum and maximum curvature range of the liquid lens. |
| Type |
Telecentric Lens |
| Typical Distortion @ 588nm (%) |
<0.9 |
| Typical Telecentricity @ 588nm (°) |
<0.050 |
| Weight (g) |
405 |
| RoHS |
Compliant |
