產品型號：UNI58256
產品說明：

價格(NTD)：$0

產品規格

Model No	UNI58256
Primary Magnification	0.73X
Max. Sensor Format	1/1.8"
FOV@Max Sensor Format, HxV(mm)	9.9 x 7.4
Aperture (f/#)	f/6 - f/19.5
Working Distance (mm)	98 - 123
Coating	MgF2 (400-700nm)
Mount	C-Mount
Type	Telecentric Lens
Coating Specification	λ/4 MgF2 @ 550nm
Depth of Field (mm)	±0.95 at f/10 (20% @ 20 lp/mm)
FOV, 1/2\" Sensor	8.8mm
Filter Thread	M62 x 0.75
Length excluding Threads (mm)	200.1
Maximum Diameter (mm)	68.00
Number of Elements (Groups)	10 (7)
NA, Object Side	0.061
Resolution, Image Space MTF @ f/10	>65% @ 40 lp/mm
Model No. of Mounting Clamp	UNI56024 Sold Separately
Typical Distortion @ 588nm (%)	0.100
Typical Telecentricity @ 588nm (°)	<0.003
Weight (kg)	1.1
RoHS	Compliant

相關產品

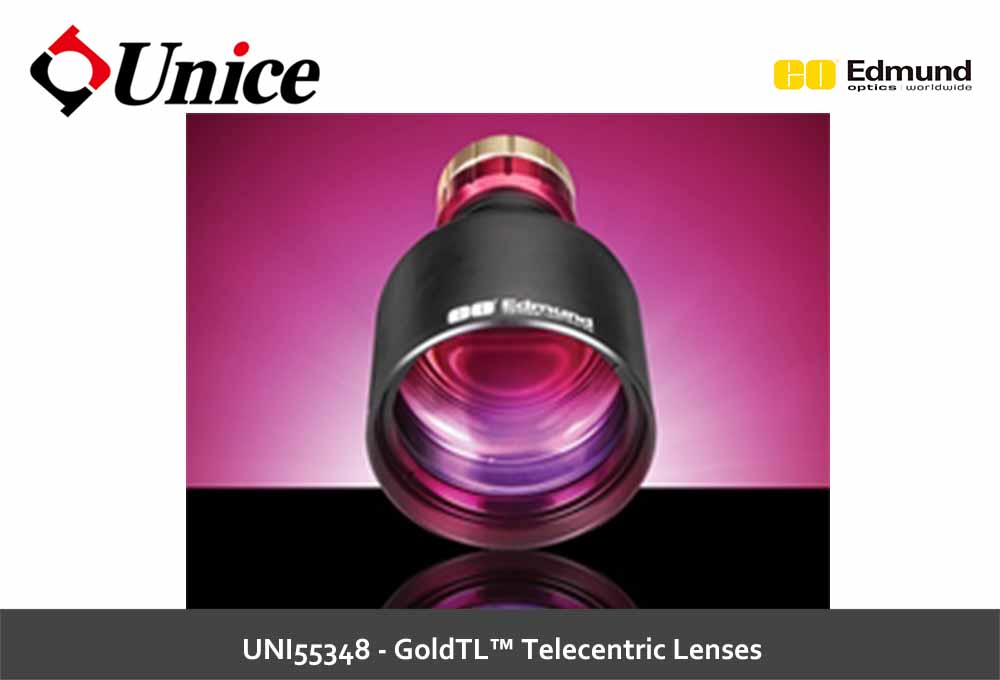

UNI55348

UNI58257

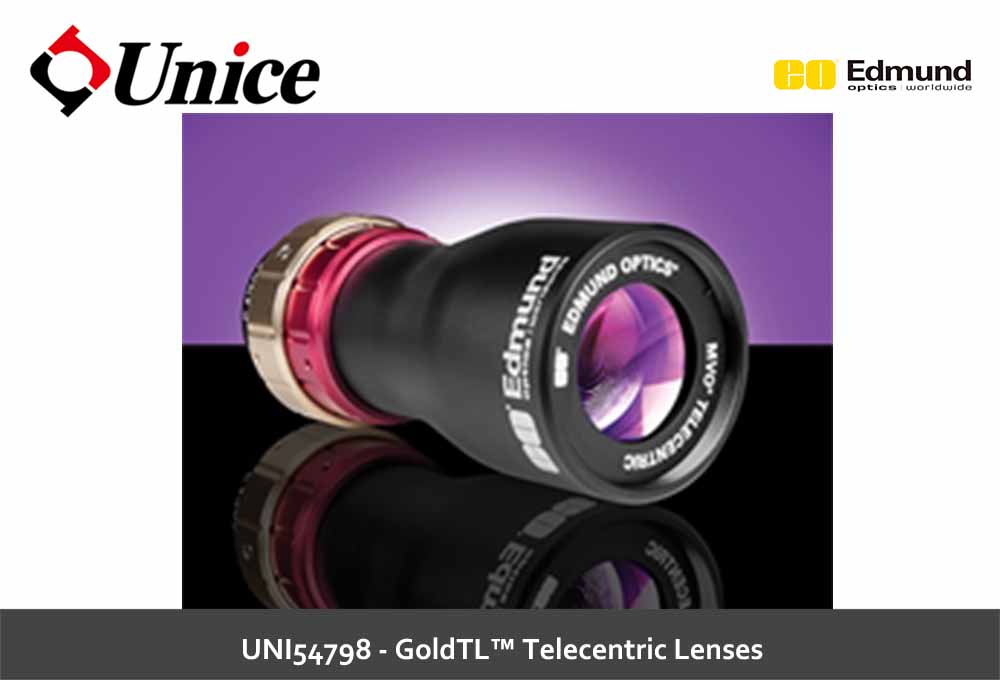

UNI54798
