產品名稱 : Image Analysis Micrometer
產品說明 :

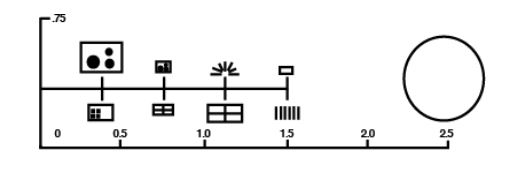

The circles, squares, bars, and other geometries on the micrometer are designed to be used for calibration and verification of measurement systems. Table lists the individual characteristics of the eight test plates featured. Also features a 2.5\" linear scale for larger scale calibrations or measurements, labeled every 0.5\". Glass slide dimensions: 1\" W x 3\" L x 1.5mm T. Large circle at the right of the slide is 0.5\" dia. Test Plates 1-4 correspond to top patterns and 5-8 to bottom patterns, all left to right. Patterns 1, 2 and 8 are calibrated on NIST certified version of micrometers.

● Designed for Measurement Calibration

產品規格

 Technical Information

Plate Frame Size Description
1 4600 x 3500μm Circles with diameters 2000μm, 1000μm, 500μm, 250μm
2 1000 x 800μm Circles with diameters 500μm, 250μm, 125μm, 62.5μm
3 1000 x 800μm 7 BARS (200μm x 20μm) separated by 30°
4 1000 x 800μm Various circles, doughnuts, and HEX shapes
5 4000 x 3200μm Squares of 100μm, 40μm, 20μm, (2 sets)
6 2050 x 1650μm Grid with 50μm holes and walls
7 4200 x 3400μm Grid with 200μm holes and walls
8 10000μm long SCALE (micrometer) 10μm
Unice Image Analysis Micrometer
產品型號 產品說明 Substrate NIST Certification 價格(NTD) 產品數量
0 UNI53713 Image Analysis Micrometer Chrome on Glass No -
1 UNI58605 Image Analysis Micrometer Chrome on Opal Glass No -
2 UNI59271 Image Analysis Micrometer Chrome on Glass Yes -
3 UNI59272 Image Analysis Micrometer Chrome on Opal Glass Yes -
