Vega

產品型號：Vega
產品說明：

價格(NTD)：$0

產品說明

Selected Screens

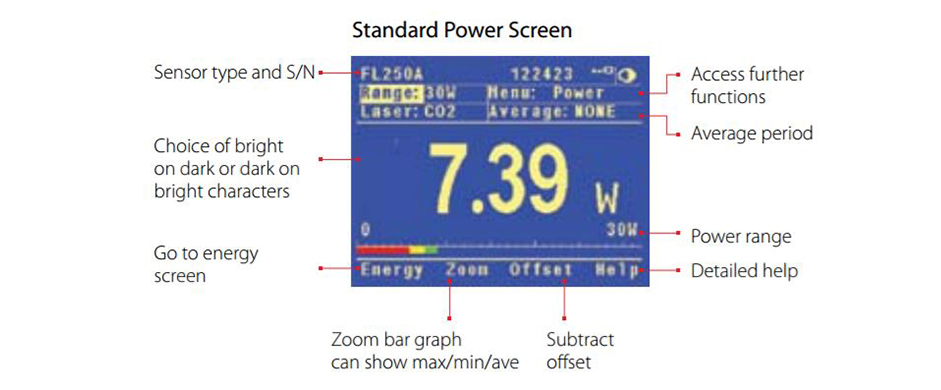

Digital Power Screen and Color Functions
• Choice of bright on dark or dark on bright characters • Optimize colors for use with laser eye protection glasses • Can average over selected period. Useful for unstable lasers • Bar graph can show max / min / average in different colors

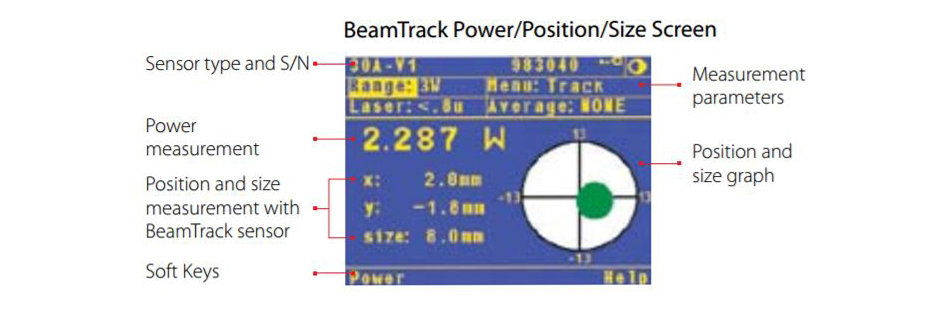

BeamTrack Power/Position/Size Screen
• Monitoring of laser beam size • Accurate tracking of beam position to fractions of a mm • Beam position and wander • All the other features of standard power/energy meters

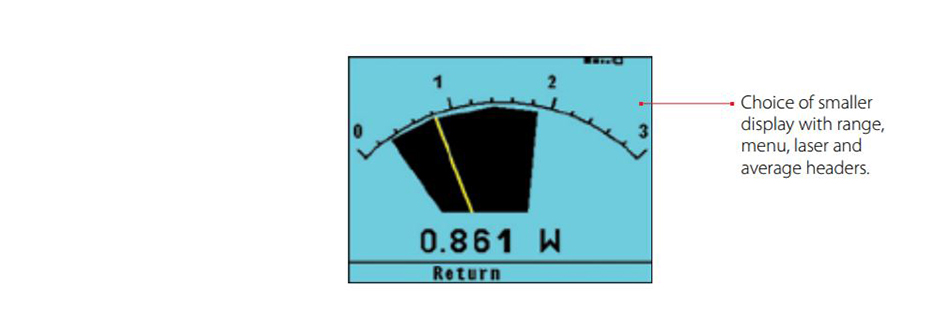

Analog Power Screen
• Perfect for adjusting and maximizing laser power • Persistent graphical display allows tracking of minimum maximum values measured • Large analog needle with small digital display as well

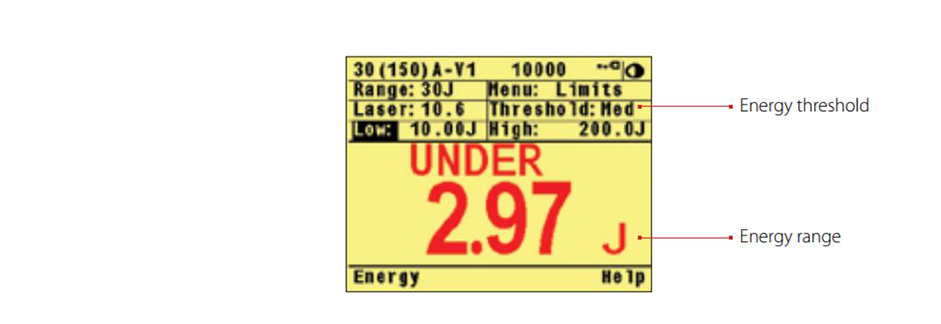

Energy/Limits Screen
• Pulsed energy sensors (single or repetitive) and thermal sensors (single shot only). • Frequency measurement with pulsed energy sensors. • Limits screen with bright colored warning

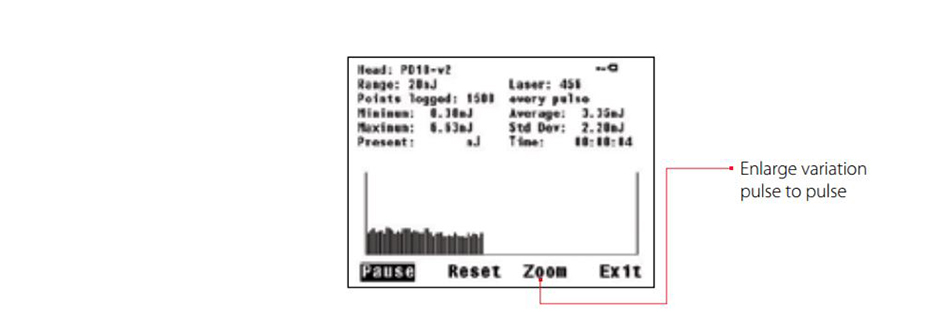

Energy Logging Screen
• Pyroelectric and thermal sensors • Continuous scroll with up to 100 points on screen • Full statistics • Store data onboard and recall

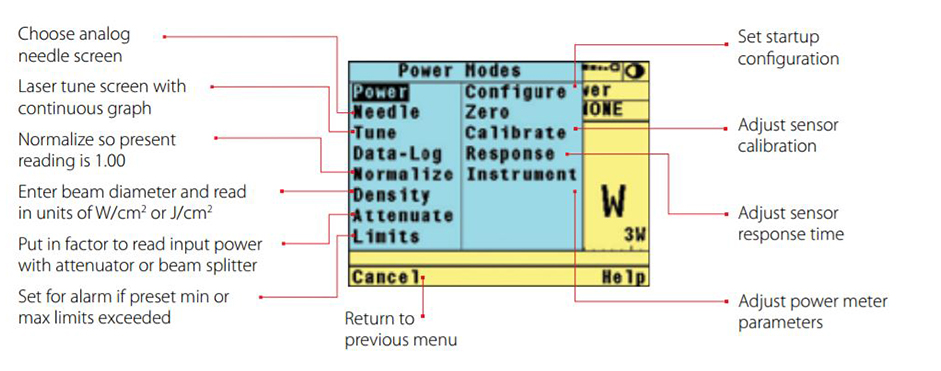

Additional Functions
• Press the menu choice on the main screen and many more options pop up as shown

Specification

Model	Vega
Communication Method	USB / RS232
Power Measurement
Power log period	12s to 600hr.
Max points stored onboard	27000
Max points direct on PC	unlimited
Analog output	1V, 2V. 5V, 10V F.S.
Energy Measurement
Max real time data logging to PC	>2000Hz USB ^(a) >30Hz RS232
Max onboard data logging rate	4000Hz ^(a)
Max points stored USB / onboard	250,000
Trigger input and output	N.A
Timing - time stamp for each pulse	N.A
General
Power Meter	Brilliant color TFT 320 x 240 pixel graphics LCD. Large 16mm digits. High resolution analog needle also can be chosen.
Screen Refresh	15 times/sec
Battery	Rechargeable NiMH batteries with typically 18 hours between charges. The charger also functions as an AC adapter.
Data Handling	Data can be viewed on board or transmitted to pc: On Board: Non-volatile storage of up to 250,000 data points in up to 10 files. Max onboard data logging rate 4000 (a) points/s and Max data logging rate to the PC 2000 (a) points/s.
Automation Interface	yes
LabVIEW VIs	yes
Maximum baud rate	38400
PC file format	Text files, spreadsheet compatible ASCII
TTL Out	N.A
Number of sensors supported	One sensor per unit. Can combine several units with software for display of up to 8 sensors on one PC
Compatible sensors	Supports most Ophir pyroelectric, thermal and photodiode sensors
Power supply	Powered from internal rechargeable battery power supply
Dimensions	210 x 109 x 36mm
Notes : (a) The above refers to the rate for logging every single point in turbo mode. Above that rate, the instrument will sample points but not log every single point. (b) For pyroelectric sensors, maximum guaranteed baud rate is 9600. (c) StarLite must be USB enabled in order to work with StarLab. If your StarLite has not been USB enabled, please contact your Ophir distributor in order to obtain a USB Activation Code.

Software - StarLab

StarLab turns your PC into a laser power/energy multi-channel station

Extensive Graphic Display of Data
• Lֺֺine Plot, Histogram, Bar chart, Simulated Analog Needle
• Mֺֺultiple data sets on one graph or separate graphs on the same screen

Advanced Measurement Processing
• Pֺֺower/Energy Density, Scale Factor, Normalize against a reference
• Mֺֺulti-channel comparisons
• Uֺֺser defined mathematical equations: channels A/B, (A-B)/C etc.
• Pֺֺosition & size measurement with BeamTrack sensors

Data Logging for Future Review
• Cֺֺan be displayed graphically or saved in text format
• Eֺֺasily exported to an Excel spreadsheet

Fully supports StarBright, StarLite, Vega, Nova-II, Pulsar, Juno and USBI devices with all standard Ophir sensors
