BF06341

BF06341

產品型號：BF06341
產品說明：

價格(NTD)：$0

產品規格

Model No	BF06341
Fiber Type	Multimode Step-Index
Numerical Aperture	0.22 ± 0.02
Attenuation	@ 850 nm, ≤ 10 dB/km
Water Content	Low HO

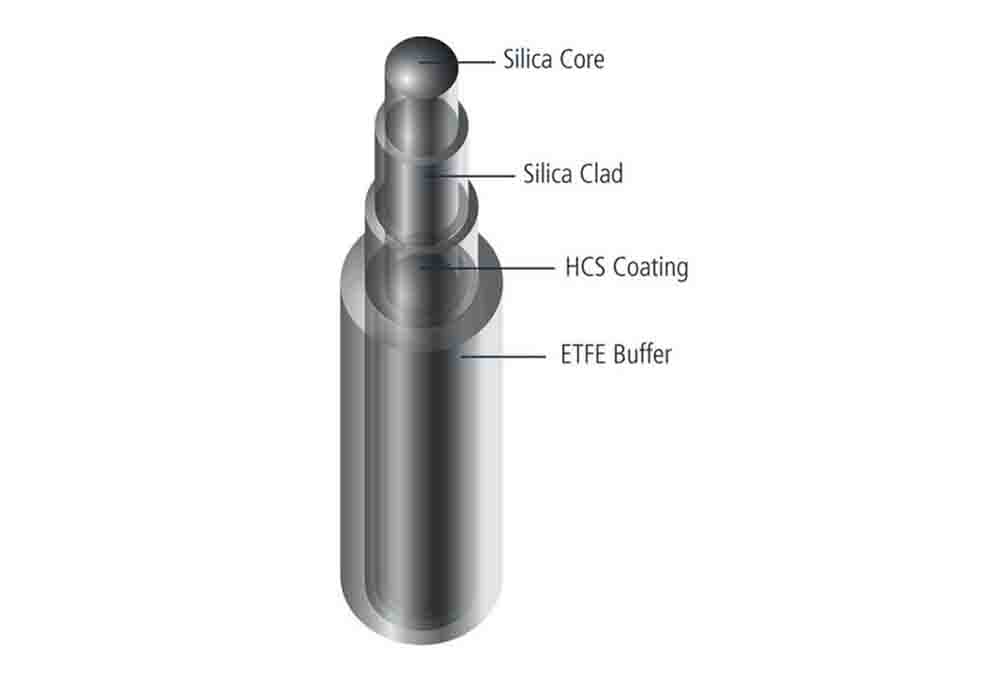

Core Diameter	365 ± 8 µm
Cladding Diameter	400 ± 8 µm
Coating Diameter	430 +5/-10 µm
Buffer Diameter	730 ± 30 µm
Core/Clad Offset	≤ 9 µm
Standard Buffer Color	Blue
Crimp and Cleave Compatibl	No
Coating Material	HCS
Buffer Material	ETFE
Operating Temperature	-65 to +125℃
Proof Test Level	≥ 100 kpsi
