CF04246-03

CF04246-03

產品型號：CF04246-03
產品說明：

價格(NTD)：$0

產品規格

Model No	CF04246-03
Fiber Type	Single-Mode
Operating Wavelength	820 nm
Cutoff Wavelength	770 ± 40 nm
Mode Field Diameter	@ 820 nm, 4.1 ± 1.0 µm
Attenuation	@ 820 nm, ≤ 5 dB/km
Numerical Aperture (Nominal)	0.16
Core Diameter (Nominal)	3.7 µm
Clad Diameter	80 ± 2 µm
Coating/Buffer Diameter	135 ± 5 µm
Clad Non-Circularity	≤ 2.0%
Core/Clad Offset	≤ 1.0 µm

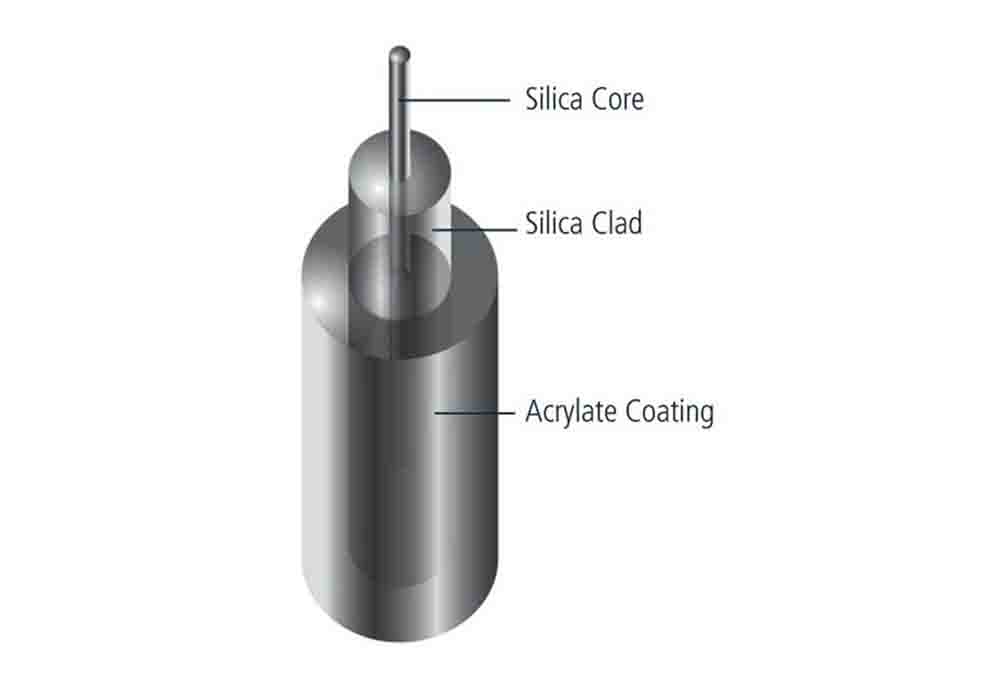

Coating Material	Single UV Acrylate
Operating Temperature	-40 to +85℃
Short-Term Bend Radius	≥ 7 mm
Long-Term Bend Radius	≥ 11mm
Proof Test Level	≥ 100 kpsi (0.689 Gpa)
