Flat Type Optical Drop Cable
Flat Type Optical Drop Cable
產品名稱 : Flat Type Optical Drop Cable
產品說明 :
Features
● Stable cable outside diameter for SC field connector assembly.
● LSZH jacket is suitable for indoor environment for great safety consideration.
● SM fiber complied with ITU-T standard 652D, G655, G657A, G651, ..etc.
● Meet IEC 60794 & Telcordia GR-409-CORE standard.
Applications
● Suitable for FTTH inside-building cabling.
● Easy for short distance installation into the inner duct of building.
● Easy to terminate with SC field connector for FTTH cabling.
More detail products information please contact with our services center. E-mail: unicehq@unice.com.tw
Buffer Colored Sequence
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 |
| Blue | Yellow | --- | --- | --- | --- | --- | --- | --- | --- | --- | --- |
Cable Specification

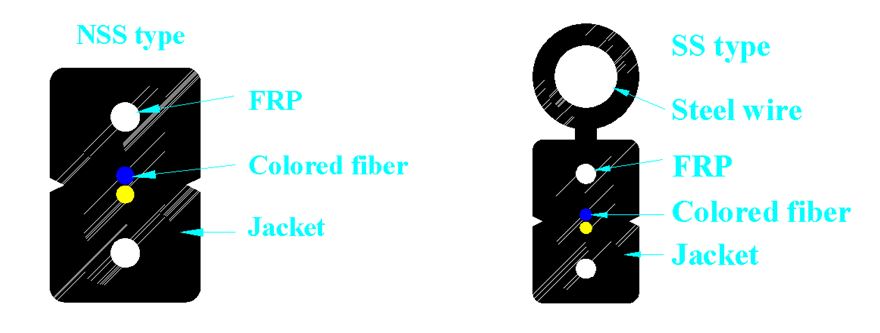

| Type / Fiber Count | FRP Diameter (mm / Count) | Steel wire Diameter (mm) | Cable Outside Diameter (mm) | Cable Nominal Weight (kg/km) |
| NSS / 1,2 Fibers | 0.4 ± 0.05 / 2 | NA | 3.1 x 2.0 ±0.2 | 10 |
| SS / 1,2 Fibers | 0.4 ± 0.05 / 2 | 1.2 | 5.3 x 2.0 ±0.2 | 20 |
| Fiber Type | G652D | G657A1 | ||
| Attenuation typical (nm) | 1310/1550 | 1310/1550 | ||
| Maximum Attenuation (dB/km) | 0.4/0.35 | 0.4/0.35 | ||
| Typical Attenuation (dB/km) | 0.4/0.3 | 0.4/0.3 | ||
| Minimum Bandwidth (MHz‧km) | NA | NA | ||
Mechanical Properties
| Standard | ||
| Maximum Tensile Load - NSS (N) | 150 | IEC 60794-1-2 E1 |
| Maximum Tensile Load - SS (N) | 660 | |
| Min. bend radius installed (mm) | 30 | IEC 60794-1-2 E11 |
| Min. bend radius uninstalled (mm) | 60 | |
| Storage Temperature | -20 ℃ to + 70 ℃ | IEC 60794-1-2 F1 |
| Operating Temperature | -20 ℃ to + 70 ℃ | |
| 產品型號 | 產品說明 | Cable Type | Fiber Count | Fiber Type | 價格(NTD) | 產品數量 | |
|---|---|---|---|---|---|---|---|
| 0 | FC901LBK | 1C Flat Type Optical Drop Cable | NSS | 1 Fiber | ITU-T G652D | - | |
| 1 | FCA101LBK | 1C Flat Type Optical Drop Cable | NSS | 1 Fiber | ITU-T G657A1 | - | |
| 2 | FC901LBK-S | 1C Flat Type Optical Drop Cable | SS | 1 Fiber | ITU-T G652D | - | |
| 3 | FCA101LBK-S | 1C Flat Type Optical Drop Cable | SS | 1 Fiber | ITU-T G657A1 | - | |
| 4 | FC902LBK | 2C Flat Type Optical Drop Cable | NSS | 2 Fibers | ITU-T G652D | - | |
| 5 | FCA102LBK | 2C Flat Type Optical Drop Cable | NSS | 2 Fibers | ITU-T G657A1 | - | |
| 6 | FC902LBK-S | 2C Flat Type Optical Drop Cable | SS | 2 Fibers | ITU-T G652D | - | |
| 7 | FCA102LBK-S | 2C Flat Type Optical Drop Cable | SS | 2 Fibers | ITU-T G657A1 | - |
