24C EZ-T (Easy Through) Fiber Optical Cables
24C EZ-T (Easy Through) Fiber Optical Cables
產品名稱 : 24C EZ-T (Easy Through) Fiber Optical Cables
產品說明 :
Features
● Smaller cable OD for 24 fiber count with OD 5.0mm
● Good anti-bending performance for many 90° routing
● Higher compress load ability up to 100kg for 24C
● Rugged design in all dielectric cable structure with strength up to 300N
● Total fiber protection to prevent the fiber damage and breakages
● Use the durable “Box Pack” same as the copper LAN cable
產品規格
More detail products information please contact with our services center. E-mail: unicehq@unice.com.tw
Fiber Coloring Sequence
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 |
| Blue | Orange | Green | Brown | Gray | White | Red | Black | Yellow | Violet | Pink | Aqua |

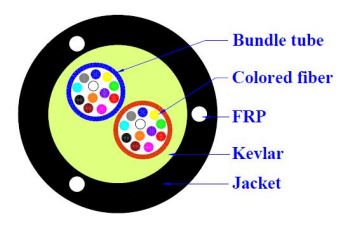

Cable Specification
| Fiber Count | Strength Member | FRP Diameter (mm) | Inner Tube Count / Color | Cable Outside Diameter (mm) | Cable Nominal Weight (kg/km) |
| 24 Fibers | FRP + Kevlar | 0.4 ± 0.05 | 2 / Blue,Orange | 5.0 ± 0.20 | 23 |
| Jacket Material | Low Smoke Zero Halogen (IEC-60332-1-2) | ||||
| Max. Attenuation | 0.4 dB/km @1310 nm | ||||
| 0.3 dB/km @1550 nm | |||||
| Cable Color | Black | ||||
| Marcrobend Performance | Turns / Mandrel OD (mm) | ITU-T G657 A1 | ITU-T G657 A2 | ||
| Loss @ (1550/1625) nm | 10 turns / 30mm | ＜ 0.25/1.0 dB | ＜ 0.03 /0.1 dB | ||
| 1 turn / 20mm | ＜ 0.75/1.5 dB | ＜ 0.1 /0.2 dB | |||
| 1 turn / 15mm | NA | ＜ 0.5 /1.0 dB | |||
Mechanical Properties
| Standard | ||
| Maximum Tensile Load - Loaded (N) | 300 N | IEC 60794-1-2 E1 |
| Maximum Tensile Load - Unloaded (N) | 200 N | |
| Min. bend radius installed (mm) | 10 x cable O.D. | IEC 60794-1-2 E11 |
| Min. bend radius long term (mm) | 5 x cable O.D. | |
| Maximum Crush Resistance | 100kg/100mm | IEC 60794-1-2 E3 |
| Storage Temperature | -20 ℃ to + 70 ℃ | IEC 60794-1-2 F1 |
| Operating Temperature | -20 ℃ to + 70 ℃ | |
| 產品型號 | 產品說明 | Fiber Count | Fiber Type | 價格(NTD) | 產品數量 | |
|---|---|---|---|---|---|---|
| 0 | E29024I0LBK0 | 24C EZ-T Optical Cable | 24 Fibers | ITU-T G652D | - | |
| 1 | E29124I0LBK0 | 24C EZ-T Optical Cable | 24 Fibers | ITU-T G657 A1 | - | |
| 2 | E29224I0LBK0 | 24C EZ-T Optical Cable | 24 Fibers | ITU-T G657 A2 | - |
