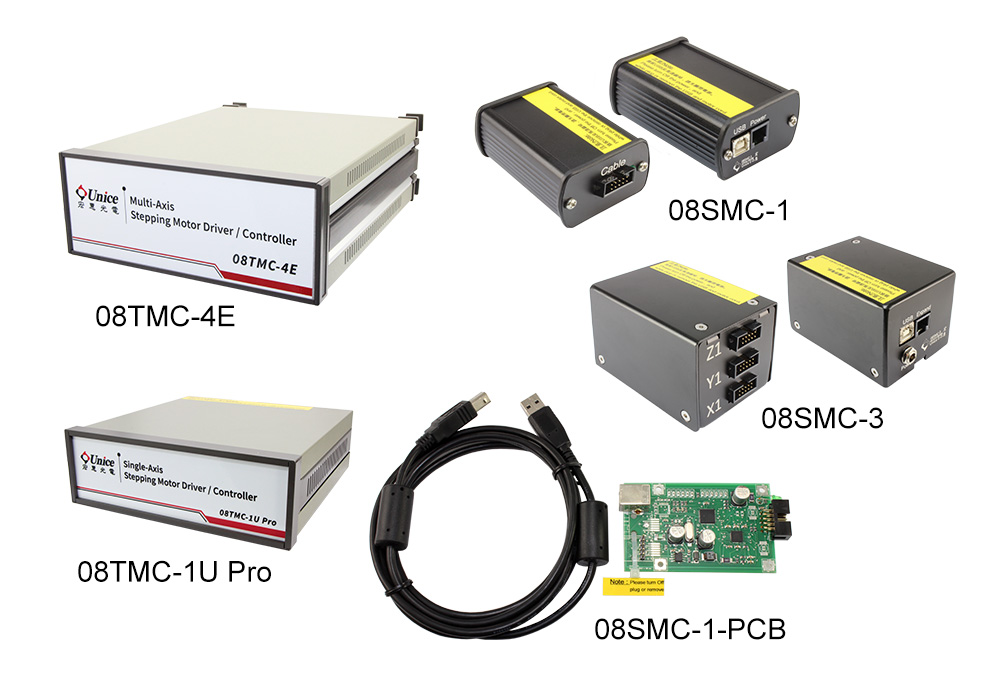

產品名稱 : 驅動器和控制器
產品說明 :
● Power Requirement: 100-240AC/50-60Hz.
● Smart and Convenience Operation Software Included.
產品規格
| Image |  |
 |
 |
 |
 |
 |
|---|---|---|---|---|---|---|
| Model | 08TMC-1U | 08TMC-2U | 08TMC-4E | 08SMC-1 | 08SMC-3 | 08SMC-1-B |
| Axis Ports | 1 Axis | 2 Axis | 4 Axis | 1 Axis | 3 Axis | 1 Axis |
| Motor Type | 2-Phase Unipolar Stepper Motor | 2-Phase 6 Leads Unipolar Stepper motor | 2-Phase 4 Leads Bipolar Stepper motor | 2-Phase 4 Leads Bipolar Stepper motor | 2-Phase 4 Leads Bipolar Stepper motor | 2-Phase 4 Leads Bipolar Stepper motor |
| Communication Interface | USB | USB | Ethernet (RJ45) | USB | USB | USB |
| Resolution | 3200 microsteps / resolution | 3200 microsteps / resolution | 51200 microsteps / resolution | 180 microsteps / resolution | 180 microsteps / resolution | 180 microsteps / resolution |
| Connector Type | D-Sub (DE-15) | D-Sub (DE-15) | D-Sub (DE-15) | 10-pin IDC | 10-pin IDC | 10-pin IDC |
| Dimension (WxDxH) | 200x66x205mm | 255x331x110mm | 255x331x110mm | 60x90x35mm | 64x94x58mm | 52x90x15mm |
| Supports | 08MGR-6050M 08MGR-6050 08MFW-6M-B 08MFW-6-B 08MLS-025M 08MLS-025 08MRA Series 08MRX Series |
08UMT Series 08HMT Series 08PMT Series 08MRA Series 08MRX Series |
08UMT Series 08HMT Series 08PMT Series 08MRA Series 08MRX Series |
08SMA Series 08PMR Series 08IDM Series |
08SMA Series 08PMR Series 08IDM Series |
08SMA Series 08PMR Series 08IDM Series |
