產品名稱 : 奈米級移動平台
產品說明 :
06FAS-Series
● Each axis linear stage is integrated with crossed-roller bearing.
● Cross-roller bearing design for great loads while maintaining accuracy and stability purpose.
● Rails in contact with crossed-roller bearing are made of polished carbon steel in order to ensure long lasting precision and smoothness.
● The stages are spring loaded against the drive micrometer for backlash free motion.
● Knob screws (except Y axis) on the side along each axis provides fixed function for desired position is reached.
產品規格
| Model |  |
 |
|---|---|---|
| Metric | 06FAS-3LNM | 06FAS-3RNM |
| English | 06FAS-3LN | 06FTS-3RN |
| Material | Aluminum | Aluminum |
| Travel Range | Coarse: 8mm Fine: 300um |
Coarse: 8mm Fine: 300um |

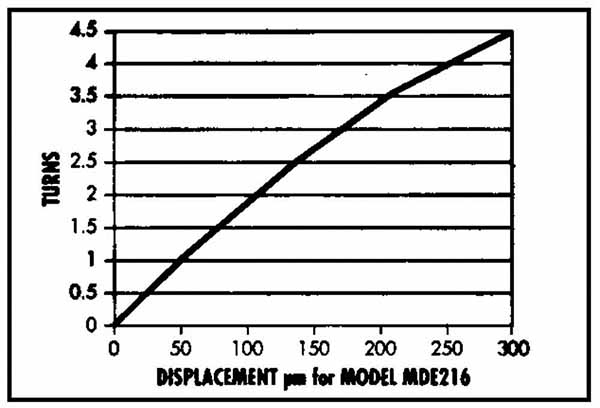

| Resolution | Coarse: 1um Fine: 20nm ( No Linear) |
Coarse: 1um Fine: 20nm ( No Linear) |
| Type | Left Handed | Right Handed |
| Actuators |  |
|
| 產品型號 | 產品說明 | 價格(NTD) | 產品數量 | |
|---|---|---|---|---|
| 0 | 06FAS-3LNM | XYZ軸交叉滾柱培林奈米級移動平台 - 20nm奈米卡頭 | $69,000 | |
| 1 | 06FAS-3RNM | XYZ軸交叉滾柱培林奈米級移動平台 - 20nm奈米卡頭 | $69,000 | |
| 2 | 06FAS-3LN | XYZ軸交叉滾柱培林奈米級移動平台 - 20nm奈米卡頭 | $69,000 | |
| 3 | 06FAS-3RN | XYZ軸交叉滾柱培林奈米級移動平台 - 20nm奈米卡頭 | $69,000 |
