UA6002MF

UA6002MF

產品型號：UA6002MF
產品說明：

價格(NTD)：$0

產品說明

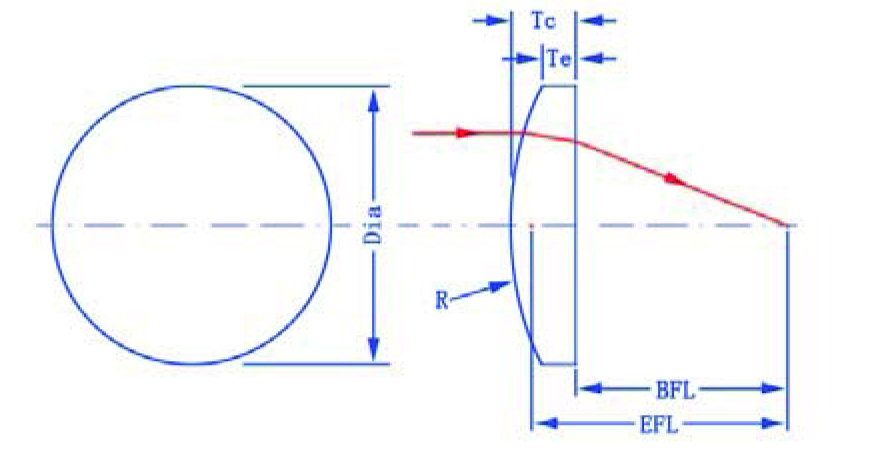

Specification

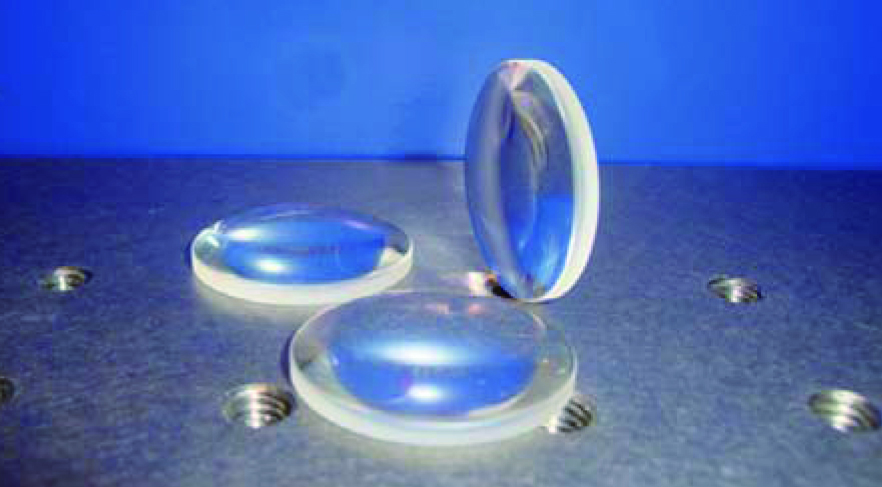

Material		MgF_{2 (Magnesium Fluoride)}
Diameter (Ø)		25.4mm
Focal Length (EFL)	200nm	44.64mm
	486nm	49.68mm
	633nm	50.1mm
	2.0μm	51.35mm
Back Focal Length (BFL)		39.79mm
Radius of Curvature (R)		18.89mm
Center Thickness (Tc)		6.9mm
Edge Thickness (Te)		2mm
AR Coating		Uncoated
