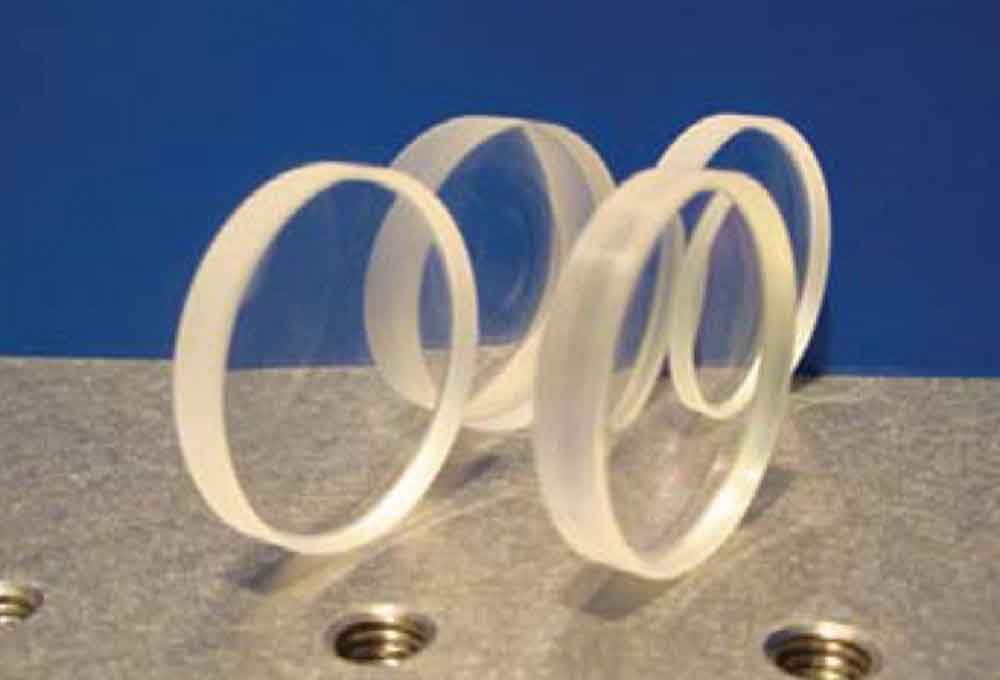

產品名稱 : Commercial Grade N-BK7 PCC Lenses - AR@ 1050nm ~ 1580nm
產品說明 :

產品規格
Material N-BK7
Design Wavelength 632.8nm
Focal Length Tolerance ±1%
Diameter Tolerance +0.0/-0.1mm
Thickness Tolerance ±0.1mm
Surface Accuracy λ/4@632.8nm
Surface Quality 40-20
Centration <3 arc min
Clear Aperture >90%
Bevelling <0.2x45∘
AR Coating 1050nm ~ 1580nm

產品型號 產品說明 價格(NTD) 產品數量
0 UC1035K-C N-BK7 Plano-Concave Lenses, Ø6mm, EFL: -18mm, AR Coating 1050nm ~ 1580nm $1,035
1 UC1975K-C N-BK7 Plano-Concave Lenses, Ø6mm, EFL: -24mm, AR Coating 1050nm ~ 1580nm $1,035
2 UC1906K-C N-BK7 Plano-Concave Lenses, Ø9mm, EFL: -27mm, AR Coating 1050nm ~ 1580nm $965
3 UC1054K-C N-BK7 Plano-Concave Lenses, Ø12.7mm, EFL: -25mm, AR Coating 1050nm ~ 1580nm $885
4 UC1060K-C N-BK7 Plano-Concave Lenses, Ø12.7mm, EFL: -30mm, AR Coating 1050nm ~ 1580nm $865
5 UC1439K-C N-BK7 Plano-Concave Lenses, Ø12.7mm, EFL: -50mm, AR Coating 1050nm ~ 1580nm $900
6 UC1259K-C N-BK7 Plano-Concave Lenses, Ø25mm, EFL: -50mm, AR Coating 1050nm ~ 1580nm -
7 UC1258K-C N-BK7 Plano-Concave Lenses, Ø25mm, EFL: -75mm, AR Coating 1050nm ~ 1580nm -
8 UC1254K-C N-BK7 Plano-Concave Lenses, Ø25mm, EFL: -100mm, AR Coating 1050nm ~ 1580nm -
9 UC1715K-C N-BK7 Plano-Concave Lenses, Ø25.4mm, EFL: -50mm, AR Coating 1050nm ~ 1580nm $950
10 UC1582K-C N-BK7 Plano-Concave Lenses, Ø25.4mm, EFL: -75mm, AR Coating 1050nm ~ 1580nm $950
11 UC1120K-C N-BK7 Plano-Concave Lenses, Ø25.4mm, EFL: -100mm, AR Coating 1050nm ~ 1580nm $950
12 UC1315K-C N-BK7 Plano-Concave Lenses, Ø50.8mm, EFL: -75mm, AR Coating 1050nm ~ 1580nm $1,400
13 UC1093K-C N-BK7 Plano-Concave Lenses, Ø50.8mm, EFL: -100mm, AR Coating 1050nm ~ 1580nm $1,250
14 UC1611K-C N-BK7 Plano-Concave Lenses, Ø50.8mm, EFL: -150mm, AR Coating 1050nm ~ 1580nm $1,215
