Ø25.4mm Lenses, EFL. 25.4 ~ 1000mm
Ø25.4mm Lenses, EFL. 25.4 ~ 1000mm
產品名稱 : Ø25.4mm Lenses, EFL. 25.4 ~ 1000mm
產品說明 :
產品規格
| Material | N-BK7 |
| Design Wavelength | 632.8nm |
| Focal Length Tolerance | ±1% |
| Diameter Tolerance | +0.0/-0.1mm |
| Thickness Tolerance | ±0.1mm |
| Surface Accuracy | λ/4@632.8nm |
| Surface Quality | 40-20 |
| Centration | <3 arc min |
| Clear Aperture | >90% |
| Bevelling | <0.2x45∘ |

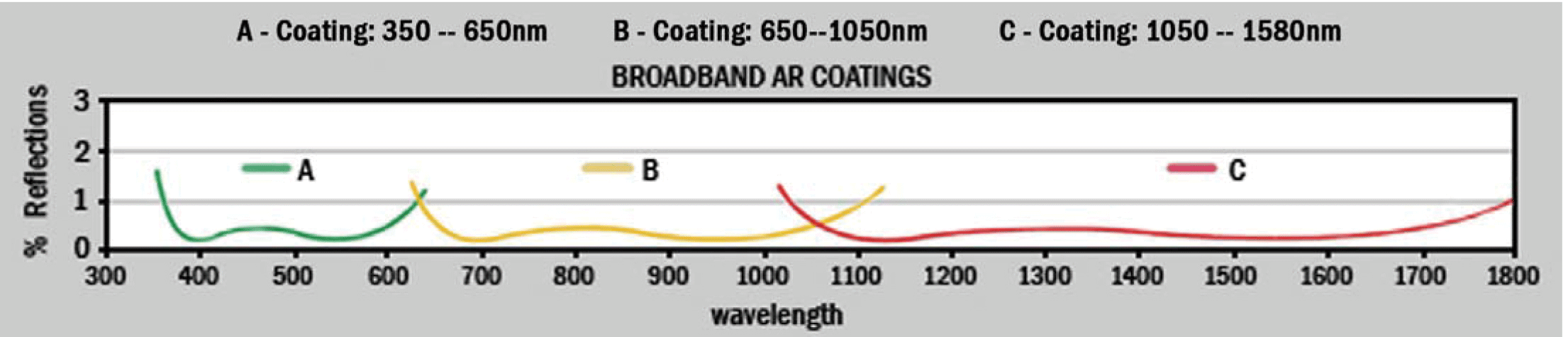

| AR Coating | 1050nm ~ 1580nm |
| 產品型號 | 產品說明 | 價格(NTD) | 產品數量 | |
|---|---|---|---|---|
| 0 | UB1761K-C | N-BK7 Bi-Convex Lenses, Ø25.4mm, EFL:25.4mm, AR Coating 1050nm ~ 1580nm | $1,135 | |
| 1 | UB1757K-C | N-BK7 Bi-Convex Lenses, Ø25.4mm, EFL:30mm, AR Coating 1050nm ~ 1580nm | $1,115 | |
| 2 | UB1811K-C | N-BK7 Bi-Convex Lenses, Ø25.4mm, EFL:35mm, AR Coating 1050nm ~ 1580nm | $1,100 | |
| 3 | UB1027K-C | N-BK7 Bi-Convex Lenses, Ø25.4mm, EFL:40mm, AR Coating 1050nm ~ 1580nm | $1,085 | |
| 4 | UB1471K-C | N-BK7 Bi-Convex Lenses, Ø25.4mm, EFL:50mm, AR Coating 1050nm ~ 1580nm | $1,065 | |
| 5 | UB1596K-C | N-BK7 Bi-Convex Lenses, Ø25.4mm, EFL:60mm, AR Coating 1050nm ~ 1580nm | $1,050 | |
| 6 | UB1901K-C | N-BK7 Bi-Convex Lenses, Ø25.4mm, EFL:75mm, AR Coating 1050nm ~ 1580nm | $1,050 | |
| 7 | UB1676K-C | N-BK7 Bi-Convex Lenses, Ø25.4mm, EFL:100mm, AR Coating 1050nm ~ 1580nm | $1,035 | |
| 8 | UB1904K-C | N-BK7 Bi-Convex Lenses, Ø25.4mm, EFL:125mm, AR Coating 1050nm ~ 1580nm | $1,035 | |
| 9 | UB1437K-C | N-BK7 Bi-Convex Lenses, Ø25.4mm, EFL:150mm, AR Coating 1050nm ~ 1580nm | $1,015 | |
| 10 | UB1294K-C | N-BK7 Bi-Convex Lenses, Ø25.4mm, EFL:175mm, AR Coating 1050nm ~ 1580nm | $1,000 | |
| 11 | UB1945K-C | N-BK7 Bi-Convex Lenses, Ø25.4mm, EFL:200mm, AR Coating 1050nm ~ 1580nm | $1,000 | |
| 12 | UB1056K-C | N-BK7 Bi-Convex Lenses, Ø25.4mm, EFL:250mm, AR Coating 1050nm ~ 1580nm | $1,000 | |
| 13 | UB1779K-C | N-BK7 Bi-Convex Lenses, Ø25.4mm, EFL:300mm, AR Coating 1050nm ~ 1580nm | $1,000 | |
| 14 | UB1391K-C | N-BK7 Bi-Convex Lenses, Ø25.4mm, EFL:400mm, AR Coating 1050nm ~ 1580nm | $1,000 | |
| 15 | UB1869K-C | N-BK7 Bi-Convex Lenses, Ø25.4mm, EFL:500mm, AR Coating 1050nm ~ 1580nm | $1,000 | |
| 16 | UB1475K-C | N-BK7 Bi-Convex Lenses, Ø25.4mm, EFL:750mm, AR Coating 1050nm ~ 1580nm | $1,000 | |
| 17 | UB1409K-C | N-BK7 Bi-Convex Lenses, Ø25.4mm, EFL:1000mm, AR Coating 1050nm ~ 1580nm | $985 |
