Ø30mm Cube Beamsplitter, Wavelength 442 ~ 1550nm
Ø30mm Cube Beamsplitter, Wavelength 442 ~ 1550nm
產品名稱 : Ø30mm Cube Beamsplitter, Wavelength 442 ~ 1550nm
產品說明 :
These polarizing cube beamsplitters are intended for use with lasers operating at a single wavelength. They are coated to achieve a high extinction ratio between the s and p components. They are manufactured from BK7 prisms which are cemented together and provides an extinction ratio of 1000: 1.
產品規格
| Material | BK7A |
| Surface Flatness | < λ / 4 @ 633 nm |
| Surface Quality | <20/10 |
| Beam Deviation | < 3 arc min |
| Dimension Tolerance | < ± 0.25 mm |
| Extinction Ratio | Tp / Ts > 1000: 1 |
| AR Coating | < 0.25% per face |
| Transmission of p-polarization | > 95% |
| Reflectance of s-polarization | > 99.8% |
| Absorption | Negligible |
| Damage Thresholds | > 0.5 J/cm2, 10 ns |
| Clear Aperture | > 85% of central circular dimension |
| Temperature Range | – 50° C to 80° C |
 |
|

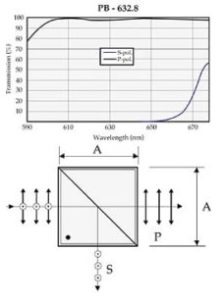

| 產品型號 | 產品說明 | Cube Size A (mm) | Wavelength (nm) | 價格(NTD) | 產品數量 | |
|---|---|---|---|---|---|---|
| 0 | PB-30B-442 | Laser Line Polarizing Cube Beamsplitter | 30 | 442 | - | |
| 1 | PB-30B-488 | Laser Line Polarizing Cube Beamsplitter | 30 | 488 | - | |
| 2 | PB-30B-515 | Laser Line Polarizing Cube Beamsplitter | 30 | 515 | - | |
| 3 | PB-30B-527 | Laser Line Polarizing Cube Beamsplitter | 30 | 527 | - | |
| 4 | PB-30B-532 | Laser Line Polarizing Cube Beamsplitter | 30 | 532 | - | |
| 5 | PB-30B-633 | Laser Line Polarizing Cube Beamsplitter | 30 | 633 | - | |
| 6 | PB-30B-650 | Laser Line Polarizing Cube Beamsplitter | 30 | 650 | - | |
| 7 | PB-30B-670 | Laser Line Polarizing Cube Beamsplitter | 30 | 670 | - | |
| 8 | PB-30B-694 | Laser Line Polarizing Cube Beamsplitter | 30 | 694 | - | |
| 9 | PB-30B-780 | Laser Line Polarizing Cube Beamsplitter | 30 | 780 | - | |
| 10 | PB-30B-830 | Laser Line Polarizing Cube Beamsplitter | 30 | 830 | - | |
| 11 | PB-30B-1053 | Laser Line Polarizing Cube Beamsplitter | 30 | 1053 | - | |
| 12 | PB-30B-1064 | Laser Line Polarizing Cube Beamsplitter | 30 | 1064 | - | |
| 13 | PB-30B-1310 | Laser Line Polarizing Cube Beamsplitter | 30 | 1310 | - | |
| 14 | PB-30B-1319 | Laser Line Polarizing Cube Beamsplitter | 30 | 1319 | - | |
| 15 | PB-30B-1550 | Laser Line Polarizing Cube Beamsplitter | 30 | 1550 | - |
