| Model No |
UNI53372 |
| Type |
Biased |
| Voltage Bias, VBias(V) |
-10 |
| Note |
Normal Response |
| Protective Window |
Borosilicate |
| Operating Temperature (°C) |
-40 to 100 |
| Responsivity @ 970nm (A/W) |
0.65 |
| NEP (W/ Hz½) |
1.1 x 10-14 |
| Detectivity (cmHz½/W) |
1.63 x 1013 @ -10 V, 970nm |
| Active Area (mm²) |
3.2 |

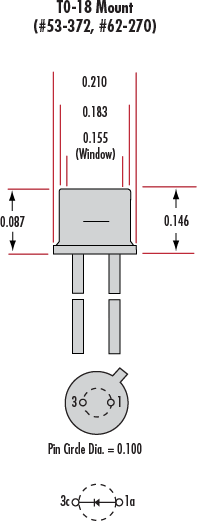

| Package |
TO-18 |
| Dark Current Id (nA) |
0.15 @ 10V |
| Length of Leads (inches) |
1.07 |
| Maximum Breakdown Voltage (V) |
30.00 |
| Outer Diameter (inches) |
0.210 |
| Rise Time (ns) |
10 @ -10 V/50 Ω, 632nm |
| Terminal Capacitance (pF) |
45 @ 0 V; 12 @ 10 V |
| Typical Applications |
High light levels, pulse detectors, AC light measurement |
| RoHS |
Compliant |
