UNI53371

產品型號：UNI53371
產品說明：

價格(NTD)：$0

產品規格產品說明

Model No	UNI53371
Type	Biased
Voltage Bias, VBias(V)	-10
Note	Normal Response
Protective Window	Borosilicate
Operating Temperature (°C)	-40 to 100
Responsivity @ 970nm (A/W)	0.65
NEP (W/ Hz½)	1.4 x 10^-14
Detectivity (cmHz½/W)	1.61 x 10¹³ @ -10 V, 970nm
Active Area (mm²)	5.1

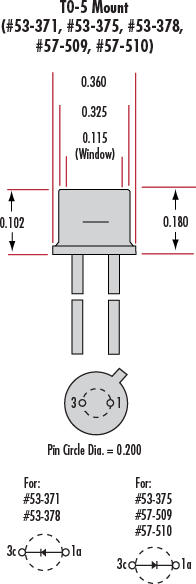

Package	TO-5
Dark Current Id (nA)	0.25 @ 10V
Length of Leads (inches)	1.50
Maximum Breakdown Voltage (V)	30.00
Outer Diameter (inches)	0.360
Rise Time (ns)	12 @ -10 V/50 Ω, 632nm
Terminal Capacitance (pF)	85 @ 0 V; 15 @ 10 V
Typical Applications	High light levels, pulse detectors, AC light measurement
RoHS	Compliant
