| Model No |
UNI59140 |
| Responsivity @ 1550nm (A/W) |
0.9 minimum / 0.95 typical |
| Responsivity @ 1310nm (A/W) |
0.85 minimum / 0.9 typical |
| Capacitance @ Vʀ=5V (pF) |
750 typical / 1800 maximum |
| Capacitance @ Vʀ=-5V (pF) |
750 - 1800 |
| NEP (W/ Hz½) |
4.25 x 10-14 |
| Active Area Diameter (μm) |
3000.00 |

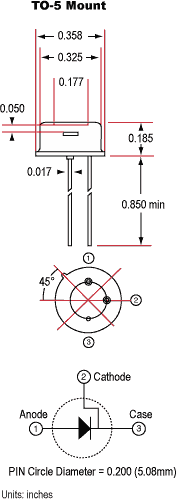

| Package |
TO-5 |
| Maximum Forward Current (mA) |
10.00 |
| Maximum Reverse Current (mA) |
2.00 |
| Maximum Reverse Voltage (V) |
2.00 |
| Shunt Resistance @ V=-10mV (MΩ) |
20.00 |
| RoHS |
Compliant |
