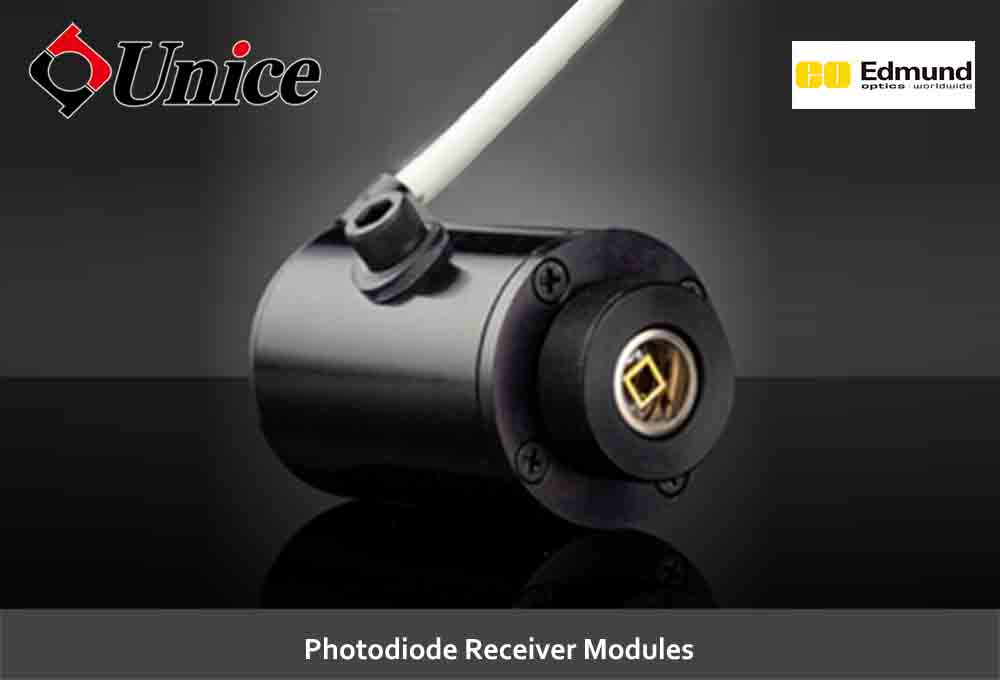

UNI59728

產品型號：UNI59728
產品說明：

價格(NTD)：$0

產品規格產品說明

Model No	UNI59728
Type	PbSe
Spectral Response (nm)	1000 - 4500
Active Area Diameter (mm)	2.0
Frequency (kHz)	DC - 2 Low Gain, DC - 0.5 High Gain
Power Requirement	±9 V DC to ±15 V DC
Responsivity, High Gain @ Peak (V/W)	2 x 10⁶
Responsivity, Low Gain @ Peak (V/W)	2 x 10⁵
Voltage Noise, High Gain (V/Hz1/2)	2 x 10^-6
Voltage Noise, Low Gain (V/Hz1/2)	2 x 10^-5
RoHS	Not Compliant
