| Model No |
110-21051-0002 |
| Wavelength |
1010nm - 1045nm (Wavelength must be specified on order) |
| Clear Aperture |
5 mm |
| Waveplate |
Yes |

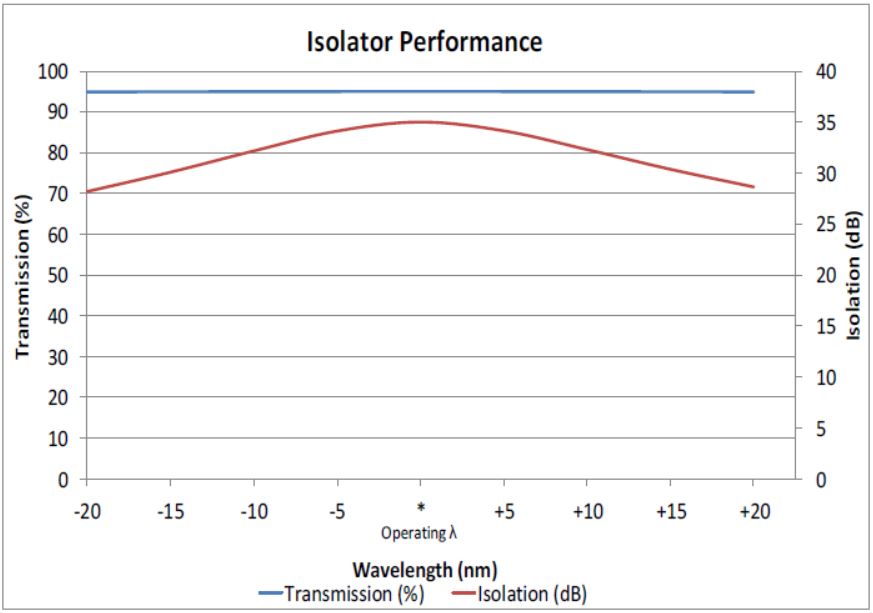

| Peak Transmission |
>95% * |
| Peak Isolation |
>33 dB* ; Typical >37 dB |
| Peak Rotation |
45° ± 0.5° |
| Damage Threshold * |
10 J/cm² at 10 ns ; 1 J/cm² at 8 ps ; 1 MW/cm² CW |
| Storage Temperature |
-40 ℃ to 70 ℃ |

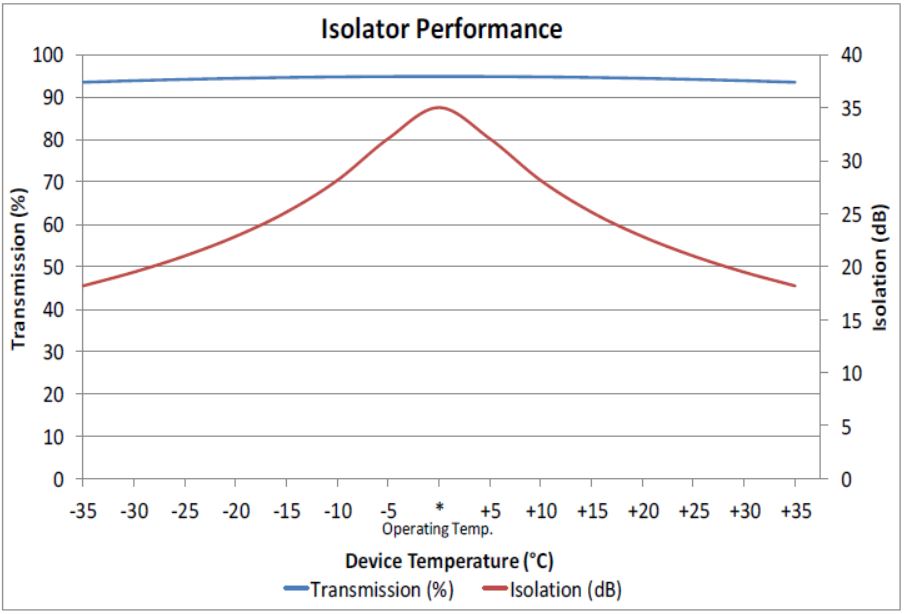

| Factory Tunable Temperature |
10 ℃ to 30 ℃ |
| Isolated Beam Pointing ** |
<5 mrad |
| Input Polarization |
Horizontal / Vertical / 45° (Polarization must be specified on order) |
| Output Polarization |
Horizontal / Vertical / 45° (Polarization must be specified on order) |
| Remark * |
At customer-specified wavelength and temperature |
| Remark ** |
Input cube only |
| Note 1 |
Escape ports should be used if rejected light is >1 W or 0.15 J/cm2 at 10 ns or forward light is >25 W. All stray beams
should be properly terminated. |
| Note 2 |
Product specifications are subject to change. All products are RoHS compliant. |
