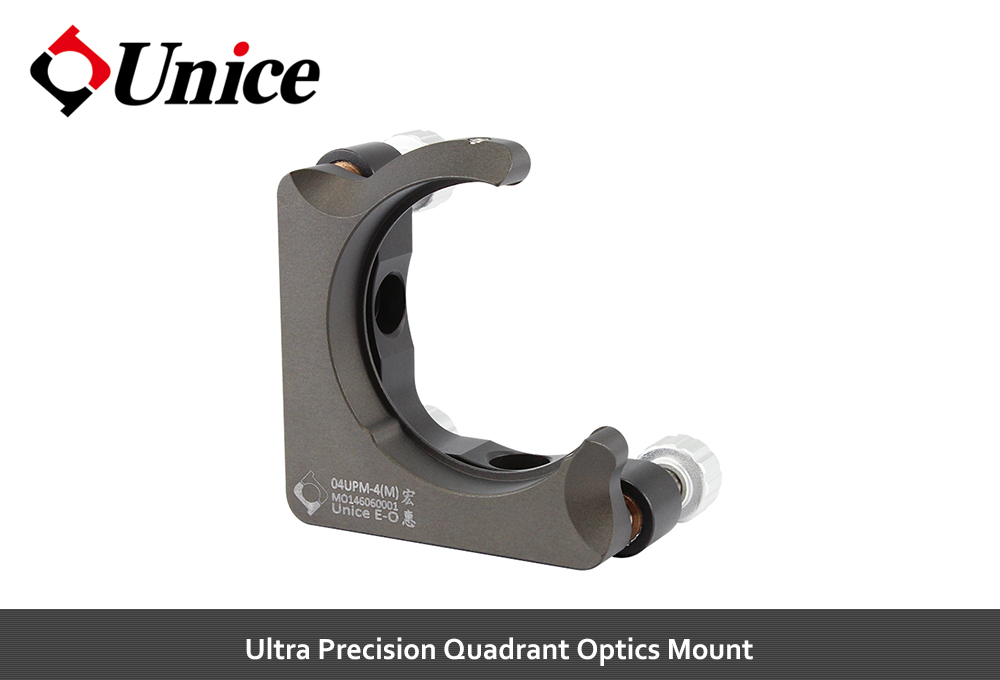

Model：04UPM-4(M)
Description：
Description：
-
● Metric and English both available.
● Aperture for 50.8mm (2") diameter optics.
● C-type designed allows larger incident angle and more flexibility in usage.
● Tilt adjustment range of ± 3.5°.
● Three knob adjustment are provided for Z, θx and θy direction.
● Adjustment motion by M6x0.25mm stainless steel high precision thumbscrews.
● Two M4 (8-32) clearance mounting holes to allow right- or left-handed operation.
● The ball-tipped thumbscrews sit on a flat sapphire seat to ensure high precision,high stability and ultra durability for the adjustment.
● Sapphire seats are used to resist any abrasion from the ball-tipped adjustment thumbscrews.
● Adjustment thumbscrews ball-tipped contact with hardened sapphire seat.
● Material : Aluminum, hardening anodized.
Auto CAD PDF
eDrawing
Auto CAD DXF
STEP
Weight：0.13kg
