900 to 1700nm InGaAs NIR Cameras
900 to 1700nm InGaAs NIR Cameras
產品名稱 : 900 to 1700nm InGaAs NIR Cameras
產品說明 :
Features
• NIR performance
• Resolution:
- VGA: SP1203
- QVGA: SP1201
• Exclusive Ultracal for ISO conforming accuracy
• Available with BeamGage software
產品規格
 |
 |
|
| Model | SP1203 | SP1201 |
|---|---|---|
| Spectral Response | 900 - 1700nm | 900 - 1700nm |
| Application | NIR wavelengths, high resolution, ROI and binning | NIR wavelengths, ROI and binning |
| Beam Size | 150 μm to 7.4 mm | 0.3 to 7.4 mm |
| Number of Elements | 640 x 512 | 320 x 256 |
| Communication | GigE | GigE |
| 產品型號 | 產品說明 | 價格(NTD) | 產品數量 | |
|---|---|---|---|---|

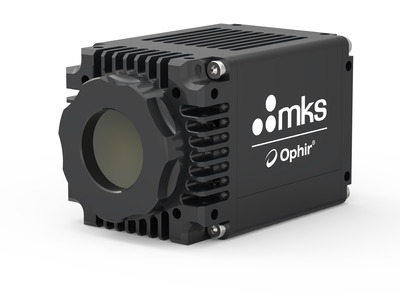

| 0 | BGP-GigE-SP1203 | Beam Profilers InGaAs NIR Response System, BeamGage Professional Software, High Resolution | - | |

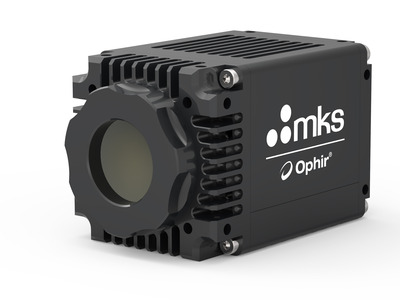

| 1 | BGP-GigE-SP1201 | Laser Beam Profiler, 320x256 px, 60 Hz, 900-1700 nm, GigE | - |
