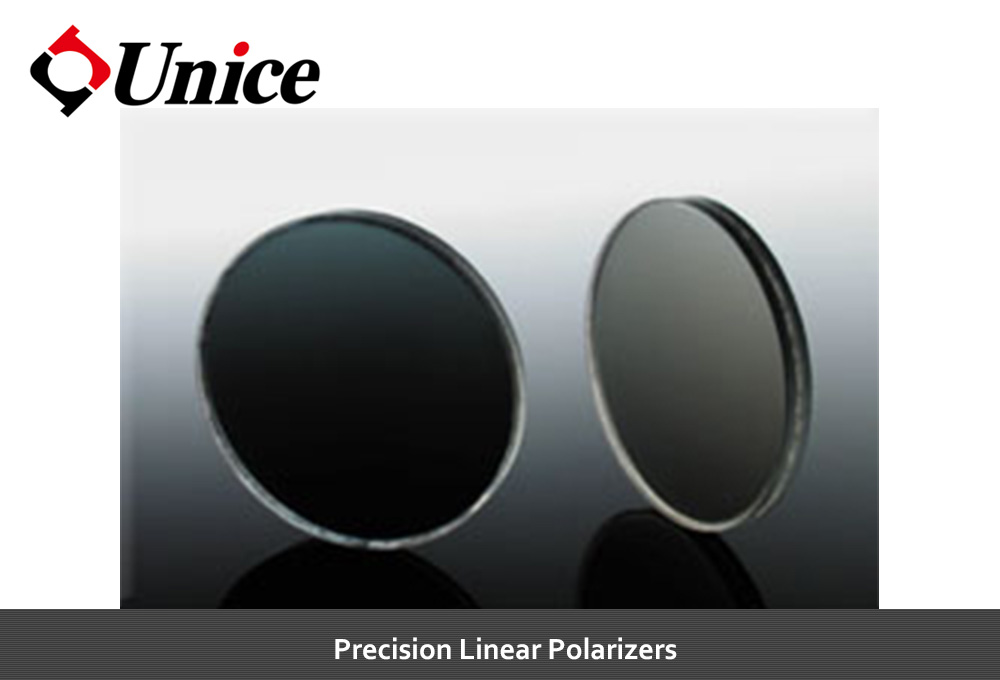

PLP-12.7B-VIS

PLP-12.7B-VIS

產品型號：PLP-12.7B-VIS
產品說明：

價格(NTD)：$0

產品規格

Model No	PLP-12.7B-VIS
Material	BK7A
Diameter D (mm)	12.7
Thickness (mm)	3
Type	Unmounted
Mount OD (mm)	N/A
Mount Thickness (mm)	N/A
Clear Aperature CA (mm)	10
Extinction Ration	> 1000:1
Wavelength (nm)	VIS 420 - 680
Transmitted Wavefront Distortion @ 633 nm	< λ/ 5
Surface Quality	< 40 / 20 (both sides)
Beam Deviation	< 3 arc min
Diameter Tolerance (mm)	< + 0.00 / – 0.20
Thickness Tolerance (mm)	< ± 0.5
Clear Aperture (%)	> 85
