Product name : Fixed-Frequency RF Drivers
Description :
Unice offers a large verity of RF Drivers compatible with our Acousto-Optic components. The following instructions will help you choose and pick the proper fixed frequency driver for your application.

More detail products information please contact with our services center.
E-mail: unicehq@unice.com.tw

Specification

More detail products information please contact with our services center.  E-mail: unicehq@unice.com.tw

Types   Laboratory Version   OEM Version
Model #   FFX-____*-(B1 or B2)-F____**-ER50
Carrier Frequency   ____MHz
Frequency Control   Quartz crystal referenced phase locked loop
Harmonic Content   ≤ - 15 dBc
Frequency Stability   0.0015% minimum after 15 minute warm-up
Output Power **   Power is optimized for peak efficiency with supplied AO device.
Modulation B1 Modulation Input Analog Amplitude; DC-50 MHz
0 - 1 V, 50 Ω input impedance
Modulation B2 Modulation Input TTL Compatible; DC-50 MHz
0 - 5 V, 330 Ω input impedance
Operating Power   90-240 VAC +/-10% 50-60Hz, 55W max.   +24 VDC, 1A
Enclosure   The unit will be packaged in a 7.5 in wide by  3.5 in high by 8.75 in deep instrument case.  The rear panel heat sink increases depth to 10.5 inch max. Size is exclusive of connectors.   OEM Enclosure. The unit will be packaged in a  4 in wide by 1.6 high by 4 in deep instrument  case. Size is exclusive of connectors.
Environmental   Nominal Laboratory conditions: Max ambient temperature - +35 deg C; the unit is not sealed against moisture or condensing humidity. A detachable AC line cord is provided. Max temperature: 0-35 deg C ambient. Mounting flange must be heat sinked. Temperature at the mounting flange must not exceed 60 deg C.
Option ER50   50 dB amplitude extinction ratio for B2 modulations. System extinction ratio will be ~ 43 dB.
* Carrier Frequency is defined by AO Modulator
** Output Power to match the AOM requirement

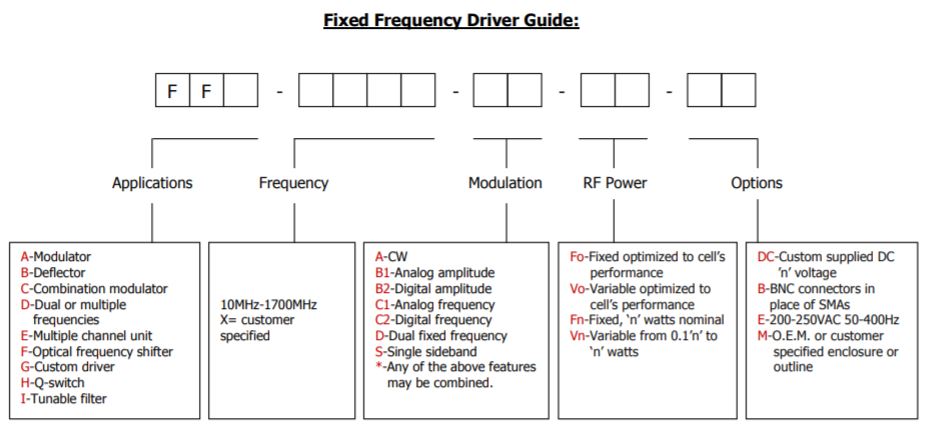

Ordering Information

Unice  Fixed-Frequency RF Drivers
