| Test Condition |
300µs, 300Hz, 9% DC, 25°C |
| Optical Parameters |

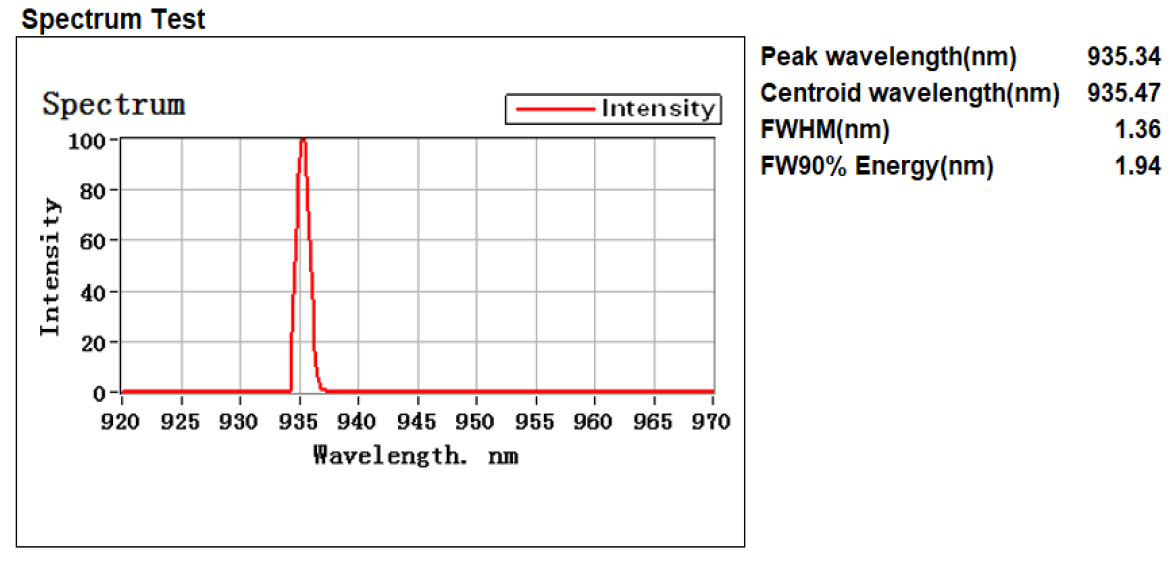

| Centroid Wavelength λ |
nm |
940 |
| Output Power |
W |
>2.5 |
| Output Power Decay |
% /°C |
-0.85 |

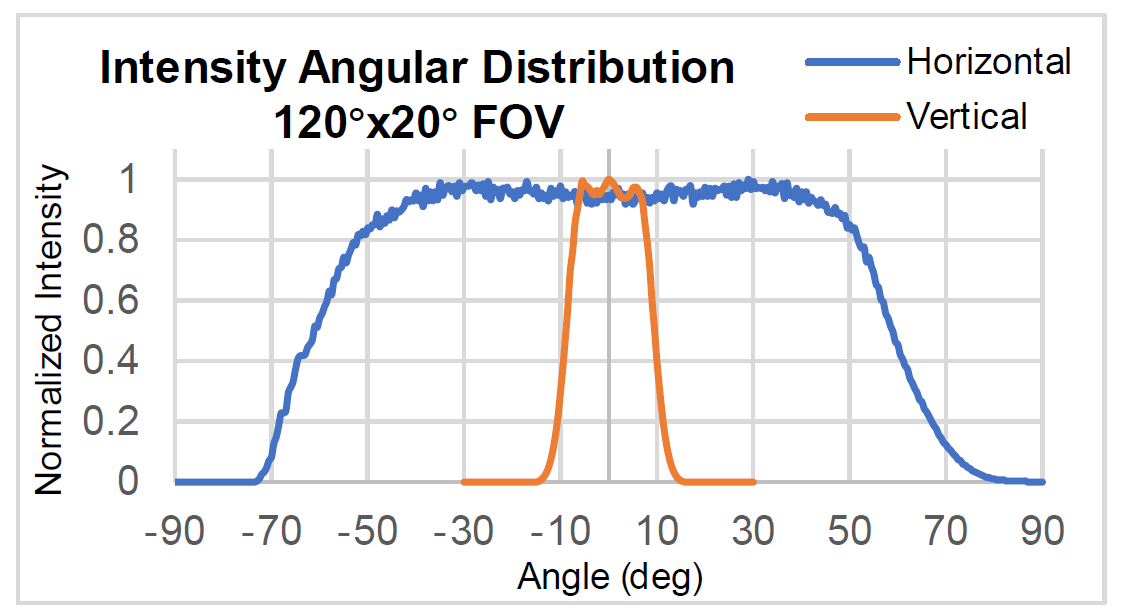

| FOV @ FWHM (Typical Horizontal x Vertical) |
° |
120x20 (Top Hat) |
| Spectral Width FWHM |
nm |
<3 |
| Wavelength Temp. Coefficient |
nm/°C |
0.08 |
| Electrical Parameters |
| Threshold Current Ith |
A |
<0.5 |
| Operating Current Iop |
A |
3.5 |
| Forward voltage Vop |
V |
<2.5 |
| Slope efficiency |
W/A |
>0.8 |
| Power conversion efficiency |
% |
>32 |
| Others |
| Operating Temperature 2 |
°C |
-40~105 |
Remark:

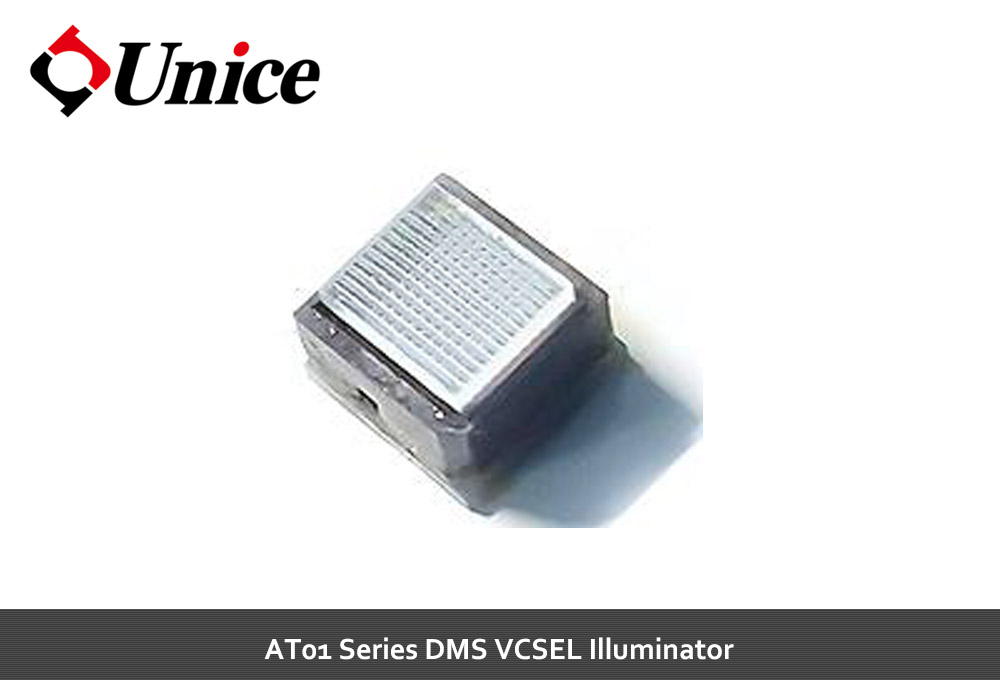

1 FL(abbreviation of Focuslight) - AT01 (structure code) - N (chip power) -- ## (center wavelength) - HxV( FOV)
2 A non condensing environment is required for storage and operation below ambient dew point. |
