High Power Ruggedized Multi Mode Diode Lasers

High Power Ruggedized Multi Mode Diode Lasers - 785nm

Product name : High Power Ruggedized Multi Mode Diode Lasers - 785nm
Description :
Key Performance Features
● Stable High Power Laser Source
● Compact Single Box Design
● Rugged Construction
● VBG Wavelength Stabilized
● Digital & Analog Control Functions
● Free-space or Fibered Outputs

Applications
● Raman Excitation Source
● Security System Illumination
● Power Over Fiber Systems
● Real-time Process Control
● Metrology
● LIDAR

Specification

Operating Specifications
Output power	200 to 1500 mW
Spectral linewidth (typical)	0.1 nm 1.5 cm^-1 50 GHz
Wavelength stability (max)	+/- 5 pm
ASE suppression (typical)	40 dB
Optical power stability (typical)	< 1 % pk to pk
Noise (typical)	N/A
Modulation-digital (typical)	10 kHz
Power adjustability	10 - 100 %
Free Space Optical Specifications
Beam quality (m²typical) vertical	1.2
Beam quality (m² typical) horizontal	N/A
Beam diameter vertical	1 mm
Beam diameter horizontal	5 mm
Beam divergence - vertical	1 deg
Beam divergence - horizontal	5 deg
Polarization ratio	100:1 Linear
Electrical Specifications
DC input (max)	3A @ 5.1V
Warm-up time (typical)	5 sec
Power consumption (typical/max)	9W / 15W
Interface	USB & 10-pin I/O connectors
Environmental Specifications
Ambient temperature^a	-20 – 60 °C
Humidity (non-condensing)	5 – 95 %
Dimensions	89L x 89W x 50H mm
Weight	400 g
^a Must be operated on a heat sink

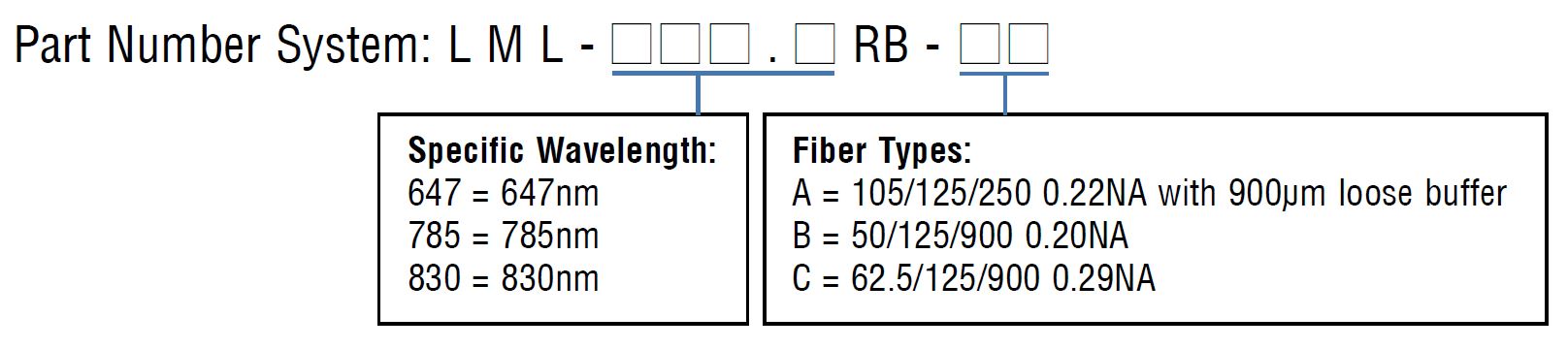

Ordering Information

Part Number	Center Wavelength	Fiber Type	Output Power mW	Connector
LML-785.0RB-01	785 +/- 0.5nm	A	500	SMA905
LML-785.0RB-02	785 +/- 0.5nm	A	1000	FC/APC
LML-785.0RB-03	785 +/- 0.5nm	A	500	FC/APC
LML-785.0RB-04	785 +/- 0.5nm	A	500	FC/PC
LML-785.0RB-05	785 +/- 0.5nm	A	800	FC/APC
LML-785.0RB-06	785 +/- 0.5nm	C	800	FC/APC
LML-785.0RB-FS	785 +/- 0.5nm	-	1500	-
