Single-Module CW Fiber Lasers
Single-Module CW Fiber Lasers
Product name : Single-Module CW Fiber Lasers
Description :
● Up to 6KW Output From CW Single Module Series: Better beam quality vs. multi module lasers and Greatly improved efficiency
● Excellent Material Processing Performance: High speed in thin sheet cutting and Strong capability in thick material processing
● Compact Design, Maintenance Free" Highly integrated system with modular design and Easy maintenance significantly reduce TCO
● Smaller Size with Higher Stability" >60% reduction in volume and Higher flexibility when integrated in to system
● High Level Vertical Integration: All key components are designed and produced in house and Strict quality control, high consistency and reliability
Selection Guide

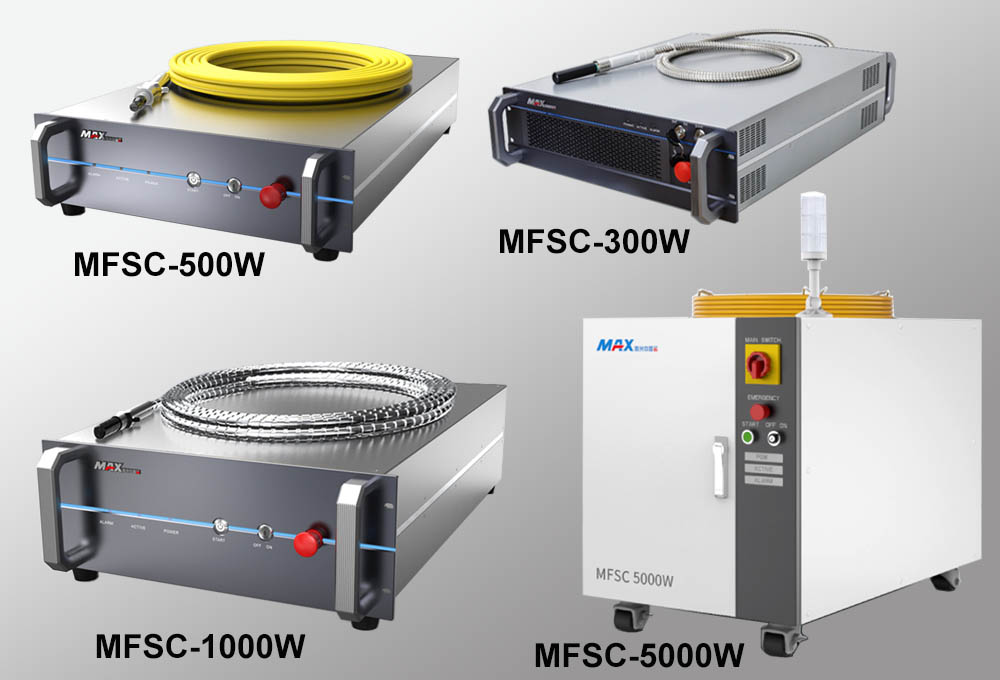

| Models | MFSC-300W | MFSC-500W | MFSC-1000W | MFSC-1500W | MFSC-2000W |
|---|---|---|---|---|---|
| Nominal Power | 300W | 500W | 1000W | 1500W | 2000W |
| Mode of Operation | CW/Modulated | ||||
| Polarization | Random | ||||
| Cooling Method | Air Cooling | Water Cooling | |||
| Dimension | 482×610.4×139.3 mm | 725.9×482.6×154.7 mm | 800×482.6×193.2 mm | 482.6×950×193 mm | |
| Models | MFSC-3000W | MFSC-4000W | MFSC-5000W | MFSC-6000W |
|---|---|---|---|---|
| Nominal Power | 3000W | 4000W | 5000W | 6000W |
| Mode of Operation | CW/Modulated | |||
| Polarization | Random | |||
| Cooling Method | Water Cooling | |||
| Dimension | 640×1173×1102 mm | |||
| Model | Description | Price(USD) | Quantity | |
|---|---|---|---|---|
| 0 | MFSC-300W | 300W High Power Single Module CW Fiber Laser | - | |
| 1 | MFSC-500W | 500W High Power Single Module CW Fiber Laser | - | |
| 2 | MFSC-1000W | 1000W High Power Single Module CW Fiber Laser | - | |
| 3 | MFSC-1500W | 1500W High Power Single Module CW Fiber Laser | - | |
| 4 | MFSC-2000W | 2000W High Power Single Module CW Fiber Laser | - | |
| 5 | MFSC-3000W | 3000W High Power Single Module CW Fiber Laser | - | |
| 6 | MFSC-4000W | 4000W High Power Single Module CW Fiber Laser | - | |
| 7 | MFSC-5000W | 5000W High Power Single Module CW Fiber Laser | - | |
| 8 | MFSC-6000W | 6000W High Power Single Module CW Fiber Laser | - |
