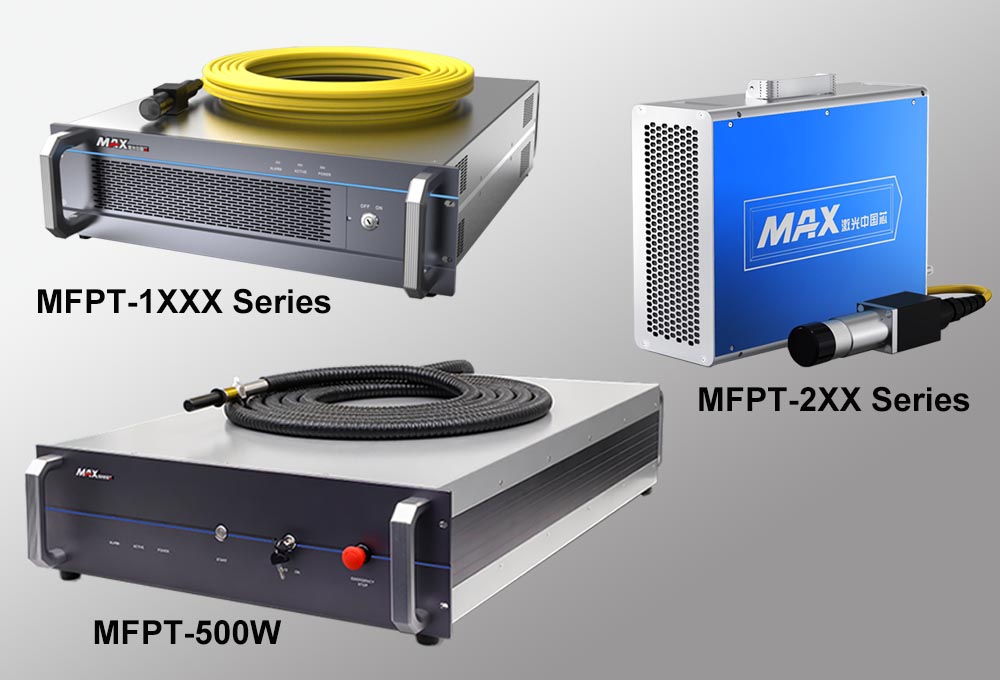

MOPA Pulsed Fiber Lasers
MOPA Pulsed Fiber Lasers
Product name : MOPA Pulsed Fiber Lasers
Description :
● New Generation Optical Path Design: New core technology of fiber gain control
● High Output Power: Greatly improved single pulse energy
● Compact and Rugged Design: Maintenance free Operation
● Wide Application Even with Highly Reflective Material: High performance isolator effectively reduces reflection damage to the laser source and Smoothly marking on aluminum, copper and brass etc.
● High Level Vertical Integration: All key components are designed and produced in house and Strict quality control, high consistency and reliability
Specification
Selection Guide
| Models | MFPT-20H | MFPT-20S | MFPT-30H | MFPT-50H | MFPT-70P |
|---|---|---|---|---|---|
| Nominal Power | 20W | 30W | 50W | 70W | |
| Mode of Operation | Pulsed | ||||
| Pulse Duration | 2~350 ns | 5~200 ns | 5~350 ns | 50~350 ns | |
| Repetition Rate | 1~1000 kHz | 1~2000 kHz | 1~1000 kHz | ||
| Cooling Method | Air Cooling | ||||
| Models | MFPT-100H | MFPT-120P | MFPT-200P | MFPT-500W |
|---|---|---|---|---|
| Nominal Power | 100W | 120W | 200W | 500W |
| Mode of Operation | Pulsed | |||
| Pulse Duration | 10~350 ns | 60~350 ns | 200~350 ns | |
| Repetition Rate | 1~2000 kHz | 1~1000 kHz | 1~400 kHz | |
| Cooling Method | Air Cooling | Water Cooling | ||
| Model | Description | Price(USD) | Quantity | |
|---|---|---|---|---|
| 0 | MFPT-20H | 20W MOPA Pulsed Fiber Laser, Repetition Rate 1-1000 kHz | - | |
| 1 | MFPT-20S | 20W MOPA Pulsed Fiber Laser, Repetition Rate 1-2000 kHz | - | |
| 2 | MFPT-30W | 30W MOPA Pulsed Fiber Laser, Repetition Rate 1-2000 kHz | - | |
| 3 | MFPT-50H | 50W MOPA Pulsed Fiber Laser, Repetition Rate 1-2000 kHz | - | |
| 4 | MFPT-70P | 70W MOPA Pulsed Fiber Laser, Repetition Rate 1-1000 kHz | - | |
| 5 | MFPT-100H | 100W MOPA Pulsed Fiber Laser, Repetition Rate 1-2000 kHz | - | |
| 6 | MFPT-120P | 120W MOPA Pulsed Fiber Laser, Repetition Rate 1-1000 kHz | - | |
| 7 | MFPT-200P | 200W MOPA Pulsed Fiber Laser, Repetition Rate 1-1000 kHz | - | |
| 8 | MFPT-500W | 500W MOPA Pulsed Fiber Laser, Repetition Rate 1-400 kHz | - |
