Juno+ Laser Power & Energy Meter, USB PC Interface, Analog Output

Juno+

Model：Juno+
Description：

Juno+ Datasheet PC Interface Meter Brochure

Price(USD)：$0

Content Software Video

Model	Juno+
Thermal Sensor Compatibility	Yes
Photodiode Sensor Compatibility	Yes
Pyroelectric Sensor Compatibility	Yes
BeamTrack Sensor Compatibility	Yes
Statistics	Yes
Analog Out	Yes
Trigger Input/Output	No
Power Supply	USB bus powered
USB	Yes
Data Transfer Rate	10,000 Hz
On-Board Data Storage	No
Automation Interface	Yes
Labview VI's	Yes
CE Compliance	Yes
UKCA Compliance	Yes
China RoHS Compliance	Yes

PC Software & Drivers

This section describes various ways to interface the Ophir meter to your PC as well as the software options available.

StarLab

The StarLab application together with an Ophir meter turns your PC or laptop into a full-fledged laser power/energy meter. Supports most Ophir laser power/energy sensors. Up to 8 sensors can be displayed at once on one PC. By using the Ophir COM Object, you can control the device from your own application. Supports the Ariel, Centauri, StarBright, StarLite, Juno, Juno+, Nova II, Vega, Pulsar-1/2/4, Quasar, EA-1 and Ariel devices.

LabVIEW

Library supplied for a complete measurement interface with most of our USB speaking devices (Centauri, StarBright, StarLite, Juno, Juno+, Nova-II, Pulsar, Vega). Makes use of our new COM object.

Firmware - Juno

Embedded Software for Juno+ Interface
Use StarLab to upgrade the firmware of your device. Follow the step-by-step instructions (see link above).

Smart Sensor to Juno+to PC

Ophir’s basic smart compact Juno+ module turns your PC or laptop into a full-fledged Ophir laser power/energy meter.
Just install the software, plug the sensor into the Juno+ module and connect the Juno+ with a standard USB cable to the PC USB port.
You can connect several Juno+ modules to the PC.

Software - StarLab

StarLab turns your PC into a laser power/energy multi-channel station

Extensive Graphic Display of Data
• Lֺֺine Plot, Histogram, Bar chart, Simulated Analog Needle
• Mֺֺultiple data sets on one graph or separate graphs on the same screen

Advanced Measurement Processing
• Pֺֺower/Energy Density, Scale Factor, Normalize against a reference
• Mֺֺulti-channel comparisons
• Uֺֺser defined mathematical equations: channels A/B, (A-B)/C etc.
• Pֺֺosition & size measurement with BeamTrack sensors

Data Logging for Future Review
• Cֺֺan be displayed graphically or saved in text format
• Eֺֺasily exported to an Excel spreadsheet

Fully supports StarBright, StarLite, Vega, Nova-II, Pulsar, Juno and USBI devices with all standard Ophir sensors

Multiple Sensors displayed together

Functions and Logging

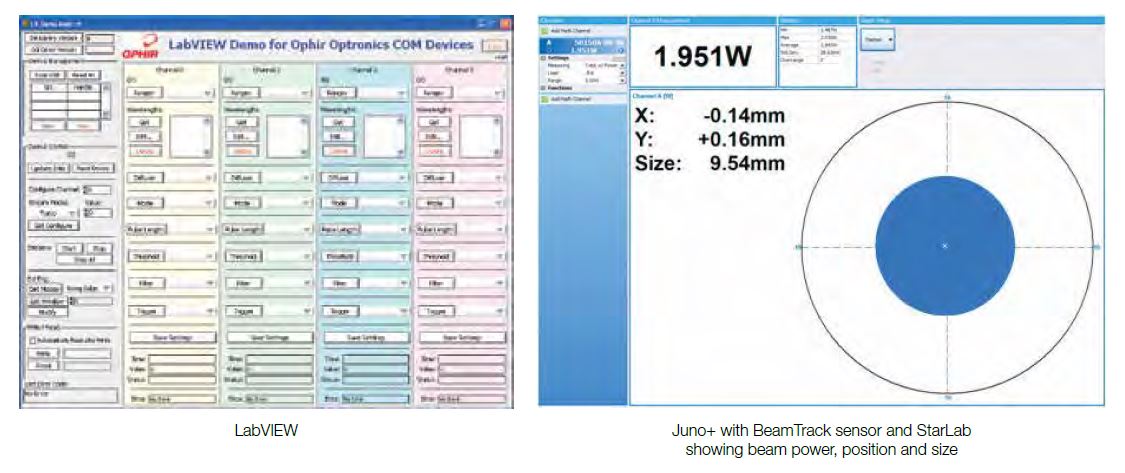

BeamTrack Power/Position/Size Screens

Software - LabVIEW Solutions

Ophir has long recognized the growing LabVIEW community of developers. For over 10 years, we have been providing
LabVIEW libraries for all of our devices. These are full open-source applications that can be used as is or tailored by the LabVIEW programmer to his specific needs.

These starter applications are basic software only that allows the LabVIEW programmer to experiment freely to fully feel
the strength of our devices’ respective command sets. These applications contain VIs (Virtual Instruments) to control the instrument. You can combine VIs to create successively larger and more versatile larger VIs by simply connecting them together. Users can create sophisticated, custom applications in minutes. In most cases, applications can be built and tested even before the instrument even arrives. The versatility of these tools is limitless.
All of our LabVIEW libraries can be downloaded from our web site: www.ophiropt.com

Juno+: A New Virtual Laser Power Meter On Your PC		Laser Measurement PC Interfaces

The new Ophir Juno+ enables you to connect your Ophir “Smart Sensor” to your PC via USB. Your PC then becomes a full-featured laser power meter, either running Ophir’s StarLab software application, or perhaps communicating with your own system via our “COM Object”. Get a glimpse of its capabilities in this overview video.		If all your laser measurement work involves a laptop or a PC, rather than a stand-alone meter, one of Ophir's direct-to-PC interfaces could be an ideal solution. These are full-fledged Laser Power and Energy meters, but instead of having a separate on-board display, the PC becomes your display. In this video you will learn about the range of PC Interfaces available from Ophir.
StarLab 3.0: Introduction and First Steps		StarLab 3.0: Second Steps

This video explains the various items on the StarLab screen, and shows you how to perform basic laser measurements. Part 1 of a series of video segments teaching you how to use StarLab.		Sometimes we want to not only get a reading, but perform additional processing on the reading. This video shows you how to use various functions in StarLab, such as Averaging, Scale Factor, Normalize, Density, etc. Part 2 of a series of video segments teaching you how to use StarLab.
Ophir Laser Measurement Virtual Meters

If all your laser measurement work involves a laptop or a PC, one of Ophir's direct-to-PC virtual meters could be an ideal solution. These are full-fledged Laser Power and Energy meters, and - together with the sensor and Ophir’s powerful StarLab software application - turn your PC into a full-function, multi-channel laser measurement workstation. In this webinar, you will learn about the range of virtual meters and interface options available from Ophir.
