| Model |
SP928-1550 |
| Wavelength |
1440 - 1605nm |
| Active Area |
5.3mm x 7.1mm |
| Beam Sizes |
600μm - 5.3mm |
| Elements |
1928 x 1448 |
| Effective Pixel Pitch |
50µm |
| Dynamic Range |
~30dB |
| Frame Rate at Full Resolution |
13 fps |
| Compatible Light Sources |
CW, Pulsed |
| Sensor Type |
Phosphor-Coated Silicon CCD |
| Interface |
USB 3.0 |
|
Data Sheet
|
BeamMic Software Specification
|
Software - BeamMicTM – Basic Laser Beam Analyzer System
• Hֺֺigh-speed false color beam intensity profile displays in both 2D and 3D
• Oֺֺperates in Windows 7 and Windows 10
• Nֺֺumerical beam profile analysis employs patented advanced calibration algorithms
• Eֺֺxtensive set of ISO quantitative measurements
• IֺֺSO beam width and diameter methods
• Eֺֺnhanced window layout tools to get the most out of the desktopdisplay area
• Pֺֺass/fail testing available on most all measured parameters
• Sֺֺupport for USB SPxxx series cameras
• Sֺֺupports satellite windows on multiple monitors
• Cֺֺontinuous zoom scaling in both 2D and 3D
• Rֺֺesults logging capabilities exportable to Excel
• Iֺֺndustry std data file formats, HDF5 and CSV
• Cֺֺonfigurable Report Generator that allows cut and paste of results, images and settings from .PDF and .XPS file types
• Sֺֺtatistical Analysis of all measured parameters
• Bֺֺoth Drawn and Auto Aperture for isolating beam data
• Iֺֺntegrated automatic Help linked into this .pdf Users Guide
• Aֺֺutomation interface via .NET components
BeamMic is an introductory product for those that do not need all of the features in our award winning beam profiling product, BeamGage. BeamMic includes a simplified set of measurements allowing for basic beam characterization to help improve your system performance without going to a full-featured SPC type system. This is perfect for the operator to do a quick check on the laser system prior to starting their process. BeamMic meets many of our industrial customer’s basic needs at a cost effective price.
The beam’s size, shape, uniformity or approximation to the expected power distribution, can make or break an application. Accurate knowledge of these parameters is essential to the accuracy of any laser-based application. As laser applications push the boundaries of laser performance it is becoming more critical to understand the operating criteria.

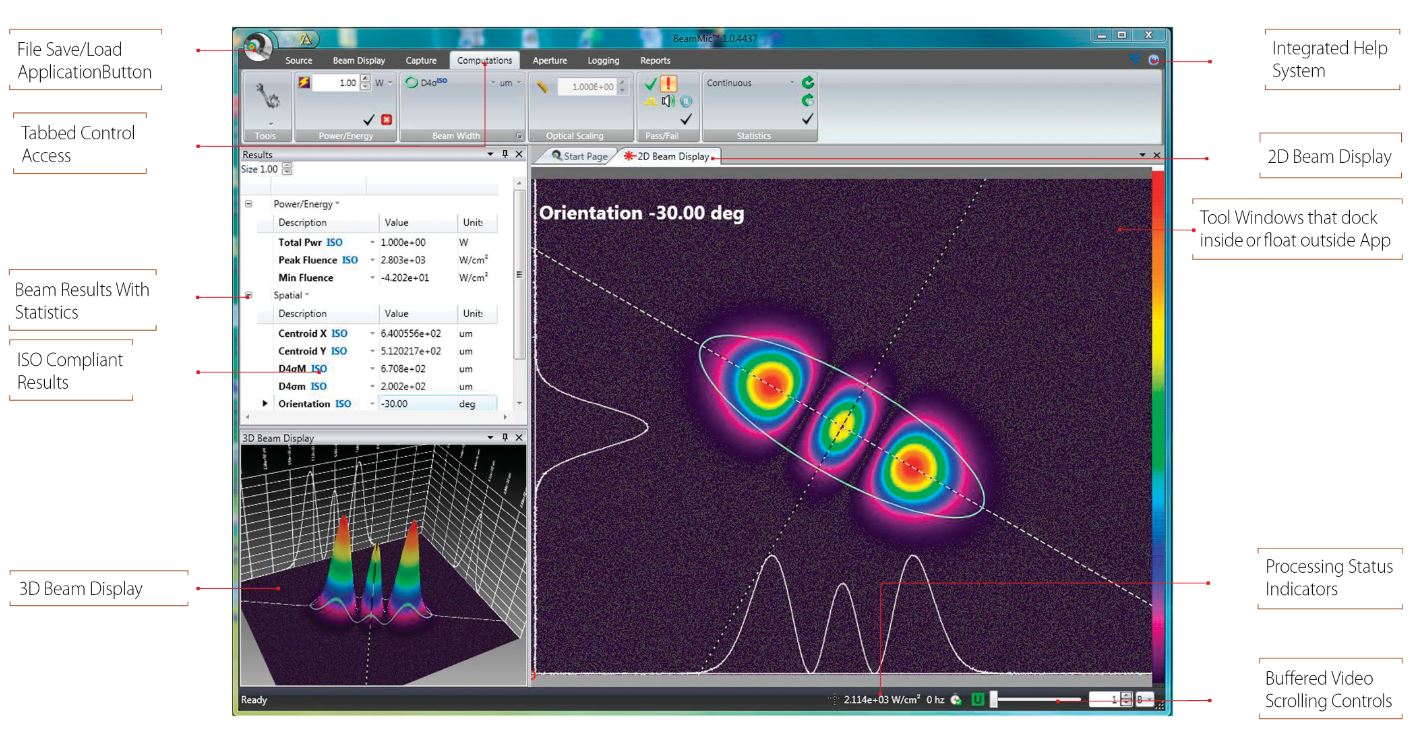

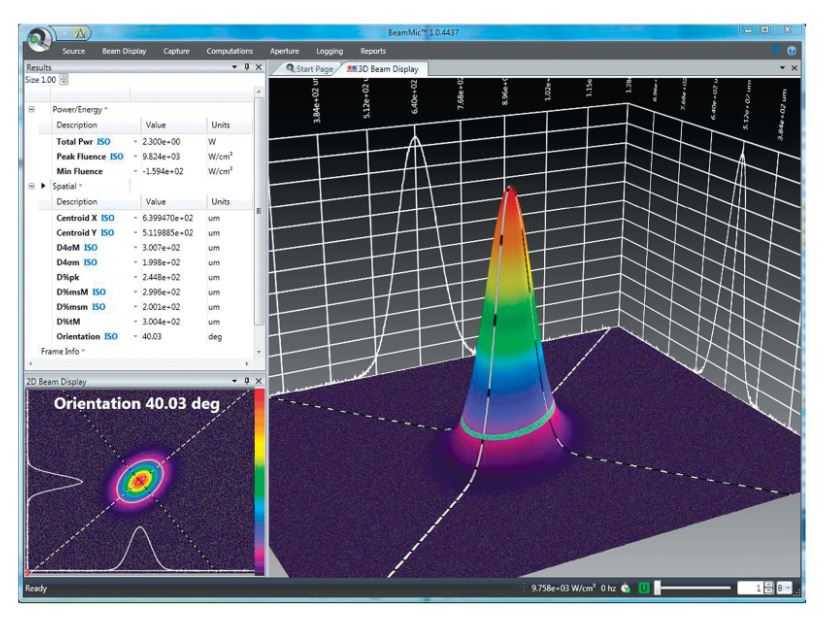

BeamMic Main Display Screen
